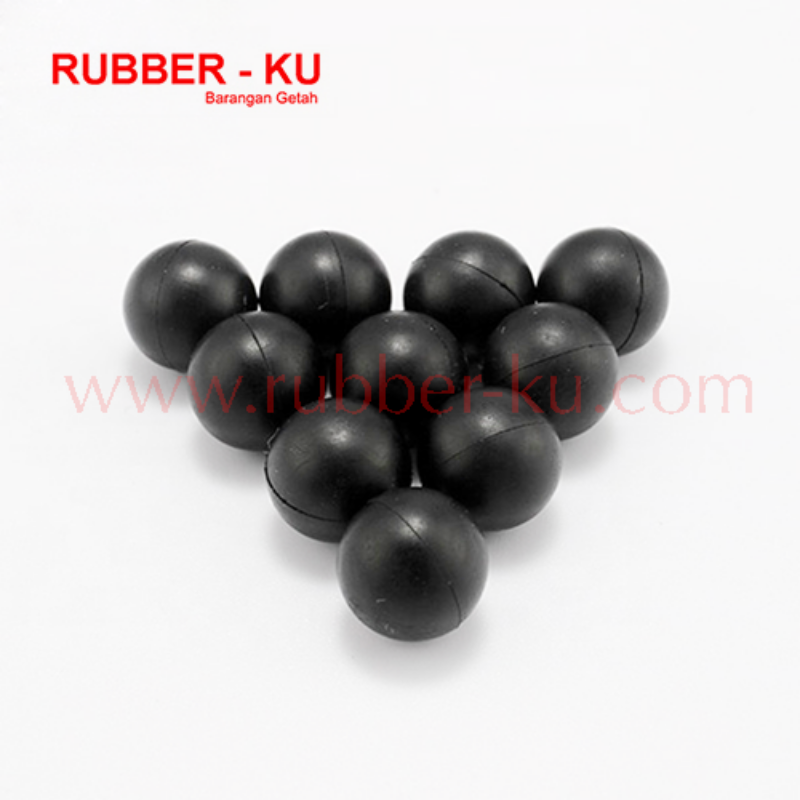

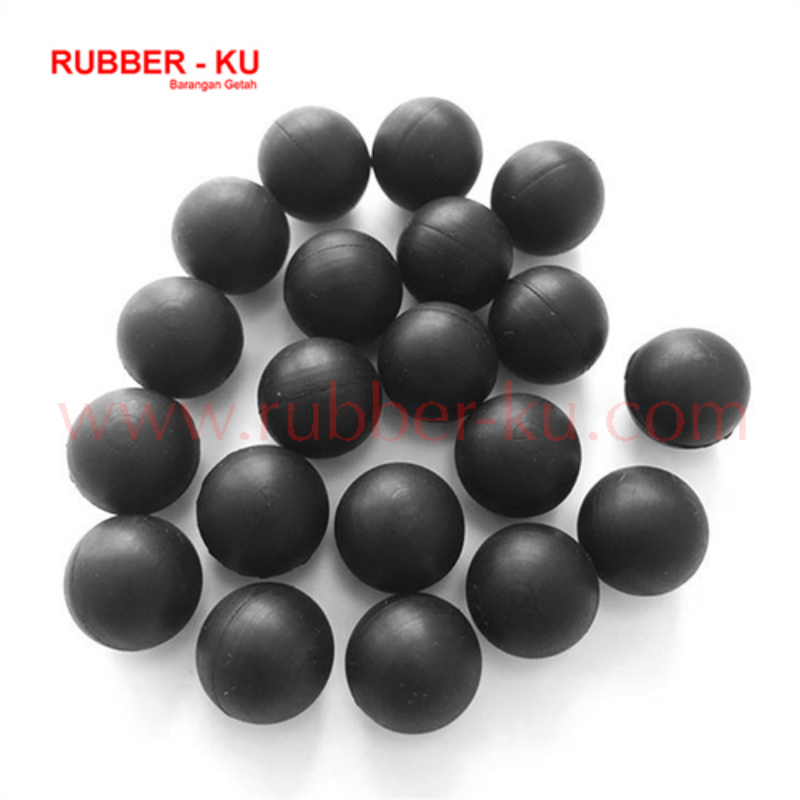

Black Elastic Rubber Ball | Industrial Use Black Rubber Ball Malaysia
RUBBER-KU RUBBER PRODUCTS – Ultra-Precision Industrial Rubber Ball Engineering Leader
RUBBER-KU RUBBER PRODUCTS is firmly established as The Best black Elastic Rubber Ball supplier in Malaysia and The Largest black Elastic Rubber Ball Manufacturer Malaysia, delivering high-performance, precision-engineered elastomer components for critical industrial applications.
As The Highest Quality black Elastic Rubber Ball manufacturer, we emphasize advanced compound formulation, strict process control, and consistent technical performance. Our proven capability positions us as a Market Leader of black Elastic Rubber Ball, trusted across Malaysia’s industrial sectors.
With large-scale production capacity and extensive customization, we are also recognized as The Biggest black Elastic Rubber Ball supplier in Malaysia and The Widest Range of black Elastic Rubber Ball supplier, supporting everything from standard parts to highly engineered OEM solutions.
1. Ultra-Technical Product Overview
The Black Elastic Rubber Ball is a precision-moulded elastomeric sphere designed to operate under dynamic mechanical stress, chemical exposure, pressure variation, and environmental fluctuations.
Core Functional Roles:
- Elastic sealing element in valves and fluid systems
- Dynamic component in flow control mechanisms
- Impact absorber in mechanical systems
- Circulating cleaning media in heat exchangers
- Pressure balancing component in pipelines
Each rubber ball is engineered with optimized polymer chain structure, controlled crosslink density, and high sphericity accuracy to ensure uniform stress distribution and consistent performance.
2. Advanced Polymer Science & Compound Engineering
2.1 Molecular Structure & Crosslink Density Control
- Sulfur vulcanization system (NR, SBR, NBR)
- Peroxide curing system (EPDM for high thermal stability)
- Crosslink density tailored to balance:
- Elasticity vs strength
- Compression set vs resilience
- Flexibility vs durability
Engineering Insight:
- High crosslink density → higher hardness, better chemical resistance
- Low crosslink density → higher elasticity and rebound
2.2 Reinforcement System (Carbon Black Technology)
Black rubber balls are enhanced using carbon black fillers, providing:
- Increased tensile strength
- Improved abrasion resistance
- Enhanced UV and ozone resistance
- Better thermal conductivity
- Longer service life in harsh environments
2.3 Additives & Functional Enhancements
- Antioxidants → prevent thermal degradation
- Antiozonants → protect against ozone cracking
- Processing oils → improve flexibility and processability
- Anti-static additives (optional)
- Flame retardants (optional)
3. Ultra-Detailed Mechanical Engineering Properties
| Property | Performance Range |
|---|---|
| Hardness | 20 – 90 Shore A |
| Tensile Strength | 10 – 25 MPa |
| Elongation at Break | 300% – 600% |
| Tear Strength | 20 – 100 kN/m |
| Rebound Resilience | 40% – 75% |
| Abrasion Loss | <120 – 150 mm³ |
| Density | 1.1 – 1.5 g/cm³ |
Performance Analysis:
- High tensile strength prevents structural failure
- High elongation allows deformation without cracking
- High resilience ensures energy return in dynamic systems
- Low abrasion loss increases lifespan
4. Compression Set & Viscoelastic Behavior
4.1 Compression Set Characteristics
- Test Condition: 70°C / 22–24 hours
- Typical Range: 10% – 25%
Engineering Benefit:
- Maintains sealing pressure over time
- Prevents leakage in static and dynamic systems
4.2 Viscoelastic Performance
- Exhibits both elastic and viscous behavior
- Low hysteresis → reduced energy loss
- High damping capability → vibration absorption
5. Dynamic Load & Fatigue Resistance
- Designed for millions of compression cycles
- High fatigue life under cyclic loading
- Maintains mechanical integrity under:
- Repeated deformation
- Impact stress
- Rolling motion
6. Thermal Engineering & Stability
| Material | Temperature Range |
|---|---|
| NR | -20°C to +80°C |
| SBR | -20°C to +100°C |
| NBR | -30°C to +120°C |
| EPDM | -40°C to +150°C |
| CR | -30°C to +120°C |
Thermal Performance:
- Heat aging resistance (retains properties over time)
- No embrittlement at low temperatures
- Stable elasticity under temperature cycling
7. Chemical Resistance Matrix
| Chemical | Resistance |
|---|---|
| Water | Excellent |
| Steam | Good (EPDM best) |
| Oils & Fuels | Excellent (NBR) |
| Acids | Moderate to Good |
| Alkalis | Good |
| Solvents | Limited (compound dependent) |
8. Dimensional Precision & Geometric Control
8.1 Sphericity & Balance
- Up to 99.8% spherical accuracy
- Uniform mass distribution
- Reduced vibration during operation
8.2 Tolerance Engineering
- Tight mould tolerances
- Controlled shrinkage during curing
- Post-mould dimensional inspection
9. Surface Engineering & Tribology
- Smooth surface → low friction coefficient
- Reduced wear against mating surfaces
- Optional textured finish for grip
- Surface roughness control (Ra optimization)
10. Manufacturing Technology
10.1 Moulding Processes
- Compression moulding → dense, durable structure
- Injection moulding → high precision and consistency
- Transfer moulding → complex geometry capability
10.2 Curing & Post-Curing
- Controlled vulcanization cycles
- Post-curing enhances:
- Chemical resistance
- Thermal stability
- Mechanical strength
11. Quality Assurance & Testing Protocols
Each batch undergoes:
Physical Testing:
- Shore hardness testing
- Tensile strength & elongation testing
- Tear resistance testing
Performance Testing:
- Compression set testing
- Rebound resilience testing
- Abrasion resistance testing
Environmental Testing:
- Heat aging
- Ozone resistance
- Chemical immersion
12. Industrial Application Engineering
12.1 Valve & Flow Systems
- Elastic deformation ensures tight sealing
- Low leakage rate under pressure
12.2 Heat Exchanger Cleaning
- High abrasion resistance
- Maintains shape during circulation
12.3 Oil & Gas Industry
- NBR compound resists fuel and hydrocarbons
- Performs under high pressure
12.4 Water Treatment Systems
- EPDM resists ozone and water exposure
- Long service life in wet conditions
12.5 Industrial Machinery
- Absorbs vibration and shock
- Reduces mechanical wear
13. Performance Advantages Over Alternatives
| Feature | Rubber Ball | Plastic Ball | Metal Ball |
|---|---|---|---|
| Elasticity | Excellent | Low | None |
| Sealing Efficiency | High | Moderate | Low |
| Noise Reduction | Excellent | Poor | Very Poor |
| Chemical Resistance | High | Moderate | Variable |
| Weight | Light | Light | Heavy |
14. Custom Engineering Capabilities
RUBBER-KU provides:
- Custom compound formulation
- Hardness optimization
- Temperature-specific materials
- Chemical-resistant designs
- Custom geometry (holes, hollow, multi-layer)
