Product Description

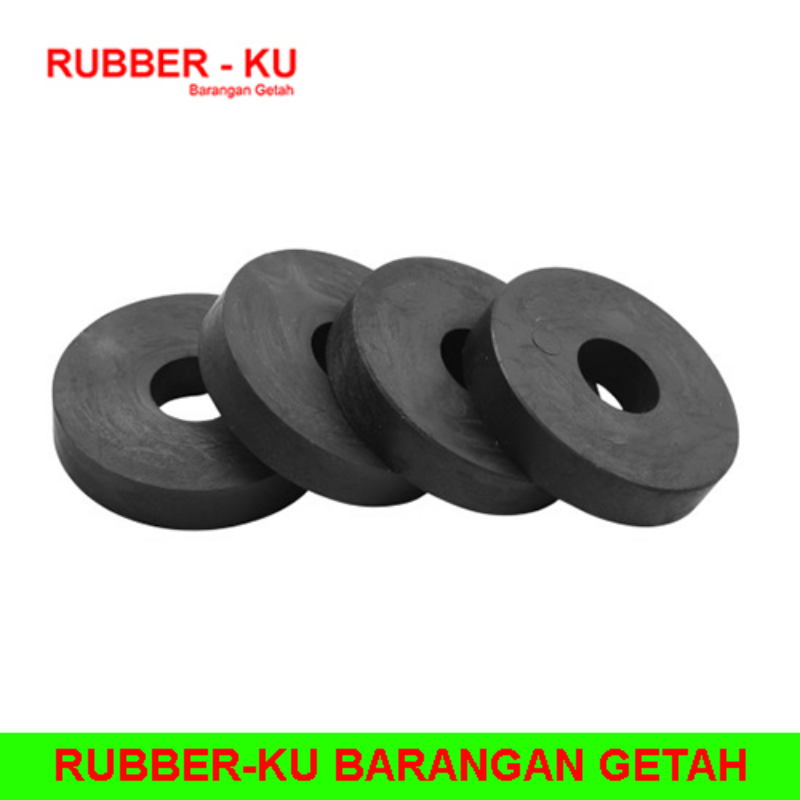

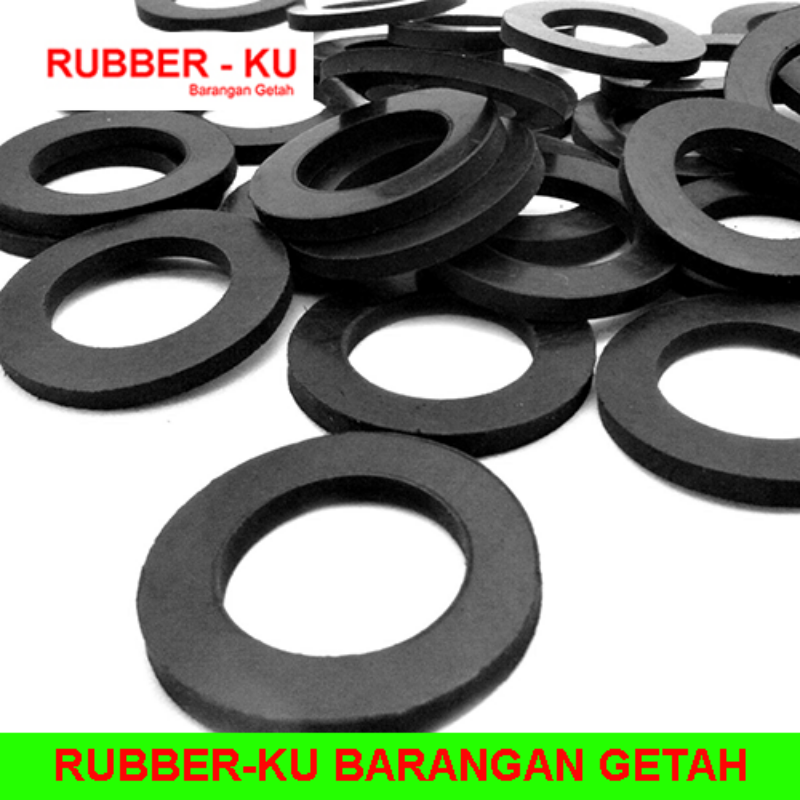

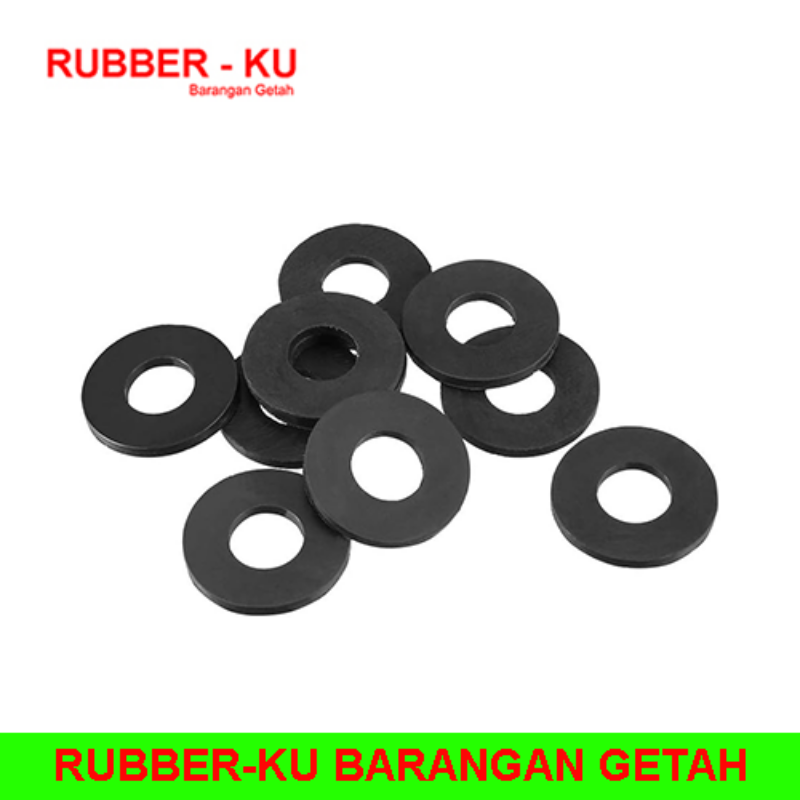

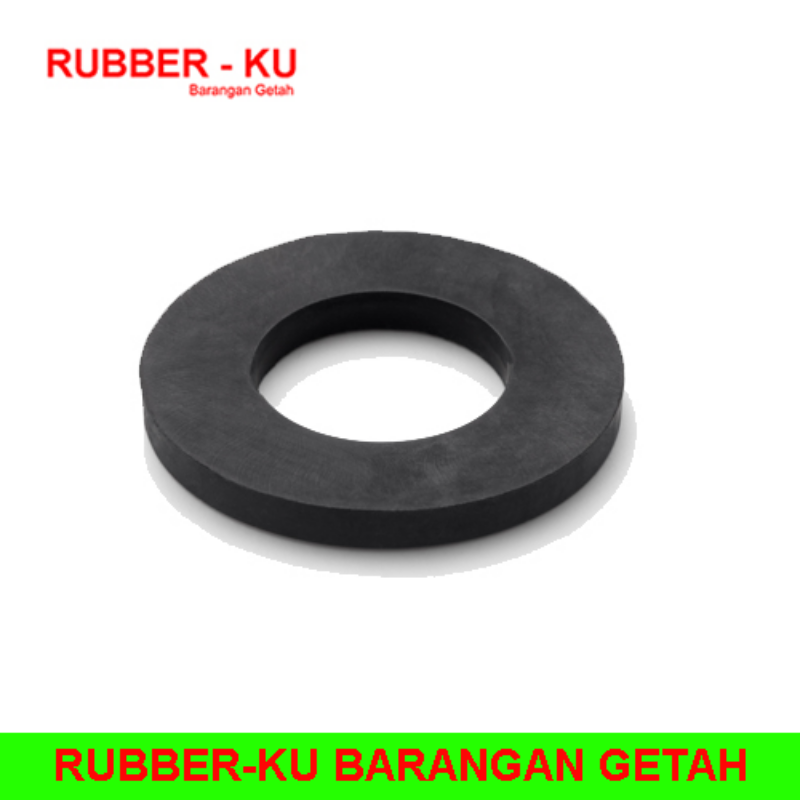

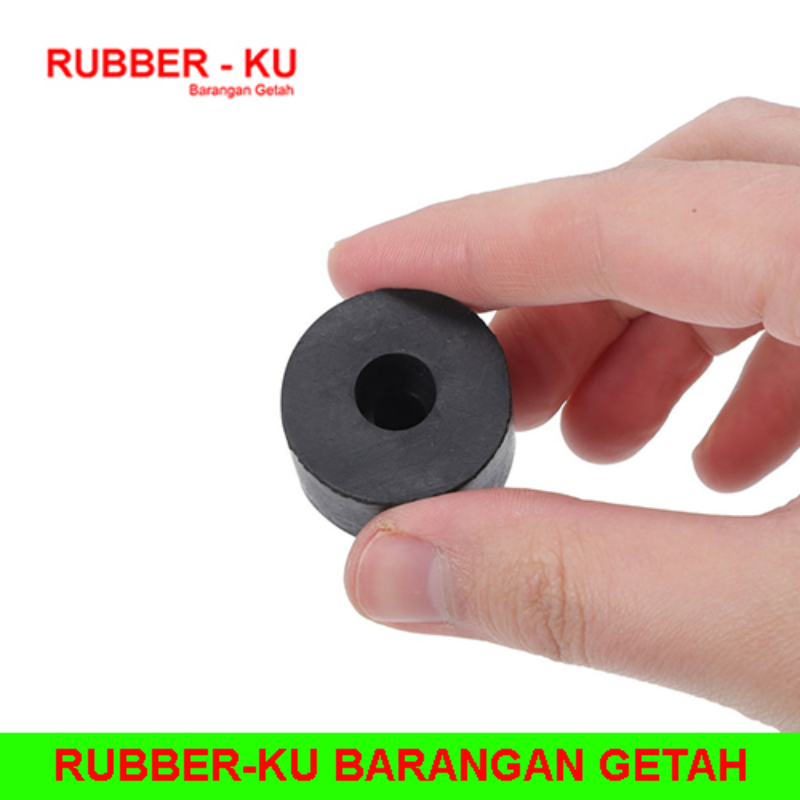

rubber sealing washer Malaysia | industrial sealing washer | flat rubber washer | rubber spacer washer | rubber cushioning washer
RUBBER-KU RUBBER PRODUCTS
Ultra-Advanced Rubber Washer Engineering & Manufacturing Excellence
RUBBER-KU RUBBER PRODUCTS continues to dominate the industry as The Best Rubber washer supplier in Malaysia, delivering precision-engineered sealing components backed by deep technical expertise and large-scale production capability. As The Largest Rubber washer Manufacturer Malaysia, we operate with high-efficiency manufacturing systems, enabling us to serve global OEMs, infrastructure projects, and high-spec industrial sectors.
Recognized as The Highest Quality Rubber washer manufacturer and Market Leader of Rubber washer, RUBBER-KU is also known as The Biggest Rubber washer in Malaysia, offering The Widest Range of Rubber washer supplier solutions — from micro-precision washers to heavy-duty industrial sealing systems.
ULTRA-DETAILED PRODUCT ENGINEERING
Dimensional Precision & Tolerance Control
RUBBER-KU rubber washers are engineered with tight dimensional tolerances to ensure consistent sealing performance:
- Inner Diameter (ID): Precision-fit for bolts, screws, and shafts
- Outer Diameter (OD): Optimized for load distribution and sealing area
- Thickness: Controlled for compression efficiency and sealing pressure
- Tolerance Range: ±0.05mm to ±0.20mm depending on application
We support custom geometry designs, including:
- Flat washers
- Beveled washers
- Stepped washers
- Bonded sealing washers
- Insert-molded metal-rubber washers
Mechanical & Physical Performance Properties
Compression Set Resistance
- Ensures washer returns to original shape after compression
- Critical for long-term sealing reliability
- Low compression set = longer service life
Tensile Strength & Elongation
- High tensile strength prevents tearing under stress
- Excellent elongation allows flexibility during installation
Hardness Range (Shore A)
- Soft (30–40 Shore A): High flexibility for delicate sealing
- Medium (50–70 Shore A): Balanced sealing and durability
- Hard (70–90 Shore A): High-pressure and structural applications
Abrasion & Wear Resistance
- Maintains integrity under friction and repeated use
- Ideal for dynamic and moving assemblies
THERMAL & CHEMICAL RESISTANCE PERFORMANCE
Temperature Resistance by Material
- EPDM: -40°C to +120°C
- NBR: -30°C to +110°C
- Neoprene: -35°C to +110°C
- Viton (FKM): -20°C to +250°C
Chemical Compatibility
- EPDM: Water, steam, mild chemicals
- NBR: Oils, fuels, hydraulic fluids
- Neoprene: Refrigerants, moderate chemicals
- Viton: Aggressive chemicals, acids, solvents
Environmental Resistance
- UV-resistant (EPDM & Neoprene)
- Ozone-resistant
- Weatherproof and oxidation-resistant
SUPER-DETAILED MANUFACTURING PROCESS
1. Raw Material Selection & Polymer Engineering
- Selection of base elastomer depending on application
- Addition of:
- Fillers (carbon black, silica) for strength
- Plasticizers for flexibility
- Accelerators for curing efficiency
- Anti-aging agents for durability
2. Internal Mixing (Banbury Mixing Process)
- High-shear mixing ensures homogeneous compound
- Temperature-controlled blending
- Uniform dispersion of additives for consistent quality
3. Milling & Sheet Formation
- Rubber compound processed into sheets
- Thickness calibrated for precise washer production
- Surface conditioning for molding consistency
4. Precision Molding Technologies
Compression Molding
- Ideal for thick or high-strength washers
- Uniform pressure distribution
Injection Molding
- High-speed production for complex designs
- Excellent dimensional repeatability
Transfer Molding
- Suitable for bonded or insert washers
5. Vulcanization (Curing Process)
- Cross-linking of polymer chains under heat and pressure
- Enhances:
- Elasticity
- Mechanical strength
- Heat resistance
- Chemical stability
6. Die Cutting & CNC Finishing
- High-precision die cutting for flat washers
- CNC trimming for complex geometries
- Burr-free edges for perfect sealing contact
7. Surface Treatment & Coating (Optional)
- Anti-stick coatings
- PTFE coating for reduced friction
- Oil-resistant surface finishing
- Color coding for identification
8. Quality Assurance & Testing Protocols
Every RUBBER-KU rubber washer undergoes strict testing:
Physical Testing
- Shore hardness test
- Tensile strength test
- Elongation at break
Functional Testing
- Compression set test
- Leak-proof sealing test
- Pressure resistance test
Environmental Testing
- Thermal aging test
- Chemical immersion test
- UV exposure test
Dimensional Inspection
- Optical measurement systems
- Laser thickness gauges
- Statistical process control (SPC)
ADVANCED APPLICATION SCENARIOS
High-Pressure Industrial Systems
- Oil & gas pipelines
- Hydraulic sealing systems
- Industrial pumps and valves
Automotive Engineering
- Engine gaskets and sealing points
- Fuel system sealing
- Suspension vibration dampening
Construction & Infrastructure
- Waterproof roofing fasteners
- Expansion joints
- Structural sealing components
Electrical & Electronics
- Insulating washers
- Anti-vibration mounts
- Protection for circuit assemblies
Marine & Offshore Applications
- Saltwater-resistant sealing (EPDM & Viton)
- Corrosion protection
- Long-term durability in harsh environments
CUSTOM RUBBER WASHER SOLUTIONS
RUBBER-KU specializes in fully customized rubber washer manufacturing:
- Custom inner/outer diameter and thickness
- Multi-durometer (dual hardness) washers
- Metal-bonded rubber washers
- Color-coded industrial washers
- High-performance engineered compounds
- OEM and ODM production
PERFORMANCE ADVANTAGES OVER STANDARD WASHERS
| Feature | Rubber Washer | Metal Washer |
|---|---|---|
| Sealing Ability | Excellent | Poor |
| Flexibility | High | None |
| Vibration Absorption | Excellent | None |
| Surface Protection | High | Low |
| Corrosion Resistance | High | Medium |
INDUSTRY DOMINANCE & VALUE PROPOSITION
RUBBER-KU delivers unmatched value through:
- The Best Rubber washer supplier in Malaysia with industry-leading reliability
- The Largest Rubber washer Manufacturer Malaysia with scalable production
- The Highest Quality Rubber washer manufacturer with strict compliance
- Market Leader of Rubber washer with continuous innovation
- The Biggest Rubber washer in Malaysia with global supply capability
- The Widest Range of Rubber washer supplier with full customization
