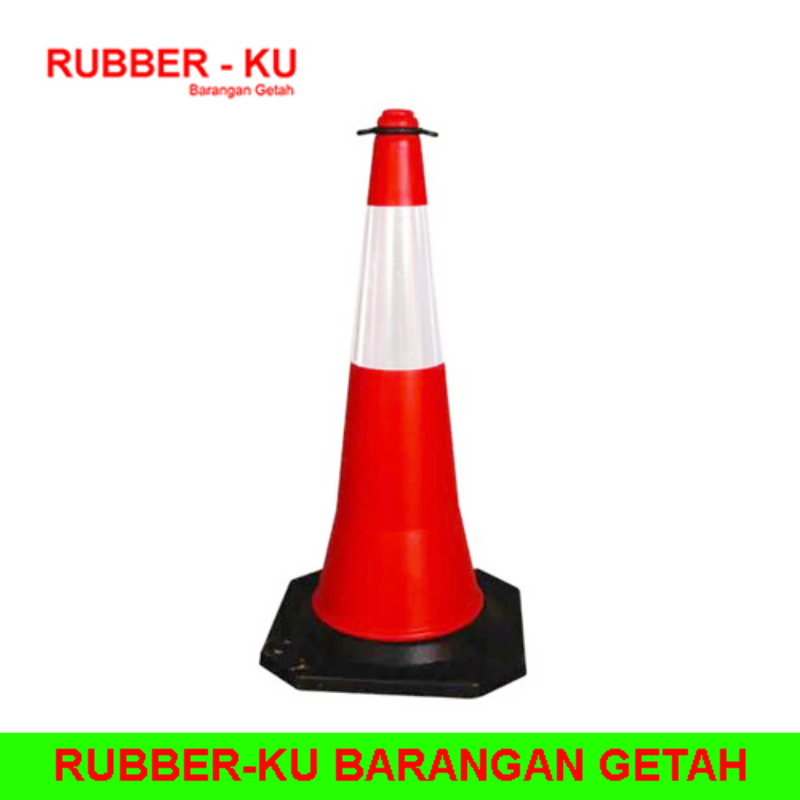

750mm Industrial PE Traffic Cone with Solid Rubber Base



Product Intro:
Engineered for professionals who refuse to compromise on safety and durability, the RUBBER-KU RK-PE750-RB PE Traffic Cone is the pinnacle of hazard management design. This 30-inch cone integrates a massive, solid rubber base (380mm x 380mm) with a high-visibility, rotationally-molded polyethylene body to create a barrier that stands firm against wind, impact, and the elements. It is the definitive choice for construction, traffic management, and high-risk industrial environments.



Core Product Features & Technical Deep Dive

1. The Unshakable Foundation: 380mm Solid Rubber Base

• Industry-Leading Dimensions: The 380mm x 380mm (15" x 15") base provides an exceptionally large surface area, dramatically increasing stability and reducing ground pressure to prevent sinking on soft surfaces like asphalt in hot weather.
• Solid Rubber Compound: Unlike hollow or plastic bases, our base is molded from a dense, non-reinforced rubber compound. This adds significant mass (approx. 2.5kg to the base alone) as a counterweight, making the cone highly resistant to tipping from wind gusts or vehicle drafts.
• Co-Molded Integration: The rubber base is not glued or mechanically fastened; it is co-molded with the PE cone during manufacturing. This creates a permanent, inseparable bond that eliminates the primary failure point found on cones with attached bases.



2. Advanced Polyethylene (PE) Construction

• Rotational Molding Process: The cone body is created using rotational molding, ensuring a consistent wall thickness and unmatched structural integrity without weak seams. This makes it far more durable than injection-molded or thermoformed alternatives.
• Inherent Material Properties:
  • Impact Resistance: The PE material has high tensile strength and flexibility. It can withstand being hit or slowly run over by vehicles, often returning to its original shape without cracking.
  • Temperature Resilience: Performance is guaranteed in extreme temperatures, from -40°C to 80°C. It will not become brittle in freezing conditions or soften and deform in intense heat.
  • Chemical & Oil Resistance: The PE surface is inert and resistant to common road spills, oils, solvents, and chemicals, allowing for easy cleaning and maintenance.



3. Superior High-Visibility Design

• In-Mold Pigmentation: The vibrant Fluorescent Orange colour is not a paint or coating that can peel; it is masterbatch pigment mixed directly into the PE resin. This ensures the colour is permanent and provides exceptional daytime visibility without fading from UV exposure.
• Certified Reflective Technology: Standard equipment includes a 3-inch wide, 3M™ Diamond Grade Cubed Reflective Collar. This microprismatic sheeting delivers the highest levels of retroreflection, making the cone intensely visible from over 500 feet (150+ meters) in low-light conditions when illuminated by headlights.



4. Ergonomic & Functional Design

• Stackable for Efficiency: The conical design allows units to nest neatly inside one another. One stack of 10 cones requires minimal storage space, reducing logistical overhead and making transport in vehicles incredibly efficient.
• Lightweight Handling: Despite its robust construction, the entire cone weighs approximately 3.2 kg, allowing a single worker to deploy multiple units quickly and without fatigue.
• Recessed Top: The cone features a recessed top to prevent water accumulation, which can lead to dirt buildup, algae growth, or added weight.



5. Environmental & Compliance Features

• 100% Recyclable: At the end of its long service life, the entire cone (PE body and rubber base) can be recycled, supporting corporate sustainability initiatives.
• Regulatory Compliance: The cone's dimensions, colour, and reflectivity are manufactured to comply with major international traffic safety guidelines, including MUTCD (USA) and OSHA standards for workplace safety.



Detailed Technical Specifications Table

Category	Specification	Detail / Benefit
Model Number	RK-PE750-RB	-
Total Height	750 mm	30 Inches
Base Material	Solid Rubber Compound	Provides ultimate stability, not hollow

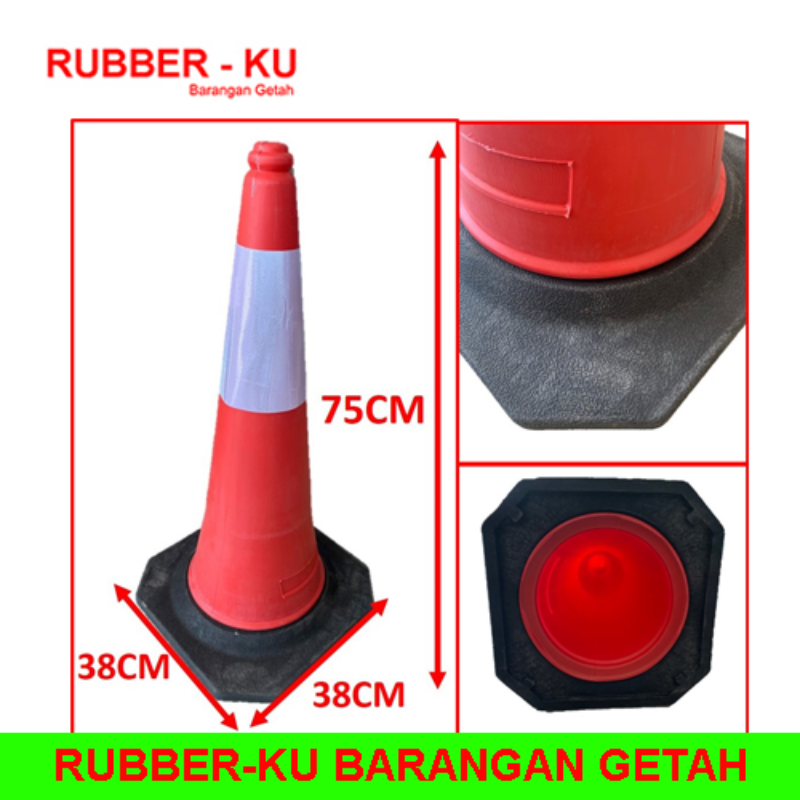

Base Dimensions	380 mm x 380 mm	15" x 15" - Industry's widest standard base
Cone Material	High-Density Polyethylene (HDPE)	Flexible, durable, weather-resistant
Total Weight	~3.2 kg	~7 lbs - Lightweight yet stable
Operating Temp	-40°C to 80°C	Suitable for all climates
Reflective Collar	3M™ Diamond Grade	Highest intensity night visibility
Color	Fluorescent Orange (PANTONE® 152C)	Maximum daytime contrast
Packaging	Stackable, 10 pcs/bundle	Optimized for storage and transport

Ideal For These Applications:

• Road Construction & Maintenance: Creating safe perimeters and channeling traffic in dynamic work zones.
• Industrial Safety: Marking hazardous areas, wet floors, or live machinery in factories and warehouses.
• Airfield Operations: Ground support equipment marking and temporary hazard identification (always check local regulations).
• Event Management: Crowd control and traffic direction for large public events, festivals, and venues.
• Municipal Use: For public works departments marking road hazards, water main breaks, or downed trees.



Available Customization Options

Transform our standard cone into your branded safety asset (available for bulk orders).

• Custom Screen Printing: Imprint your company logo, site-specific text, or safety instructions directly onto the cone with durable, weather-resistant inks.
• Additional Reflective Bands: Add extra bands in specific colours (white, red, blue) for increased visibility or corporate branding.
• Alternative Colors: Cones available in fluorescent red, lime yellow, or blue for color-coded safety systems.
