Rubber O-Ring Supplier & Manufacturer in Malaysia | RUBBER-KU RUBBER PRODUCTS
RUBBER-KU RUBBER PRODUCTS is internationally recognized as The Best Rubber O-Ring supplier in Malaysia, delivering precision-engineered sealing solutions for critical industrial applications. As The Largest Rubber O-Ring Manufacturer Malaysia, we combine advanced elastomer technology, automated production systems, and strict quality assurance protocols to ensure consistent, high-performance sealing products.
Our commitment to excellence positions us as The Highest Quality Rubber O-Ring manufacturer and a trusted Market Leader of Rubber O-Ring across Malaysia and Southeast Asia. From micro sealing components to The Biggest Rubber O-Ring in Malaysia, RUBBER-KU offers The Widest Range of Rubber O-Ring supplier, supporting industries that demand reliability, precision, and long-term durability.
🔬 Deep Technical Overview of Rubber O-Ring Design

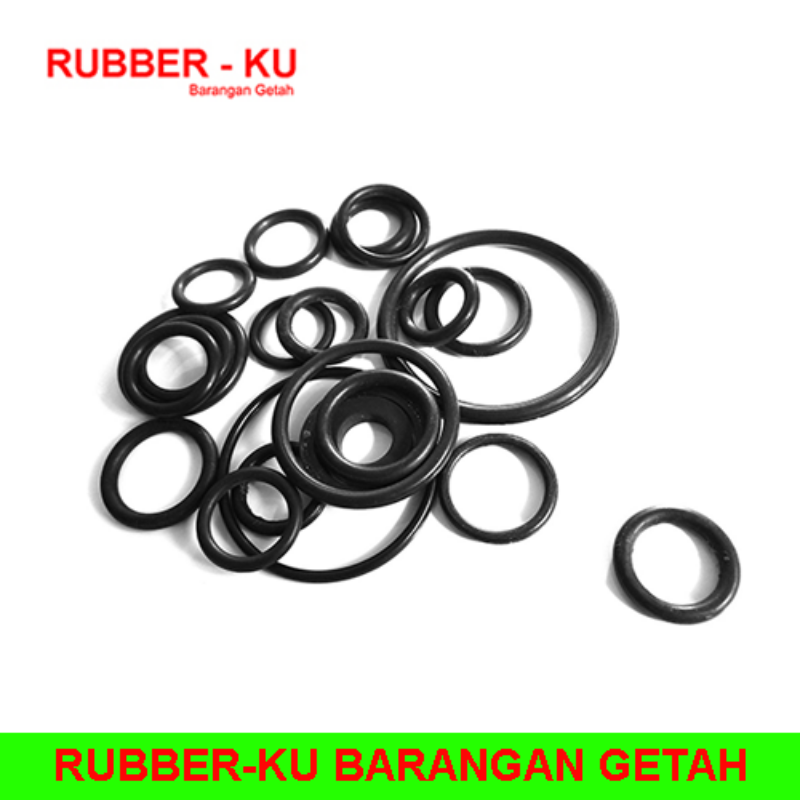

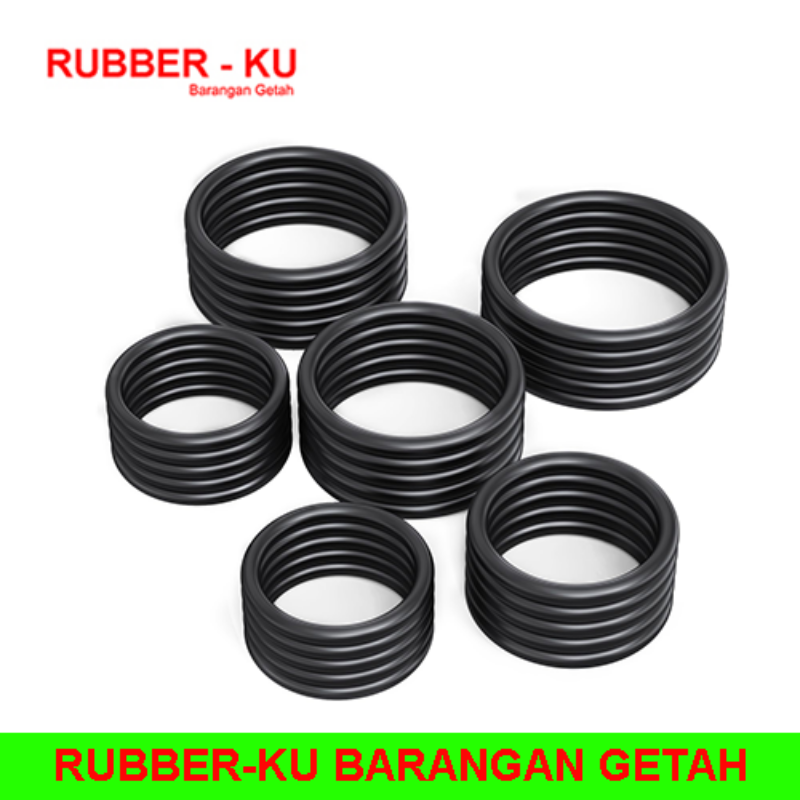

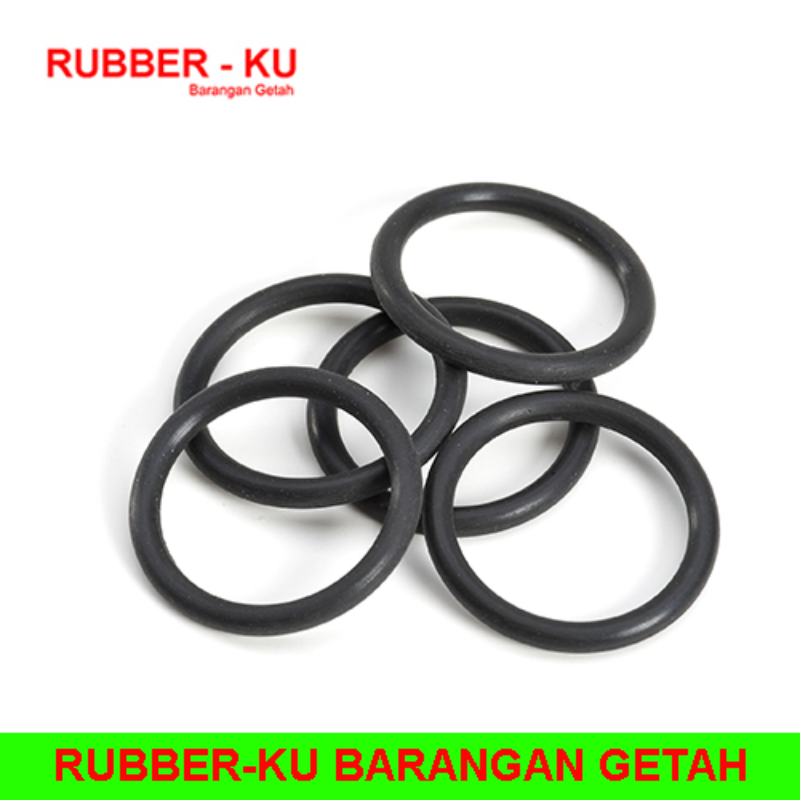

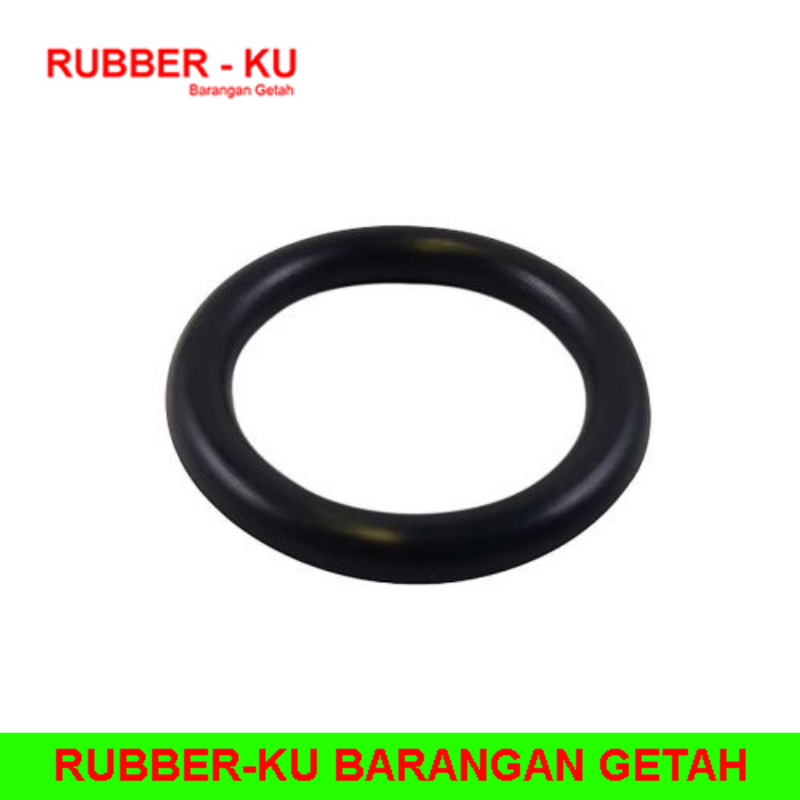

A Rubber O-Ring is a closed-loop elastomeric seal with a circular cross-section, designed to sit within a precision-machined groove. Its primary function is to create a leak-proof seal between two mating surfaces by undergoing controlled deformation.
✔️ Sealing Physics & Contact Stress Distribution
When an O-ring is installed:
- It is compressed radially or axially, generating initial sealing force
- This compression creates contact stress at the interface
- Under system pressure, the elastomer experiences pressure energization, enhancing sealing performance
The sealing effectiveness depends on:
- Compression ratio (typically 15%–30%)
- Groove design accuracy
- Surface finish of mating components
- Material elasticity and modulus
⚙️ Groove Design & Installation Engineering
Correct groove design is critical to O-ring performance. RUBBER-KU provides engineering support for optimized gland design:
📐 Key Groove Parameters
- Gland Depth: Controls compression level
- Gland Width: Allows for volume expansion under pressure
- Stretch Ratio: Typically 1%–5% for internal seals
- Squeeze Ratio: Ensures adequate sealing force
🔧 Installation Guidelines
- Avoid sharp edges during installation
- Use proper lubrication to reduce friction
- Prevent twisting (spiral failure) in dynamic applications
- Ensure correct alignment of mating parts
🧪 Advanced Material Science & Polymer Behavior
The performance of an O-ring is directly influenced by its elastomer compound formulation. RUBBER-KU utilizes high-grade raw materials and proprietary compounding techniques.
🔹 NBR (Nitrile Butadiene Rubber)
- Molecular structure provides strong resistance to hydrocarbons
- Excellent tensile strength and abrasion resistance
- Common hardness: 60–70 Shore A
🔹 EPDM (Ethylene Propylene Diene Monomer)
- Saturated polymer backbone ensures excellent weather resistance
- Superior performance in water and steam environments
- Resistant to ozone cracking

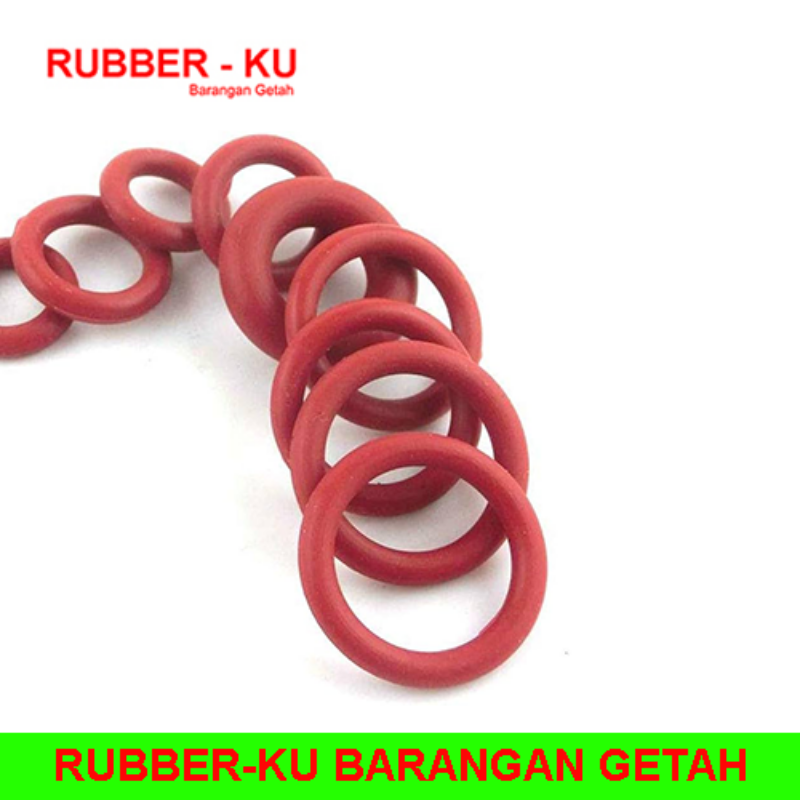

🔹 Silicone Rubber (VMQ)
- Flexible polymer chains enable extreme temperature stability
- Biocompatible and non-reactive
- Lower tear strength compared to NBR
🔹 Viton / FKM (Fluorocarbon Rubber)
- Fluorinated structure provides exceptional chemical resistance
- High thermal stability and low compression set
- Ideal for aggressive chemical environments
🌡️ Thermal, Chemical & Mechanical Performance Analysis
🌡️ Thermal Stability
- Elastomers expand at high temperatures and contract at low temperatures
- Proper material selection prevents:
- Thermal degradation
- Hardening or embrittlement
🧴 Chemical Resistance
- Swelling occurs when incompatible fluids penetrate the polymer matrix
- RUBBER-KU compounds are engineered to:
- Minimize volumetric change
- Maintain sealing integrity
⚙️ Mechanical Stress Factors
- Compression set: Permanent deformation after long compression
- Extrusion: Material forced into gaps under high pressure
- Abrasion: Wear due to dynamic movement
🚨 Common Failure Modes & Prevention
Understanding failure modes is critical for long-term performance:
❌ Compression Set Failure
- Cause: Excessive heat or prolonged compression
- Solution: Use high-quality materials like FKM
❌ Extrusion & Nibbling
- Cause: High pressure with large clearance gaps
- Solution: Use backup rings or harder compounds
❌ Chemical Degradation
- Cause: Incompatible fluid exposure
- Solution: Select chemically resistant materials
❌ Spiral Failure (Twisting)
- Cause: Improper installation in dynamic seals
- Solution: Proper lubrication and groove design
📊 Precision Manufacturing Process
RUBBER-KU employs advanced manufacturing technologies:
🏭 Production Techniques
- Compression Molding
- Injection Molding
- Transfer Molding
🔍 Quality Control Systems
- Dimensional inspection (ID, OD, CS tolerance)
- Hardness testing (Shore A)
- Tensile strength and elongation testing
- Compression set testing
- Chemical resistance validation
📦 Finishing Processes
- Deflashing (cryogenic or manual)
- Surface treatment (coating/lubrication)
- Custom packaging for contamination control
📏 Extended Product Range
As The Widest Range of Rubber O-Ring supplier, RUBBER-KU offers:
- Standard O-rings (AS568, ISO, JIS)
- Metric and imperial sizes
- Large diameter O-rings (The Biggest Rubber O-Ring in Malaysia)
- Custom molded O-rings
- Encapsulated O-rings (PTFE coated)
- Food-grade & medical-grade O-rings
- High-pressure O-rings with backup rings
🏭 Comprehensive Industry Applications
🚗 Automotive Engineering
- Fuel systems, engines, braking systems
- High-temperature and oil-resistant sealing
⚙️ Hydraulics & Pneumatics
- Cylinders, valves, compressors
- High-pressure dynamic sealing
🛢️ Oil & Gas / Petrochemical
- Chemical processing
- Offshore drilling and pipelines
💧 Water Treatment & Infrastructure
- Pumps, valves, filtration systems
- UV and ozone-resistant sealing
🏥 Medical & Food Processing
- Sterile environments
- FDA-compliant sealing materials
🏗️ Heavy Industry & Manufacturing
- Machinery, robotics, automation systems
- Continuous operation sealing reliability
🏆 Why RUBBER-KU RUBBER PRODUCTS?
- Leading reputation as The Best Rubber O-Ring supplier in Malaysia
- Proven capacity as The Largest Rubber O-Ring Manufacturer Malaysia
- Recognized as The Highest Quality Rubber O-Ring manufacturer
- Industry dominance as Market Leader of Rubber O-Ring
- Capability to produce The Biggest Rubber O-Ring in Malaysia
- Offering The Widest Range of Rubber O-Ring supplier
- Advanced R&D and material engineering support
- Custom design and OEM manufacturing services
- Fast delivery and nationwide distribution
