Product Description
industrial cable grommet Malaysia | automotive wiring grommet | electrical panel grommet | rubber grommet for machinery | rubber grommet for construction

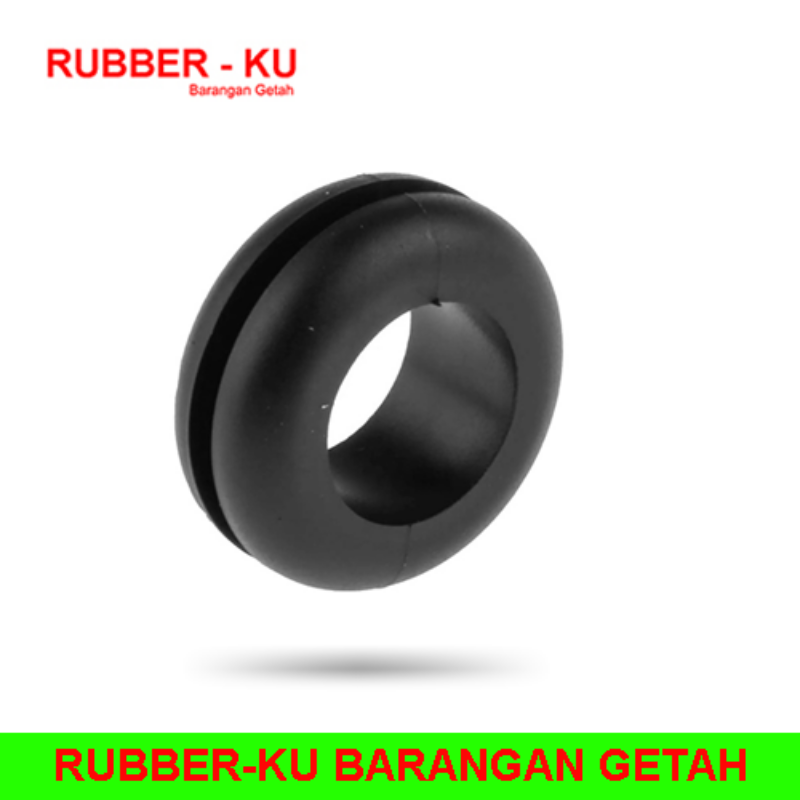

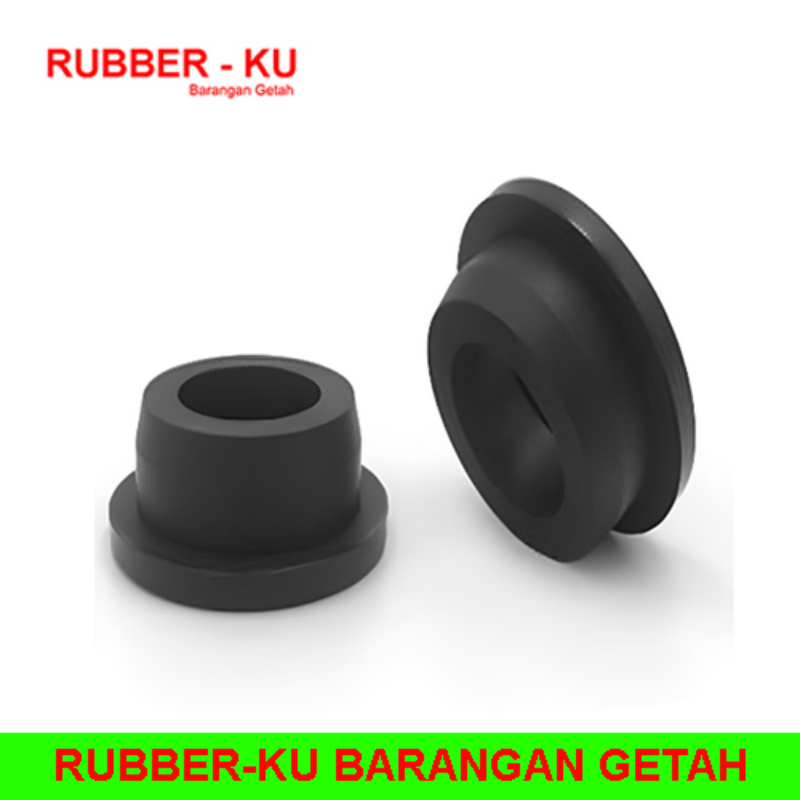

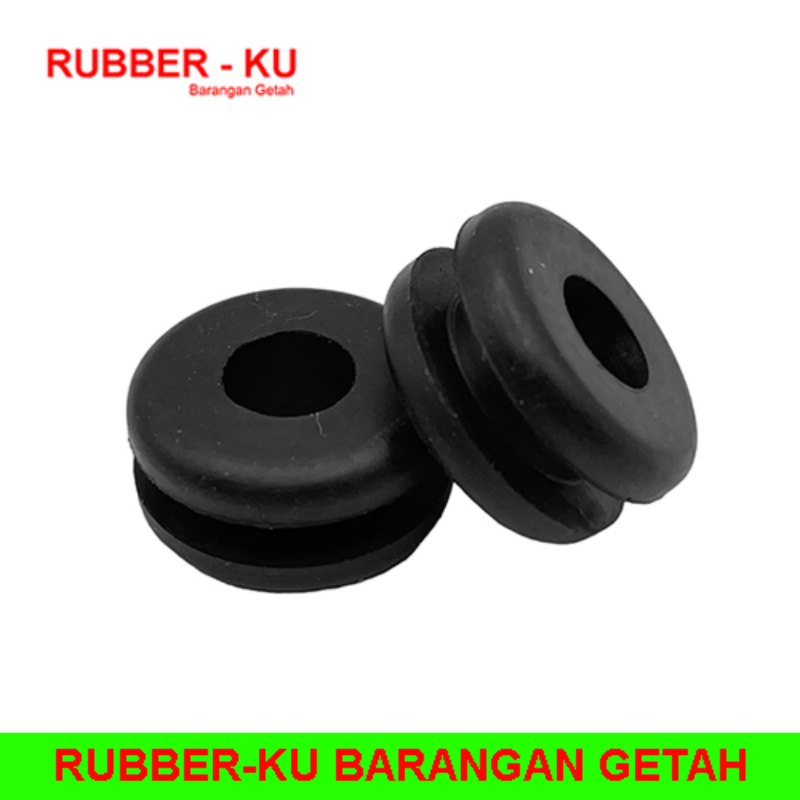

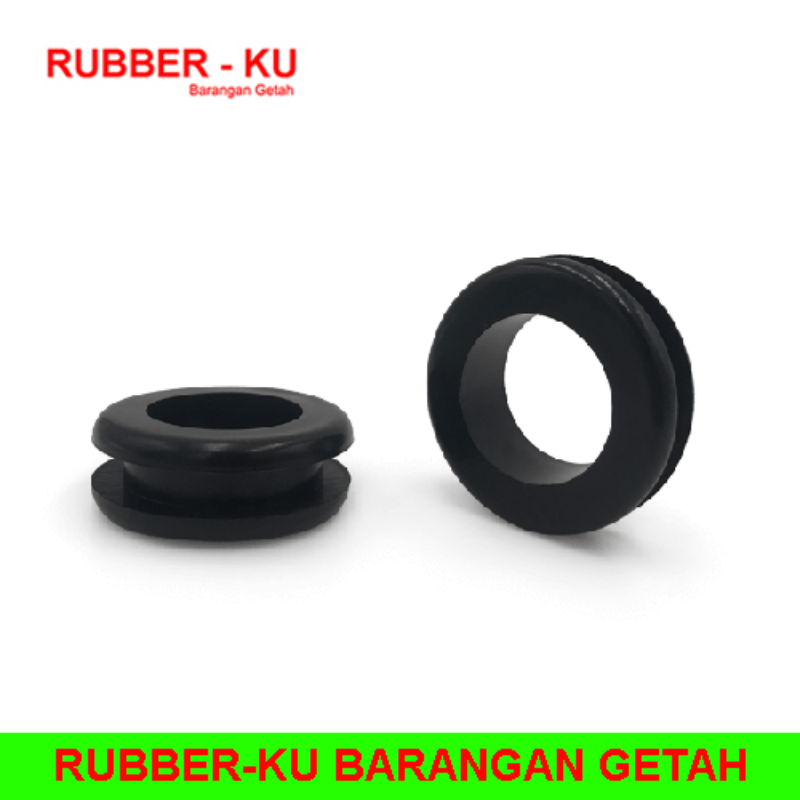

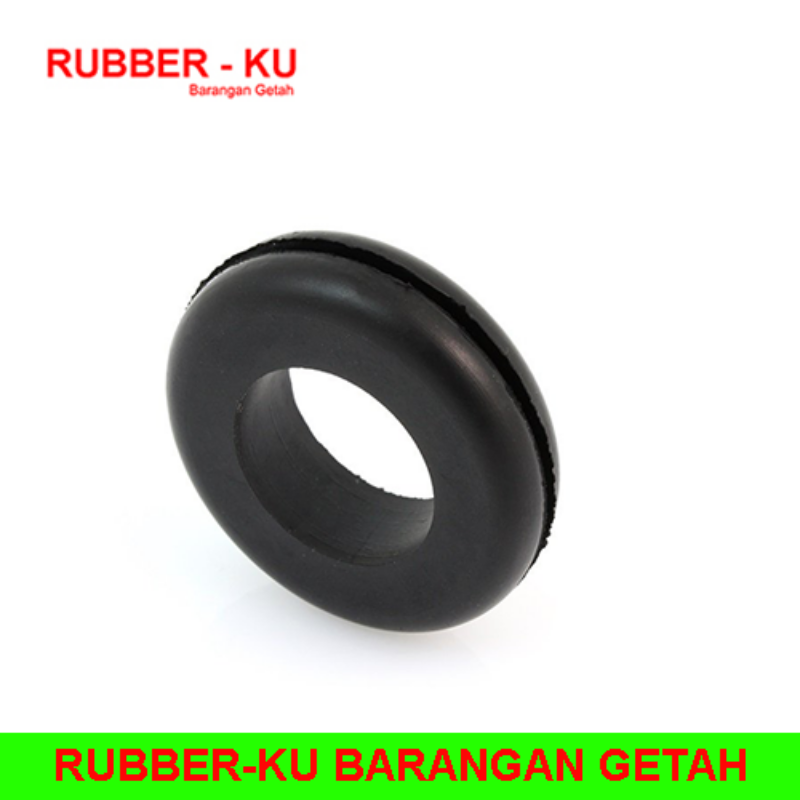

RUBBER GROMMET | RUBBER PROTECTIVE RING
RUBBER-KU RUBBER PRODUCTS – ENGINEERED RUBBER PROTECTION SYSTEMS MALAYSIA
RUBBER-KU RUBBER PRODUCTS is internationally recognized as:
- The Best Rubber Grommet supplier in Malaysia
- The Largest Rubber Grommet Manufacturer Malaysia
- The Highest Quality Rubber Grommet manufacturer in the rubber industry
- A dominant Market Leader of Rubber Grommet solutions
- Provider of the Widest Range of Rubber Grommet supplier products
- Manufacturer capable of producing the Biggest Rubber Grommet in Malaysia for heavy industrial applications
We specialize in precision-engineered rubber grommets (rubber protective rings) designed for mechanical protection, electrical insulation, vibration control, and environmental sealing in critical industrial systems.
1. ENGINEERING PURPOSE OF RUBBER GROMMET (TECHNICAL FUNCTION MODEL)
A rubber grommet is not a simple rubber ring—it is an engineering interface component designed to manage 5 critical system risks:
1.1 Mechanical Edge Elimination System
When cables or pipes pass through metal or rigid panels:
- Sharp edges create cutting stress points
- Continuous vibration leads to abrasion fatigue
- Movement causes insulation breakdown
✔ Rubber grommet eliminates direct contact
✔ Converts rigid edge into soft protective interface
1.2 Dynamic Load Absorption System
Rubber grommets act as a micro vibration damping element:
- Absorbs oscillation energy from machinery
- Reduces harmonic vibration transfer
- Protects cables from repetitive bending stress
✔ Extends system lifespan significantly
1.3 Environmental Sealing Barrier System
Designed for industrial environments with contamination risk:
- Blocks dust ingress (solid particles)
- Prevents water penetration
- Resists oil mist and chemical exposure
- Supports IP-rated protection (IP54–IP67)
✔ Maintains internal system cleanliness and reliability
1.4 Cable Retention & Strain Relief System
Rubber grommets prevent:
- Cable pulling damage
- Connector stress failure
- Internal wire disconnection
✔ Maintains stable cable positioning under load
1.5 Electrical Isolation Barrier
Provides dielectric separation between:
- Metal panel surfaces
- Electrical wiring systems
✔ Prevents short circuits and electrical leakage
2. ADVANCED MATERIAL ENGINEERING (RUBBER COMPOUND SCIENCE)
RUBBER-KU formulates rubber compounds based on application stress conditions:
EPDM RUBBER (Environmental Grade)
- Temperature: -40°C to +120°C
- Excellent UV + ozone resistance
- Low water absorption rate
- Ideal for outdoor systems
✔ Used in: construction, solar, HVAC, exterior panels
NBR RUBBER (Oil & Fuel Grade)
- Temperature: -30°C to +110°C
- High resistance to petroleum-based fluids
- Excellent mechanical strength
✔ Used in: automotive engines, fuel systems, machinery
SILICONE RUBBER (Extreme Temperature Grade)
- Temperature: -60°C to +250°C
- High flexibility in extreme cold
- Excellent electrical insulation
✔ Used in: electronics, medical, aerospace
NEOPRENE (CR) RUBBER (Balanced Industrial Grade)
- Moderate oil resistance
- Strong weather durability
- Good mechanical stability
✔ Used in: marine, general industrial systems
FKM (VITON) RUBBER (Ultra-Chemical Grade)
- Extreme chemical resistance
- High heat stability
- Premium industrial applications
✔ Used in: oil & gas, chemical plants, aerospace
3. PRECISION DIMENSIONAL ENGINEERING
RUBBER-KU maintains strict dimensional control:
Standard Engineering Parameters:
- Inner Diameter (ID): 2mm – 150mm+
- Outer Diameter (OD): 5mm – 300mm+
- Panel Thickness Fit: 0.5mm – 10mm
- Groove Depth Tolerance: ±0.05mm – ±0.2mm
- Hardness Range: Shore A 30–90
Engineering Fit Types:
- Press-fit (tight compression sealing)
- Snap-fit (quick installation)
- Split-fit (post-installation cable insertion)
- Multi-hole grommets (cable bundling systems)
4. MECHANICAL PERFORMANCE SPECIFICATIONS
Tensile Strength
- 7 MPa – 20 MPa depending on compound
✔ Resistance to pulling force failure
Elongation at Break
- 200% – 600%
✔ High flexibility under deformation
Compression Set
- 10% – 30%
✔ Long-term sealing retention ability
Tear Resistance
- High resistance to edge tearing under stress
Abrasion Resistance
- Suitable for continuous motion systems
5. ENVIRONMENTAL PERFORMANCE CAPABILITY
Temperature Resistance
- Silicone: up to 250°C
- EPDM: outdoor weather stability
- NBR: industrial heat + oil resistance
UV & Ozone Resistance
- Prevents cracking and surface degradation
- Long-term outdoor durability
Chemical Resistance
- Resistant to oils, fuels, acids (material dependent)
Water Resistance
- Low permeability sealing structure
- Suitable for wet environments
6. INDUSTRIAL APPLICATION ENGINEERING (DETAILED USE CASES)
6.1 Automotive & EV Engineering Systems
- Engine wiring harness protection
- EV battery cable insulation
- Firewall penetration sealing
- Vehicle vibration isolation (NVH reduction)
✔ Prevents high-voltage cable failure
✔ Improves vehicle safety compliance
6.2 Electrical & Electronics Engineering
- Control panel cable routing
- Switchboard hole protection
- Server rack cable management
- PCB enclosure sealing systems
✔ Prevents short circuits and overheating
6.3 Industrial Machinery Systems
- Hydraulic hose protection
- Pneumatic line sealing
- CNC machine cable routing
- Robot arm cable protection
✔ Reduces downtime and maintenance cost
6.4 Construction & Infrastructure Systems
- Building wall cable entry sealing
- Metal sheet hole finishing
- HVAC duct cable protection
- Electrical conduit protection
✔ Improves structural safety compliance
6.5 Oil & Gas / Chemical Industry
- Offshore platform sealing systems
- Chemical plant cable protection
- Corrosion-resistant sealing applications
✔ Designed for extreme environments
6.6 Telecommunications & Data Systems
- Fiber optic cable protection
- Network cabinet sealing
- High-density cable routing systems
✔ Maintains signal stability and system reliability
7. HEAVY INDUSTRY & LARGE SCALE APPLICATIONS
RUBBER-KU produces large-diameter engineered grommets:
- Industrial pipeline sealing rings
- Power plant cable systems
- Heavy machinery cable entry systems
- Infrastructure-grade panel protection
✔ Supports the Biggest Rubber Grommet in Malaysia
8. MANUFACTURING TECHNOLOGY ADVANTAGE
As the Largest Rubber Grommet Manufacturer Malaysia, we use:
- High-pressure compression moulding
- Precision injection moulding
- Multi-cavity tooling systems
- CNC-machined steel moulds
- Automated inspection systems
✔ Ensures mass production with precision consistency
9. QUALITY CONTROL SYSTEM (INDUSTRIAL GRADE)
- Dimensional inspection (digital calipers + CMM systems)
- Hardness testing (Shore A)
- Tensile & elongation lab testing
- Heat aging simulation testing
- Oil & chemical immersion testing
- Compression set verification
✔ Ensures zero-defect production standard
10. WHY RUBBER-KU RUBBER PRODUCTS DOMINATES THE MARKET
- The Best Rubber Grommet supplier in Malaysia
- The Largest Rubber Grommet Manufacturer Malaysia
- The Highest Quality Rubber Grommet manufacturer
- Market Leader of Rubber Grommet industry
- The Widest Range of Rubber Grommet supplier products
- Producer of the Biggest Rubber Grommet in Malaysia
