HRC Rubber Coupling

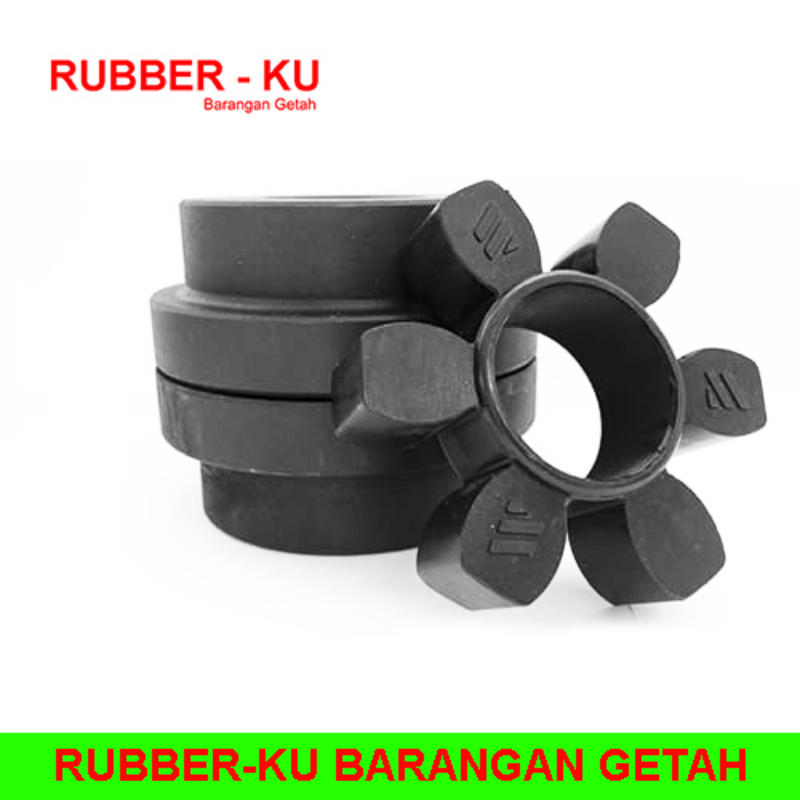

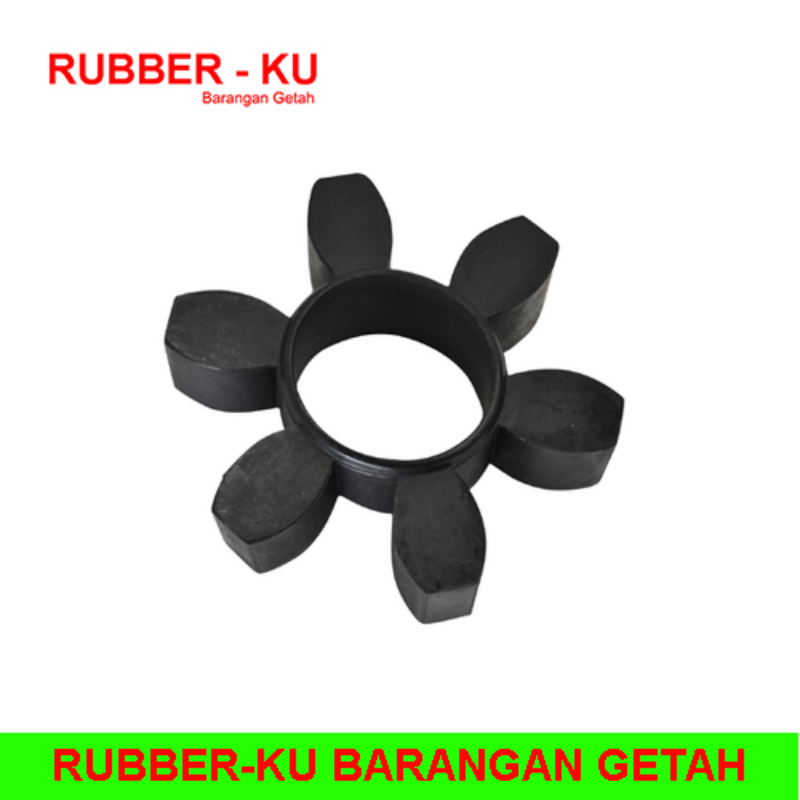

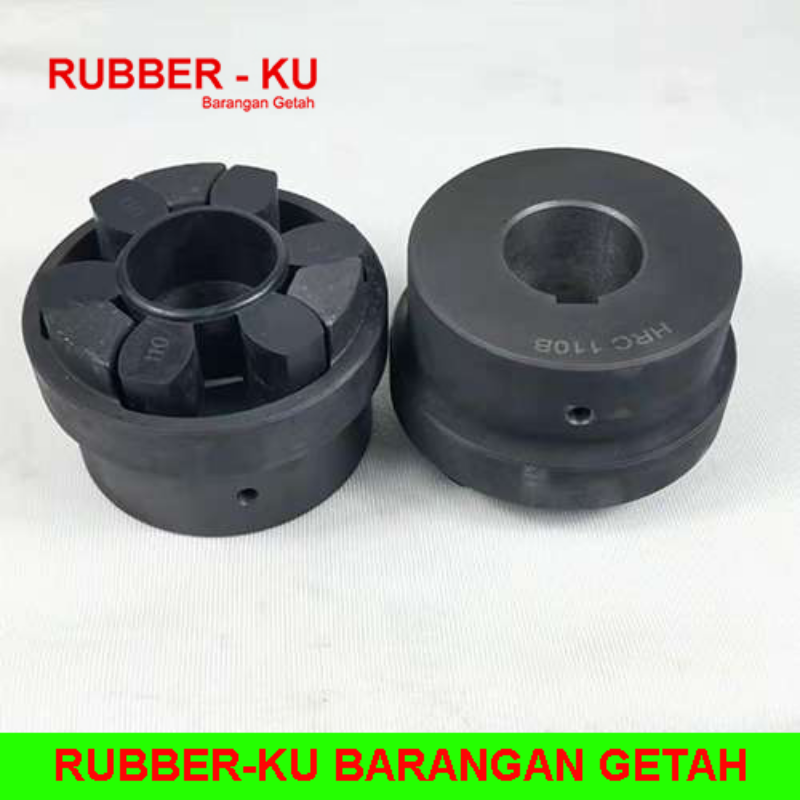

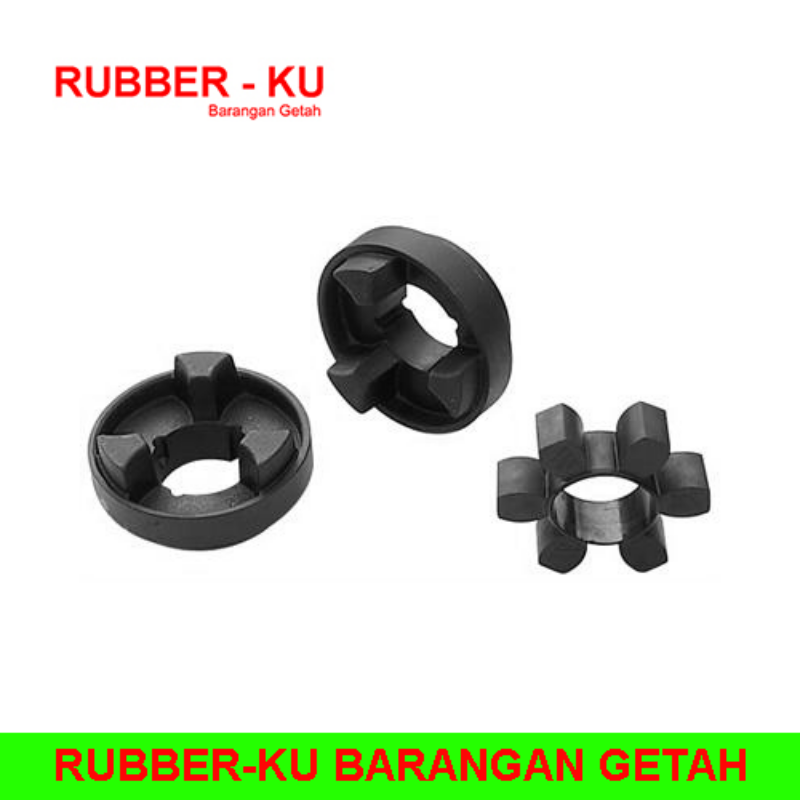

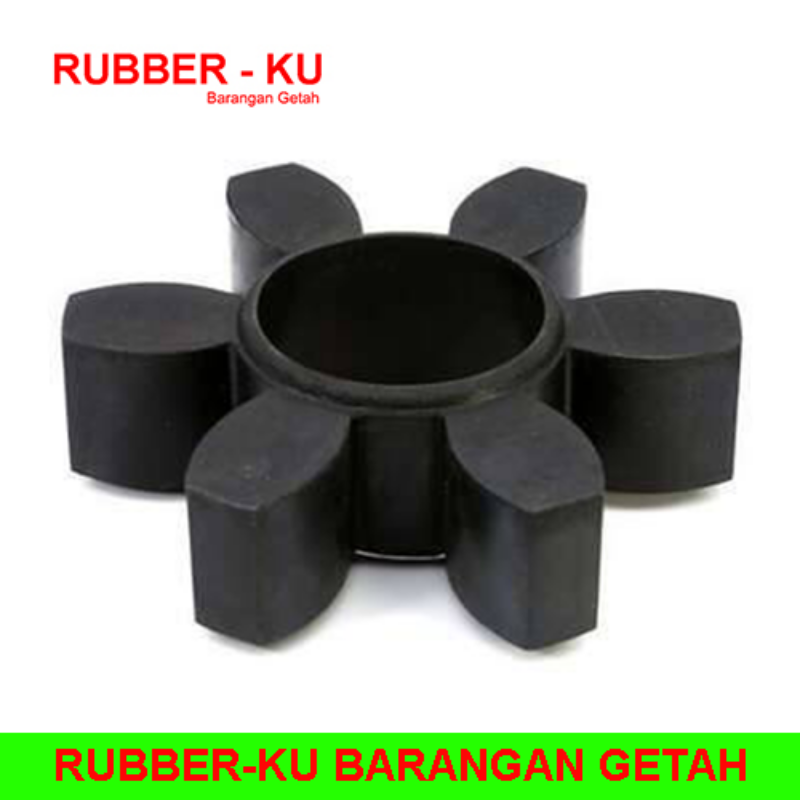

RUBBER-KU HRC Coupling is a proven performer, consisting of two cast iron flanges with a nitrile element (spider), which performs under compression.

The modular design allows for simple fitting and easy maintenance while the element absorbs shock loading and compensates for marginal misalignment.

The HRC Couplings  are available in Pilot Bore and Taper Lock.

HRC Couplings offer a range of hub and element selection to meet the demand for a low cost, general purpose spacer type flexible coupling. They allow for incidental misalignment, absorb shock loads and dampen out small amplitude vibrations. T hey are offered in both Pilot bore, Finished bore, and T aper bushed with both face and hub mount.

HRC Couplings provide a variety of hub selections to meet the demand for a low cost, general purpose, flexible shaft coupling. The HRC Coupling is a flexible shaft connection that comes with the convenience of either Taper Lock Bushes for fixing to the shaft, or as a finished bore and key to suit a particular shaft size.

The HRC Coupling allows for incidental misalignment, it absorbs shock loads, and is able to dampen out small amplitude vibrations, making the HRC Coupling specially suited to hydraulic or combustion engine applications. The various different hub arrangements, in either F (Face), H (Hub), or B (finished Bore) allows the Taper Lock Bush to enter the hub from two different directions. Firstly, the bush may enter the hub from inside the coupling (F flange), which allows the coupling hub to be mounted against the bearing on a shaft, reducing overhung loads. Secondly, it is able to enter the hub from outside the coupling (H flange), which assists with ease of installation.
