Rubber O-Ring Supplier & Manufacturer in Malaysia | RUBBER-KU RUBBER PRODUCTS
RUBBER-KU RUBBER PRODUCTS is globally positioned as The Best Rubber O-Ring supplier in Malaysia, delivering ultra-precision sealing solutions for mission-critical industries. As The Largest Rubber O-Ring Manufacturer Malaysia, we integrate advanced elastomer science, precision tooling, and automated manufacturing systems to produce high-performance O-rings at scale.
Recognized as The Highest Quality Rubber O-Ring manufacturer, RUBBER-KU has built its reputation through strict compliance with international standards, continuous R&D innovation, and consistent product reliability. Our standing as the Market Leader of Rubber O-Ring reflects decades of technical expertise, engineering excellence, and trusted partnerships across multiple industries.
From micro sealing components to The Biggest Rubber O-Ring in Malaysia, we deliver The Widest Range of Rubber O-Ring supplier, offering unmatched flexibility in size, material, hardness, and performance customization.
๐ฌ Ultimate Engineering Breakdown of Rubber O-Ring Technology
๐งฉ Fundamental Geometry & Sealing Concept

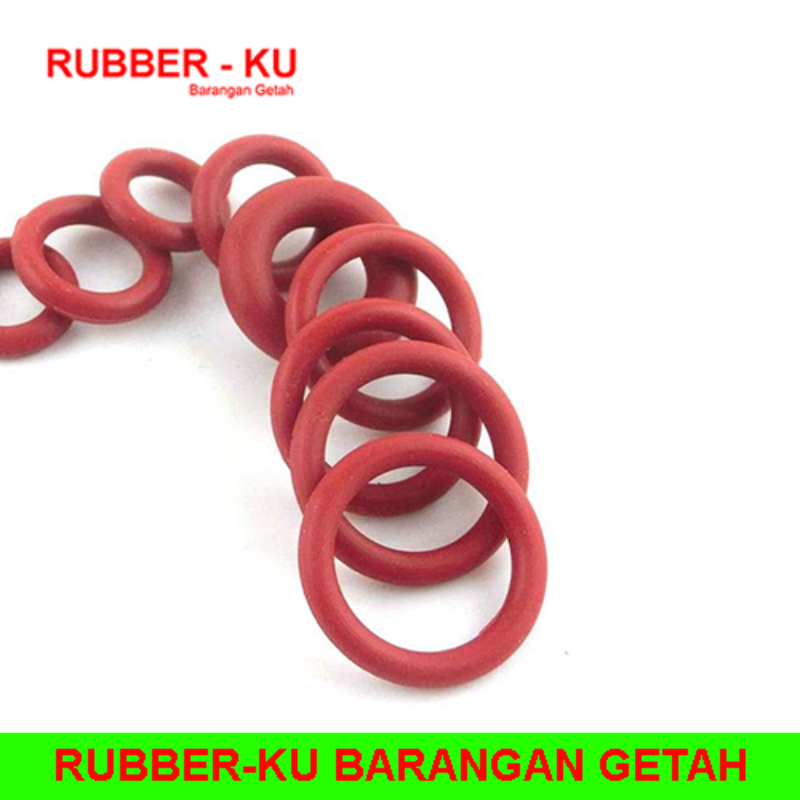

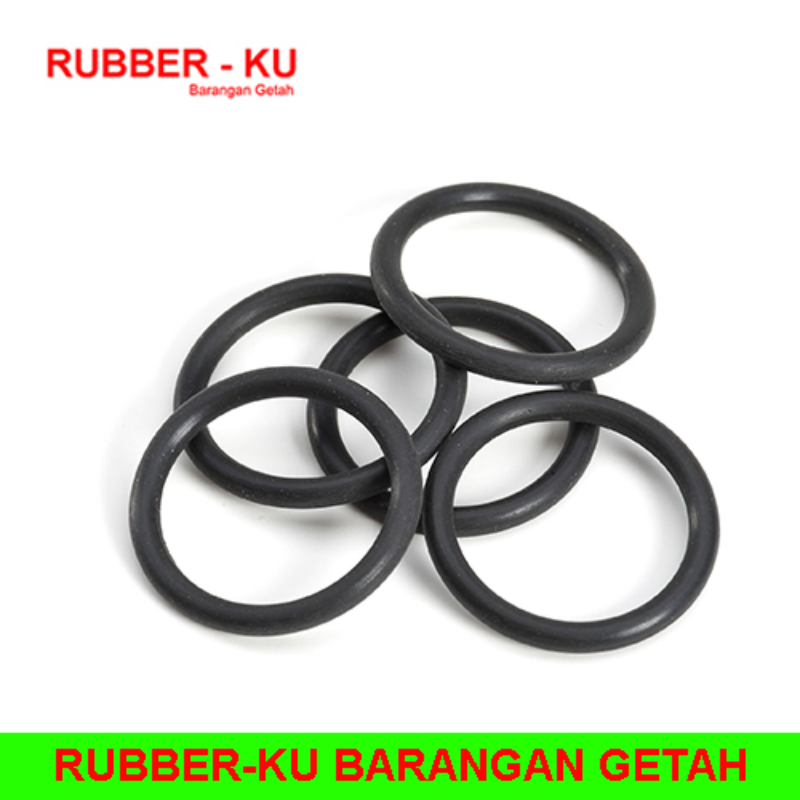

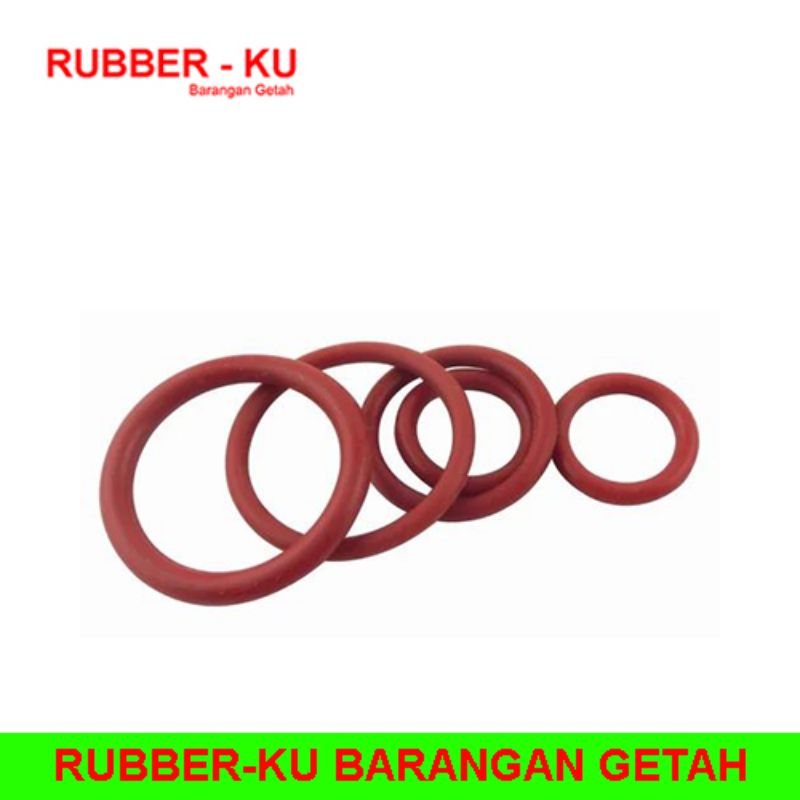

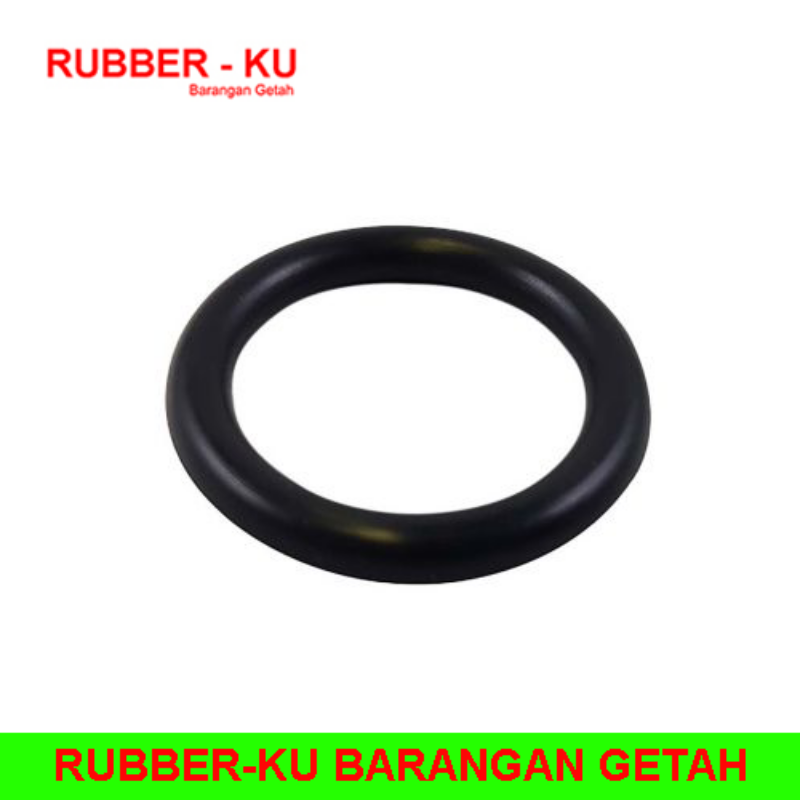

A Rubber O-Ring is a torus-shaped elastomeric seal with a circular cross-section. Despite its simple geometry, it operates on highly sophisticated physical principles involving:
- Elastic deformation
- Contact stress distribution
- Fluid pressure energization
- Material memory recovery
When installed into a gland (groove), the O-ring is compressed between two mating surfaces. This compression generates an initial sealing force known as preload stress.
โ๏ธ Multi-Stage Sealing Mechanism
1. Initial Compression Phase
- O-ring is squeezed typically between 15%–30% of its cross-section
- Generates baseline sealing force even without system pressure
2. Pressure Energization Phase
- Internal system pressure pushes the O-ring against the groove wall
- Increases sealing contact stress proportionally to system pressure
3. Dynamic Response Phase
- In moving systems, the O-ring continuously adapts to:
- Surface irregularities
- Thermal expansion
- Pressure fluctuations
4. Recovery Phase
- Upon pressure release, the elastomer returns to its original shape
- Ensures repeated sealing cycles without permanent deformation
๐ Advanced Groove (Gland) Design Engineering
Precision gland design is critical for optimal O-ring performance:
๐ง Critical Design Parameters
โ๏ธ Squeeze (Compression Ratio)
- Static seals: 20%–30%
- Dynamic seals: 10%–20%
- Too low → leakage
- Too high → excessive wear
โ๏ธ Stretch (ID Expansion)
- Recommended: 1%–5%
- Prevents loose fitting and ensures proper seating
โ๏ธ Gland Fill
- Should not exceed 85% volume to allow for thermal expansion
โ๏ธ Surface Finish
- Recommended Ra:
- Static: 1.6–3.2 µm
- Dynamic: 0.4–0.8 µm
๐งช Polymer Science & Material Engineering (Deep Dive)
๐ฌ Molecular-Level Behavior
Elastomers used in O-rings consist of long-chain polymer molecules with cross-linking:
- Cross-link density affects hardness and elasticity
- Glass transition temperature (Tg) determines low-temperature flexibility
- Polymer backbone stability determines chemical resistance
๐งฌ Material Comparison Matrix
| Property | NBR | EPDM | Silicone | Viton (FKM) |
|---|---|---|---|---|
| Oil Resistance | Excellent | Poor | Moderate | Excellent |
| Water/Steam | Moderate | Excellent | Good | Moderate |
| Temperature | Medium | High | Very High | Extreme |
| Chemical Resistance | Good | Moderate | Moderate | ู ู ุชุงุฒ |
| Ozone/UV | Poor | Excellent | Excellent | Excellent |
๐น NBR (Nitrile Rubber)
- Copolymer of butadiene and acrylonitrile
- Higher ACN content → better oil resistance
- Ideal for automotive, hydraulic, and fuel systems
๐น EPDM
- Saturated backbone → superior weathering resistance
- Not compatible with petroleum oils
- Ideal for water systems and outdoor environments
๐น Silicone (VMQ)
- Flexible Si-O backbone
- Excellent thermal stability
- Low mechanical strength but high elasticity
๐น Viton (FKM)
- Fluorocarbon-based polymer
- Exceptional chemical inertness
- Preferred for extreme industrial environments
๐ก๏ธ Thermal Dynamics & Environmental Resistance
๐ก๏ธ Thermal Expansion & Contraction
- Elastomers expand with heat → risk of overfilling gland
- Contract in cold → risk of leakage
โ๏ธ Low Temperature Effects
- Hardening and loss of elasticity
- Risk of brittle cracking
๐ฅ High Temperature Effects
- Thermal degradation
- Compression set increase
โ ๏ธ Failure Mode Engineering Analysis
โ Compression Set
- Permanent deformation after prolonged compression
- Prevented by using high-grade compounds
โ Extrusion & Nibbling
- Occurs under high pressure with excessive clearance
- Solution: backup rings or higher hardness materials
โ Thermal Degradation
- Caused by excessive heat exposure
- Leads to hardening or cracking
โ Chemical Swelling
- Caused by fluid absorption
- Leads to dimensional instability
โ Spiral Failure
- Occurs in dynamic seals due to twisting
- Prevented by lubrication and proper groove design
๐ญ Precision Manufacturing Excellence
๐ง Production Technologies
- Compression Molding → Cost-effective for large O-rings
- Injection Molding → High precision and automation
- Transfer Molding → Complex geometries
๐ Quality Assurance Protocols
- Dimensional tolerance verification (ISO 3601)
- Hardness testing (Shore A)
- Tensile & elongation testing
- Compression set testing
- Chemical compatibility analysis
๐งผ Post-Processing
- Cryogenic deflashing
- Surface coating (PTFE, silicone oil)
- Cleanroom packaging for sensitive applications
๐ฆ Extended Product Capabilities
As The Widest Range of Rubber O-Ring supplier, RUBBER-KU offers:

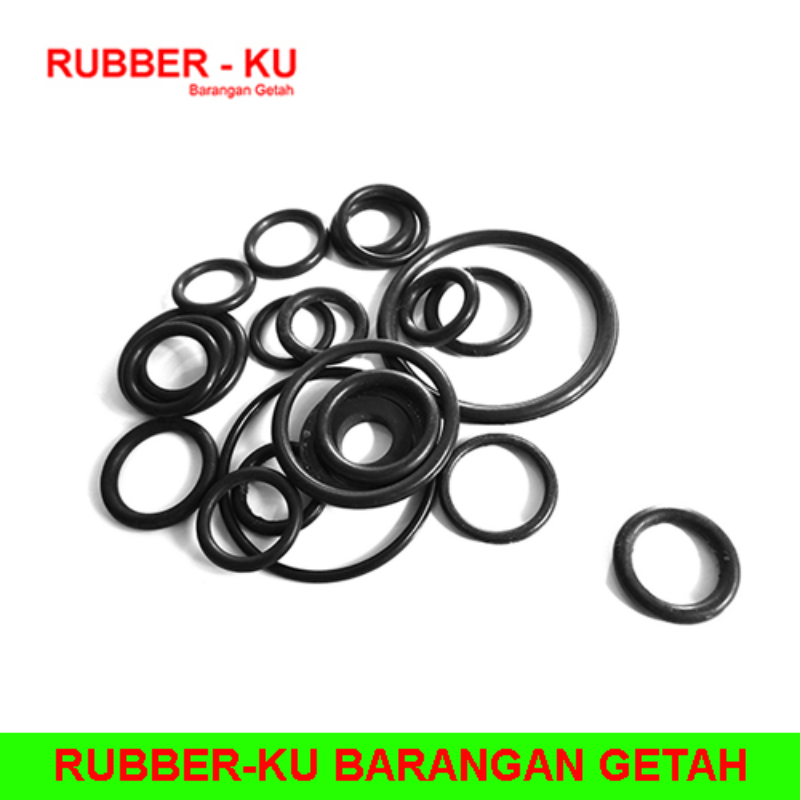

- Standard & metric O-rings
- Micro precision O-rings
- Large diameter seals (The Biggest Rubber O-Ring in Malaysia)
- Encapsulated O-rings (PTFE/FEP coated)
- X-rings (quad rings)
- Backup rings for high-pressure systems
- Food-grade & medical-grade O-rings
- Custom compound formulations
๐ญ Ultra-Broad Industrial Applications
๐ Automotive & EV Industry
- Engine systems, battery sealing, fuel systems
โ๏ธ Hydraulics & Pneumatics
- High-pressure cylinders, valves, compressors
๐ข๏ธ Oil, Gas & Petrochemical
- Extreme chemical and pressure environments
๐ง Water Treatment & Infrastructure
- Pumps, filtration, municipal systems
๐ฅ Medical, Food & Pharmaceutical
- Sterile sealing, FDA-grade materials
๐๏ธ Heavy Industry & Automation
- Robotics, machinery, continuous operation systems
๐ Why RUBBER-KU RUBBER PRODUCTS?
- The Best Rubber O-Ring supplier in Malaysia
- The Largest Rubber O-Ring Manufacturer Malaysia
- The Highest Quality Rubber O-Ring manufacturer
- Market Leader of Rubber O-Ring
- Manufacturer of The Biggest Rubber O-Ring in Malaysia
- Offering The Widest Range of Rubber O-Ring supplier
- Advanced R&D and polymer engineering
- OEM customization and technical consultation
- Fast delivery and competitive pricing
