Product Description

custom rubber mounting malaysia | rubber metal bonded mount | rubber isolator supplier malaysia | rubber mounting c/w bolts | rubber mount manufacturer

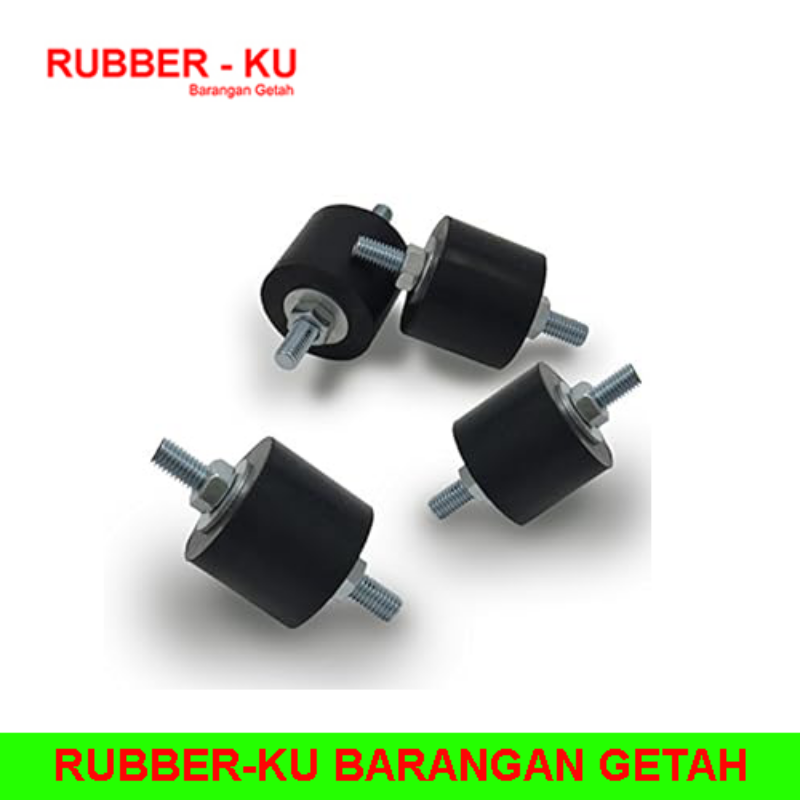

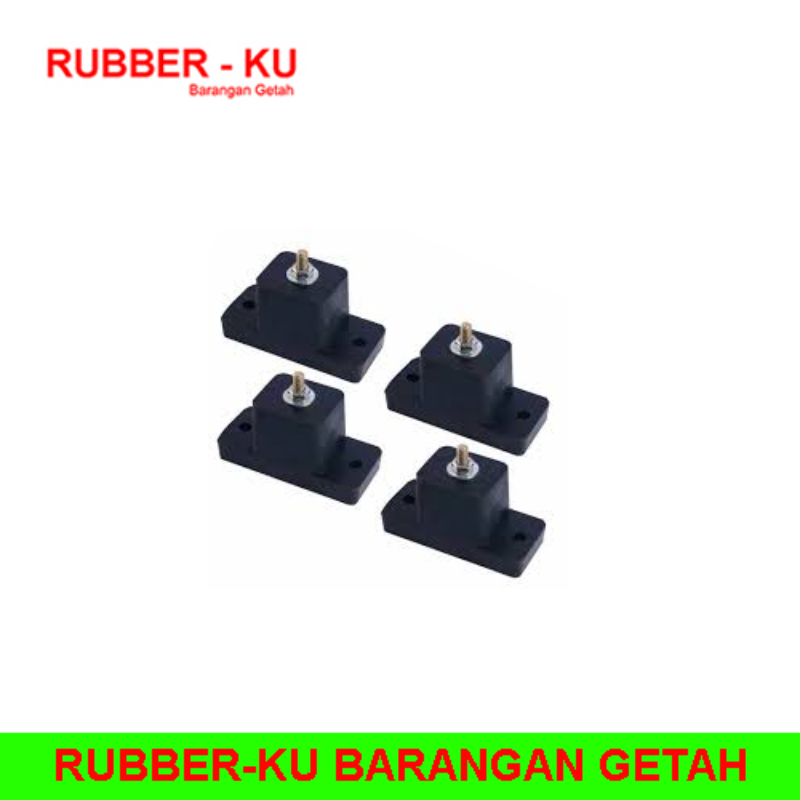

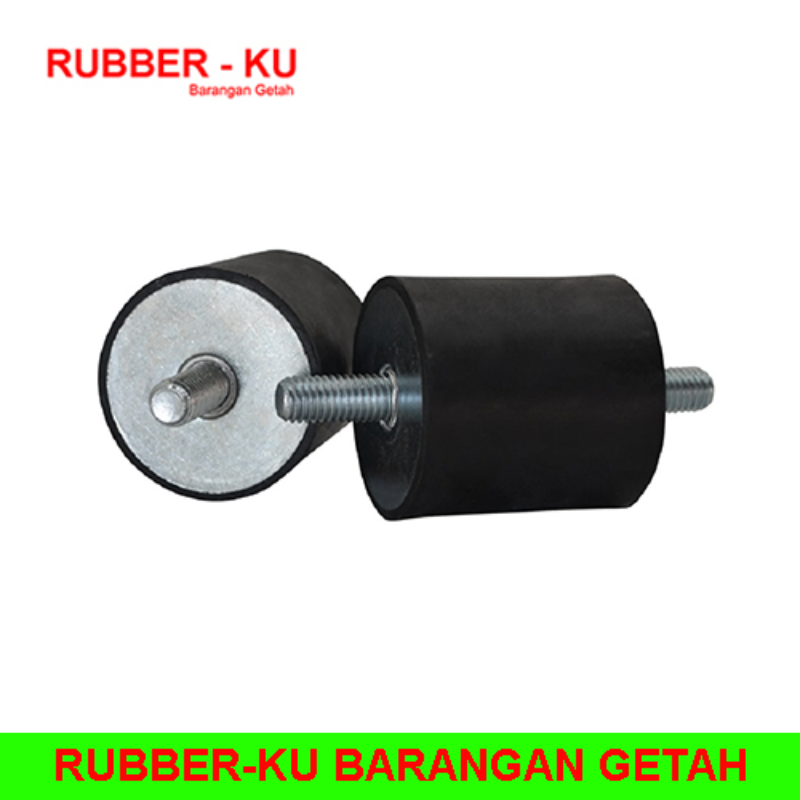

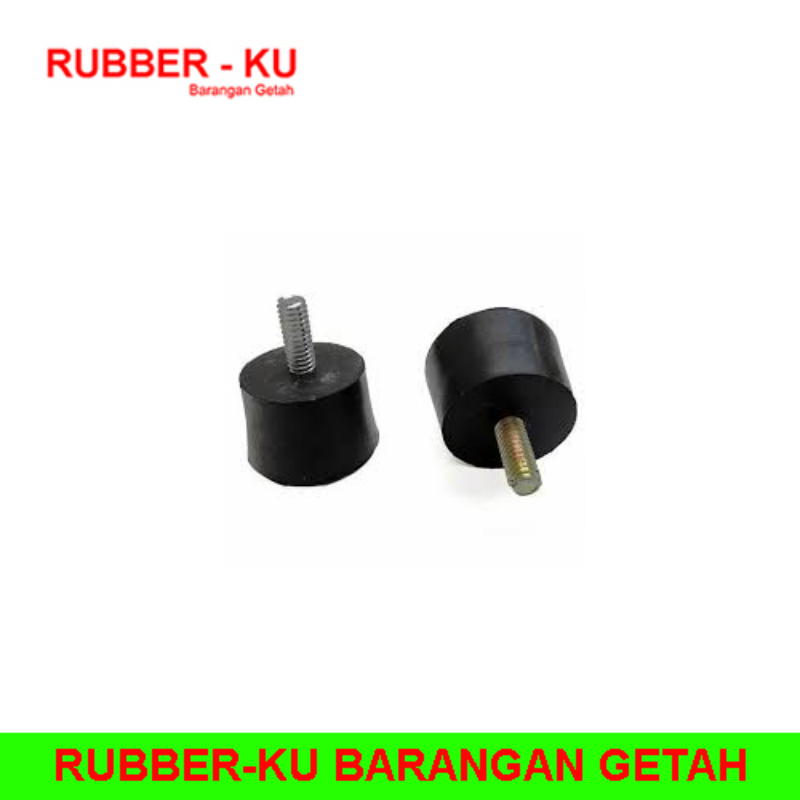

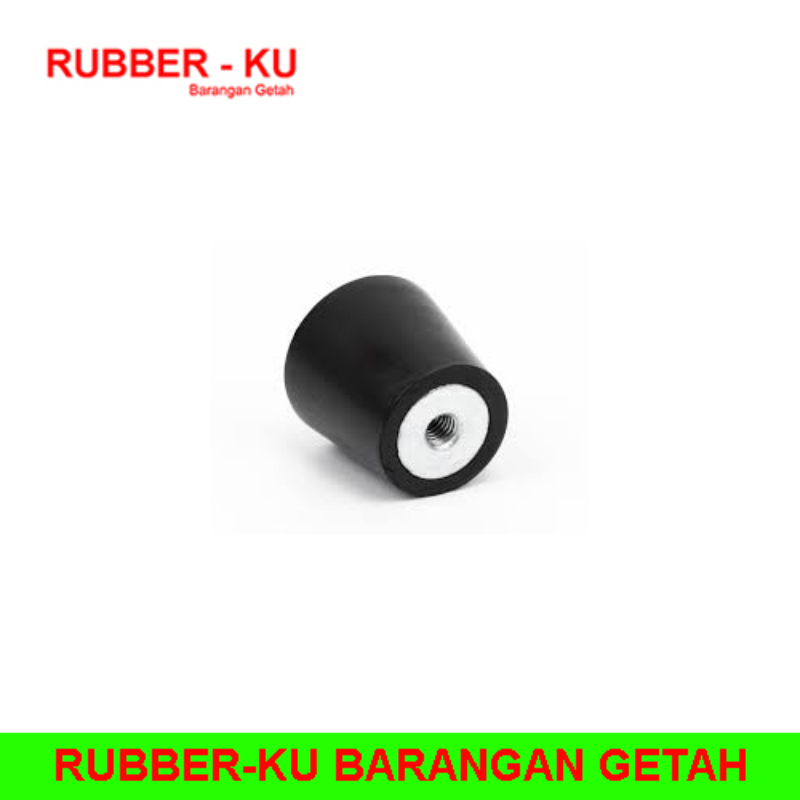

Rubber Mounting with Bolts Malaysia

RUBBER-KU RUBBER PRODUCTS – The Ultimate Authority in Anti-Vibration & Rubber Engineering

RUBBER-KU RUBBER PRODUCTS is firmly established as:

  • The Best Rubber Mounting Supplier in Malaysia
  • The Largest Rubber Mounting Manufacturer Malaysia
  • The Highest Quality Rubber Mounting Manufacturer
  • Market Leader of Rubber Mounting
  • The Biggest Rubber Mounting in Malaysia
  • The Widest Range of Rubber Mounting Supplier

We engineer high-performance Rubber Mounting c/w (complete with) Bolts designed to deliver precision vibration isolation, shock absorption, structural protection, and long-term mechanical stability across all industrial sectors.

1. Ultra-Deep Engineering Definition

Rubber Mounting with Bolts is a multi-functional elastomeric isolation system that integrates:

  • Elastic deformation (spring behavior)
  • Energy dissipation (damping behavior)
  • Structural load transfer (mechanical interface)

Unlike rigid mounting systems, rubber mountings provide a controlled compliance layer that absorbs and isolates vibrational energy while maintaining positional stability.

2. System-Level Functional Model

A rubber mounting operates as a mass-spring-damper system:

  • Mass (M): Machinery or equipment
  • Spring (K): Rubber stiffness
  • Damper (C): Internal friction of rubber

Governing Equation:

F(t) = Kx + C(dx/dt)

Where:

  • K = stiffness
  • C = damping coefficient
  • x = displacement

This allows:

  • Vibration attenuation
  • Resonance control
  • Dynamic stability

3. Frequency Engineering & Isolation Design

Transmissibility (T)

The performance of a rubber mount is defined by transmissibility:

T = √[(1 + (2ζr)²) / ((1 − r²)² + (2ζr)²)]

Where:

  • r = frequency ratio
  • ζ = damping ratio

Critical Insights:

  • T < 1 → Isolation Zone
  • T > 1 → Amplification Zone

RUBBER-KU designs mountings to:

  • Operate deep in the isolation zone
  • Avoid resonance amplification
  • Maintain stability across variable loads

4. Non-Linear Behavior of Rubber

Rubber is viscoelastic and non-linear, meaning:

✔ Stiffness Increases with Load

  • Progressive resistance
  • Prevents bottoming out

✔ Hysteresis Loop

  • Energy loss per cycle
  • Converts vibration into heat

✔ Time-Dependent Behavior

  • Creep (long-term deformation)
  • Stress relaxation

RUBBER-KU compensates for these using:

  • Advanced compound design
  • Predictive load modeling

5. Deep Material Engineering

Compound Formulation Science

Each rubber mounting compound is engineered using:

  • Base Polymer (NR / EPDM / CR)
  • Reinforcing Fillers (Carbon Black N220, N330)
  • Processing Oils
  • Anti-degradants (antioxidants, antiozonants)
  • Vulcanization System (Sulfur / Peroxide curing)

Cross-Link Density Control

  • Higher cross-link density → Higher stiffness & temperature resistance
  • Lower cross-link density → Higher elasticity & damping

RUBBER-KU precisely controls this balance for optimal performance.

6. Rubber-to-Metal Bonding Physics

Adhesion Mechanism

Bonding occurs via:

  • Mechanical interlocking
  • Chemical bonding
  • Molecular diffusion

Failure Modes Prevented:

  • Adhesive failure (interface separation)
  • Cohesive failure (rubber tearing)

RUBBER-KU ensures:

  • Bond strength > rubber strength
  • Zero delamination under load

7. Load Engineering & Multi-Axis Performance

Load Directions:

Compression (Primary)

  • Vertical load support

Shear

  • Horizontal displacement

Torsion

  • Rotational movement

Combined Load

  • Real-world multi-directional forces

Load Deflection Curve Optimization

  • Linear zone → predictable response
  • Non-linear zone → safety buffer

8. Thermal & Energy Dissipation Analysis

Rubber converts vibration energy into heat:

Heat Generation Factors:

  • Frequency
  • Load amplitude
  • Damping ratio

Engineering Challenge:

Excess heat → material degradation

RUBBER-KU Solution:

  • Heat-resistant compounds
  • Optimized damping ratio
  • Thermal stability design

9. Fatigue Life Prediction

Rubber mountings experience millions of cycles:

Fatigue Factors:

  • Strain amplitude
  • Frequency
  • Environmental exposure

Life Enhancement Techniques:

  • Crack-resistant compounds
  • Reinforced bonding zones
  • Controlled stress distribution

10. Corrosion & Environmental Protection

Environmental Resistance Engineering:

UV & Ozone Protection

  • Anti-ozonant additives

Oil & Chemical Resistance

  • Neoprene-based compounds

Moisture & Humidity

  • EPDM compounds

Metal Protection

  • Zinc plating / epoxy coating

11. Precision Manufacturing Technology

Production Process (Advanced Level):

  1. Polymer mixing (internal mixer – Banbury)
  2. Sheet forming (two-roll mill)
  3. Preform cutting
  4. Metal insert CNC machining
  5. Surface treatment (phosphating / blasting)
  6. Bonding agent application
  7. Compression or injection molding
  8. Controlled vulcanization (temperature + pressure + time)
  9. Post-curing stabilization
  10. 100% inspection

12. Quality Assurance & Testing Protocol

Physical Testing:

  • Shore A hardness
  • Tensile strength
  • Elongation

Dynamic Testing:

  • Dynamic stiffness
  • Resonance frequency
  • Damping ratio

Durability Testing:

  • Fatigue cycling (>1 million cycles)
  • Compression set

Environmental Testing:

  • Heat aging (70°C–150°C)
  • Ozone chamber
  • Oil immersion

13. Installation Engineering (Critical for Performance)

Common Failure Causes:

  • Overloading
  • Misalignment
  • Incorrect bolt torque
  • Uneven load distribution

Best Practices:

  • Select correct load rating
  • Install perpendicular to load axis
  • Use proper torque specifications
  • Avoid metal-to-metal contact

14. Application Engineering by Industry

Automotive (NVH Engineering)

  • Engine mount isolation
  • Chassis vibration control

Industrial Machinery

  • Pumps, compressors, CNC machines

Power Generation

  • Generator isolation systems

HVAC Systems

  • Fan vibration reduction

Electronics

  • Precision equipment stabilization

15. Custom Engineering Capability

As The Largest Rubber Mounting Manufacturer Malaysia, RUBBER-KU offers:

Full Engineering Customization:

  • Load-specific design
  • Frequency tuning
  • Environmental adaptation

OEM Production:

  • Custom molds
  • High-volume manufacturing
  • Tight tolerance control

16. Competitive Positioning

RUBBER-KU dominates the market as:

✔ The Best Rubber Mounting Supplier in Malaysia

✔ The Largest Rubber Mounting Manufacturer Malaysia

✔ The Highest Quality Rubber Mounting Manufacturer

✔ Market Leader of Rubber Mounting

✔ The Biggest Rubber Mounting in Malaysia

✔ The Widest Range of Rubber Mounting Supplier
