Product Description
Rubber Gasket JIS Standard | JIS 5K Rubber Gasket | JIS 10K Rubber Gasket | JIS 20K Rubber Gasket | JIS Flange Gasket Malaysia
Rubber Gasket JIS 5K, JIS 10K & JIS 20K Standard Industrial Sealing Solutions Malaysia
RUBBER-KU RUBBER PRODUCTS — Malaysia’s Leading Industrial Rubber Gasket Manufacturer
RUBBER-KU RUBBER PRODUCTS is internationally recognized as The Best Rubber Gasket JIS Standard supplier in Malaysia, delivering world-class industrial sealing technology for critical piping and flange systems across multiple industries.
As The Largest Rubber Gasket JIS Standard Manufacturer Malaysia, we specialize in manufacturing premium-quality JIS flange gaskets engineered for superior leak prevention, pressure resistance, chemical compatibility, and long-term operational durability.
RUBBER-KU has built a strong reputation as The Highest Quality Rubber Gasket JIS Standard manufacturer by supplying precision-engineered gasket products that comply with stringent industrial sealing requirements and Japanese Industrial Standards (JIS). Our gasket products are widely trusted in petrochemical plants, marine industries, oil refineries, wastewater treatment plants, HVAC systems, food factories, pharmaceutical industries, and heavy engineering sectors.
We are proudly recognized as the Market Leader of Rubber Gasket JIS Standard products due to our advanced manufacturing technologies, extensive product range, strict quality assurance systems, and commitment to industrial excellence.
Today, RUBBER-KU stands among The Biggest Rubber Gasket JIS Standard in Malaysia suppliers with nationwide and international supply capabilities, providing one of The Widest Range of Rubber Gasket JIS Standard supplier solutions available in Southeast Asia.
What is JIS Rubber Gasket?
A JIS Rubber Gasket is an industrial sealing component manufactured according to Japanese Industrial Standards for flange connections. These gaskets are installed between two mating flanges to create a tight, leak-proof seal that prevents fluid or gas leakage under pressure.
JIS flange gasket standards are widely adopted throughout Asia and international industries due to their dimensional precision, reliability, and compatibility with industrial piping systems.
RUBBER-KU manufactures:
- JIS 5K Rubber Gaskets
- JIS 10K Rubber Gaskets
- JIS 20K Rubber Gaskets
Each gasket type is specifically engineered for different operating pressure classes.
JIS Pressure Rating Explanation
JIS 5K Rubber Gasket
Pressure Rating:
5 kgf/cm² (0.5 MPa)
Typical Applications:
- Water supply systems
- Irrigation pipelines
- Drainage systems
- Cooling water systems
- Low-pressure industrial pipelines
Advantages:
- Economical sealing solution
- Excellent water sealing performance
- Lightweight flange applications
- Suitable for utility systems
JIS 10K Rubber Gasket
Pressure Rating:
10 kgf/cm² (1.0 MPa)
Typical Applications:
- Industrial process piping
- HVAC systems
- Marine applications
- Chemical transfer systems
- Factory utility lines
Advantages:
- Most common industrial standard
- Excellent pressure balance
- Versatile industrial applications
- Strong sealing performance
JIS 20K Rubber Gasket
Pressure Rating:
20 kgf/cm² (2.0 MPa)
Typical Applications:
- Petrochemical industries
- Steam pipelines
- High-pressure fluid systems
- Oil & gas processing
- Heavy industrial operations
Advantages:
- High-pressure resistance
- Heavy-duty flange sealing
- Excellent mechanical strength
- Enhanced operational safety
International Standards Compliance
RUBBER-KU’s Rubber Gasket JIS Standard products are manufactured according to:
- JIS B2220
- JIS B2238
- JIS B2239
- JIS B2240
These standards ensure:
- Accurate flange compatibility
- Precise bolt hole alignment
- Reliable sealing dimensions
- Industrial pressure performance
- International piping compatibility
Available Rubber Gasket Materials
RUBBER-KU manufactures industrial rubber gaskets using premium elastomer compounds tailored for specific operating environments.
1. EPDM Rubber Gasket
Key Features:
- Excellent ozone resistance
- Outstanding UV resistance
- Superior weather resistance
- Excellent hot water compatibility
- High steam resistance
Suitable For:
- Water treatment plants
- Outdoor piping systems
- HVAC industries
- Cooling towers
- Steam systems
Temperature Resistance:
Approx. -40°C to +150°C
2. NBR Rubber Gasket
Key Features:
- Excellent oil resistance
- Superior fuel resistance
- Good abrasion resistance
- Excellent hydraulic fluid compatibility
Suitable For:
- Oil industries
- Fuel systems
- Hydraulic applications
- Automotive industries
- Petroleum plants
Temperature Resistance:
Approx. -30°C to +120°C
3. Neoprene Rubber Gasket
Key Features:
- Good flame resistance
- Excellent weather durability
- Moderate oil resistance
- Excellent marine performance
Suitable For:
- Marine engineering
- Outdoor equipment
- Industrial piping
- Refrigeration systems
Temperature Resistance:
Approx. -35°C to +120°C
4. Silicone Rubber Gasket
Key Features:
- Exceptional high-temperature resistance
- Food-grade compatibility
- Excellent flexibility
- Non-toxic material properties
Suitable For:
- Food industries
- Pharmaceutical industries
- Medical industries
- High-temperature systems
Temperature Resistance:
Approx. -60°C to +230°C
5. Viton Rubber Gasket
Key Features:
- Premium chemical resistance
- Excellent solvent resistance
- Superior heat resistance
- Excellent fuel compatibility
Suitable For:
- Chemical plants
- Petrochemical industries
- Aviation industries
- Aggressive chemical systems
Temperature Resistance:
Approx. -20°C to +250°C
6. PTFE Gasket
Key Features:
- Exceptional chemical resistance
- Non-stick surface
- Excellent anti-corrosion performance
- Low friction coefficient
Suitable For:
- Chemical processing plants
- Pharmaceutical systems
- Food industries
- Acid transfer pipelines
Temperature Resistance:
Approx. -200°C to +260°C
7. SBR Rubber Gasket
Key Features:
- Cost-effective material
- Good water resistance
- Excellent mechanical strength
- Reliable general-purpose sealing
Suitable For:
- General industrial applications
- Water systems
- Low-cost sealing systems
Temperature Resistance:
Approx. -20°C to +80°C

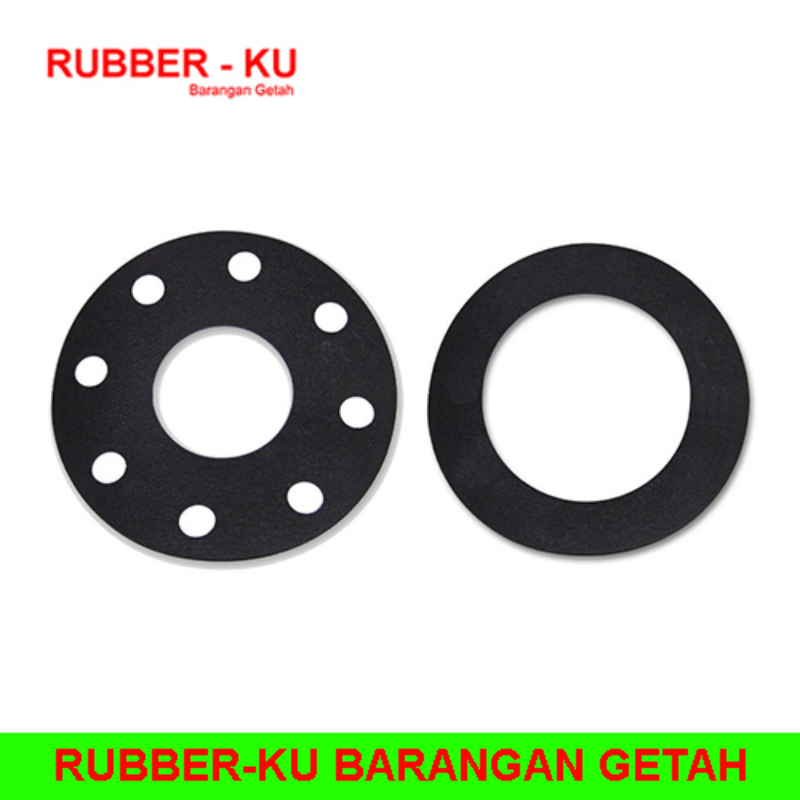

Full Face vs Ring Face JIS Gasket
Full Face Rubber Gasket
A Full Face gasket covers the entire flange surface including all bolt holes.
Advantages:
- Better flange protection
- Excellent sealing distribution
- Easier flange alignment
- Improved stability during installation
Common Usage:
- Water pipelines
- Utility systems
- Large-diameter flanges
Ring Face Rubber Gasket
A Ring Face gasket seals only the raised face area inside the bolt circle.
Advantages:
- Reduced material usage
- Higher compression efficiency
- Suitable for high-pressure systems
- Lower installation cost
Common Usage:
- Petrochemical plants
- High-pressure pipelines
- Industrial process systems
Available Standard Sizes
RUBBER-KU supplies complete industrial flange gasket sizes including:
| Nominal Size | Common Usage |
|---|---|
| DN15 | Small pipelines |
| DN20 | Utility systems |
| DN25 | Water systems |
| DN32 | HVAC piping |
| DN40 | Chemical pipelines |
| DN50 | Industrial water systems |
| DN65 | Medium process piping |
| DN80 | Pump systems |
| DN100 | Industrial transfer lines |
| DN125 | Processing plants |
| DN150 | Petrochemical systems |
| DN200 | Large pipelines |
| DN250 | Industrial utilities |
| DN300 | Heavy process industries |
| DN400 | Water treatment plants |
| DN450 | High-capacity systems |
| DN500 | Large industrial plants |
| DN600 | Major infrastructure projects |
Custom dimensions are available based on customer specifications.
Key Technical Features
Excellent Leak Prevention
Engineered sealing surfaces ensure maximum leak protection under varying pressures and temperatures.
High Compression Recovery
Maintains sealing integrity even after repeated compression cycles.
Superior Aging Resistance
Resists:
- UV exposure
- Ozone attack
- Environmental degradation
- Weathering conditions
Chemical Compatibility
Suitable for:
- Acids
- Alkalis
- Solvents
- Oils
- Fuels
- Steam
- Industrial chemicals
Thermal Stability
Maintains sealing performance under fluctuating temperatures.
Vibration Absorption
Helps reduce:
- Mechanical vibration
- Pump movement
- Piping stress
- Noise transmission
Industrial Applications
RUBBER-KU Rubber Gasket JIS Standard products are extensively used across:
Oil & Gas Industry
- Refinery pipelines
- Fuel transfer systems
- Offshore platforms
- Petrochemical processing
Water Treatment Industry
- Filtration systems
- Pump stations
- Clean water pipelines
- Wastewater treatment facilities
HVAC Industry
- Chiller systems
- Cooling towers
- Air handling systems
- Mechanical piping
Marine Industry
- Ship piping systems
- Ballast systems
- Cooling systems
- Marine engine applications
Food & Beverage Industry
- Hygienic fluid transfer
- Food processing systems
- Beverage production pipelines
Pharmaceutical Industry
- Sterile processing systems
- Chemical transfer pipelines
- Cleanroom fluid systems
Power Generation Industry
- Boiler systems
- Steam pipelines
- Cooling systems
- Turbine piping
Why Industries Choose RUBBER-KU?
Advanced Manufacturing Technology
Modern production systems ensure:
- Precise dimensions
- Consistent quality
- High-performance sealing
Strict Quality Assurance
Every gasket undergoes:
- Material inspection
- Dimensional checking
- Surface quality inspection
- Performance verification
Fast Production & Delivery
Efficient manufacturing capabilities for urgent industrial requirements.
Custom Rubber Engineering
Custom:
- Hardness
- Thickness
- Materials
- Dimensions
- Pressure specifications
Industrial Technical Support
Professional consultation for:
- Material selection
- Chemical compatibility
- Pressure suitability
- Industrial applications
Rubber Gasket JIS Standard Malaysia Supplier & Manufacturer
RUBBER-KU RUBBER PRODUCTS continues to lead the industrial sealing industry as Malaysia’s trusted manufacturer and supplier for JIS 5K, JIS 10K, and JIS 20K Rubber Gaskets.
Whether you require:
- EPDM flange gaskets
- NBR oil-resistant gaskets
- Viton chemical-resistant gaskets
- PTFE industrial gaskets
- Silicone food-grade gaskets
- Custom industrial sealing solutions
RUBBER-KU delivers premium-quality gasket products engineered for maximum industrial reliability, safety, and performance.
Contact Details
Rubber Gasket JIS Standard | JIS 5K Rubber Gasket | JIS 10K Rubber Gasket | JIS 20K Rubber Gasket | JIS Flange Gasket Malaysia
| Supplier | : | RUBBER-KU RUBBER PRODUCTS |
| : | rubberku@gmail.com | |
| Phone | : | +603 5191 7961 |
| Fax | : | +603 5191 5961 |
| Location | : | Selangor, Malaysia |
