Product Description
JIS10K PTFE Gasket Malaysia | JIS10K Full Face Rubber Gasket | JIS10K Ring Face Rubber Gasket | JIS10K Industrial Flange Gasket | JIS10K Pipeline Rubber Gasket
Technical Specifications & Engineering Details of RUBBER-KU Rubber Gasket JIS 5K, JIS 10K & JIS 20K Standard
Industrial Technical Overview
RUBBER-KU RUBBER PRODUCTS manufactures high precision Rubber Gasket JIS 5K, JIS 10K, and JIS 20K Standard engineered for industrial flange sealing systems requiring superior dimensional accuracy, reliable sealing integrity, pressure resistance, and long-term operational durability.
Our JIS standard industrial rubber gaskets are manufactured according to Japanese Industrial Standards including:
- JIS B2220
- JIS B2238
- JIS B2239
- JIS B2240
These standards define:
- Flange dimensions
- Bolt hole configuration
- Pressure classifications
- Gasket dimensions
- Sealing surface compatibility
- Industrial flange matching requirements
RUBBER-KU industrial gaskets are designed to ensure precise flange fitment and stable sealing performance under demanding industrial conditions.
JIS Pressure Classification Technical Details
JIS 5K Technical Specification
Pressure Rating
Approx. 5 kgf/cm² (0.5 MPa)
Typical Operating Application
Low-pressure industrial piping systems.
Common System Usage
- Water pipelines
- Drainage systems
- Utility systems
- Cooling water systems
- Irrigation piping
Technical Characteristics
- Lower bolt load requirement
- Suitable for lower flange stress applications
- Economical sealing solution
- Excellent flexibility for utility pipelines
JIS 10K Technical Specification
Pressure Rating
Approx. 10 kgf/cm² (1.0 MPa)
Typical Operating Application
Medium-pressure industrial systems.
Common System Usage
- Industrial process piping
- HVAC systems
- Water treatment facilities
- Palm oil processing systems
- Mechanical engineering systems
Technical Characteristics
- Stronger sealing load capability
- Improved flange stability
- Suitable for industrial operational pressure
- Widely used industrial standard
JIS 20K Technical Specification
Pressure Rating
Approx. 20 kgf/cm² (2.0 MPa)
Typical Operating Application
High-pressure industrial applications.
Common System Usage
- Petrochemical plants
- Steam systems
- Oil & gas facilities
- Chemical process lines
- High-pressure pumping systems
Technical Characteristics
- Higher bolt tightening force
- Enhanced sealing stress capability
- Superior pressure handling performance
- Heavy-duty industrial application suitability
JIS Gasket Construction Types

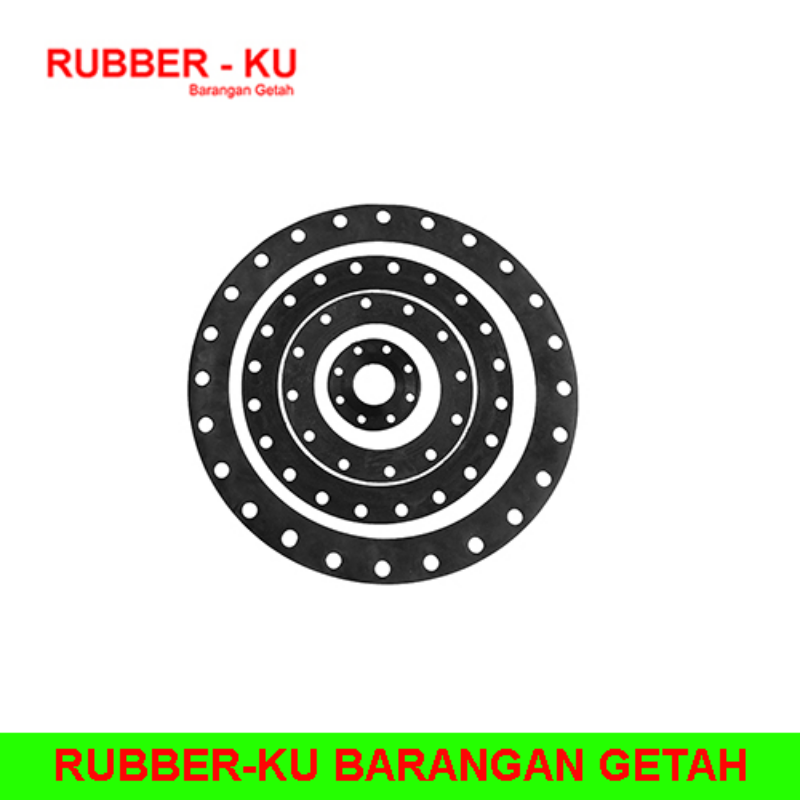

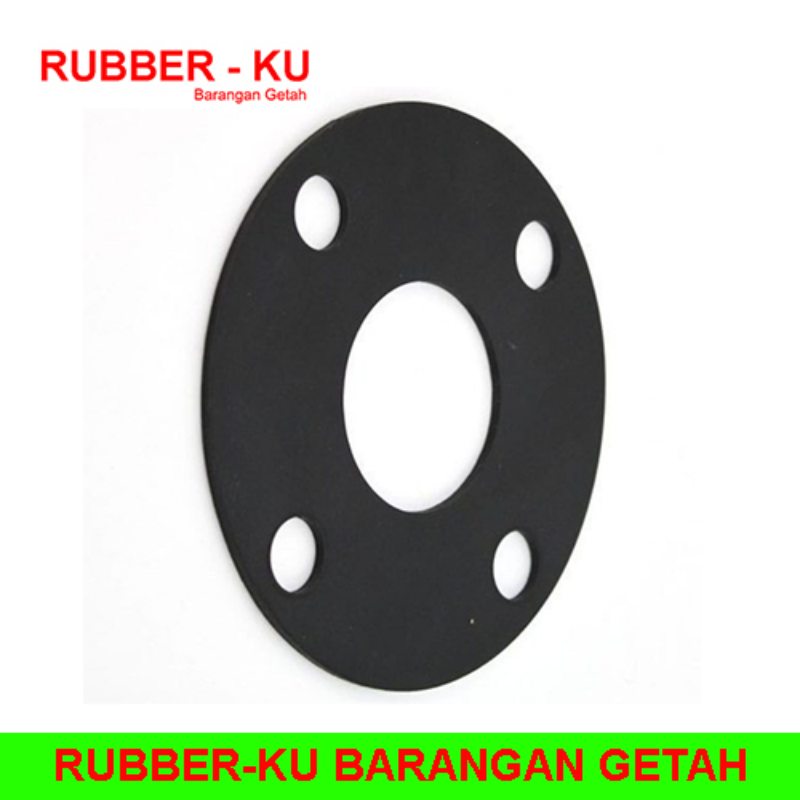

Full Face Rubber Gasket Technical Design
Full Face gaskets cover the complete flange face including bolt holes.
Technical Features:
- Full flange surface coverage
- Integrated bolt hole alignment
- Uniform pressure distribution
- Improved gasket centering
- Enhanced flange protection
Engineering Advantages:
- Better load balancing
- Reduced flange distortion risk
- Lower leakage probability
- Easier installation accuracy
Common Thickness:
- 1.5mm
- 2mm
- 3mm
- 5mm
- Custom thickness available
Ring Face Rubber Gasket Technical Design
Ring Face gaskets seal only around the pipe bore section.
Technical Features:
- Internal sealing configuration
- Compact sealing area
- Concentrated sealing stress
- Reduced material consumption
Engineering Advantages:
- Lower cost
- Suitable for raised face flanges
- Easier replacement
- Efficient pressure concentration
Available Industrial Rubber Materials
RUBBER-KU manufactures JIS rubber gaskets using multiple industrial-grade elastomer compounds depending on operating environment requirements.
EPDM Rubber Technical Properties
Material Type
Ethylene Propylene Diene Monomer
Technical Characteristics
- Excellent weather resistance
- Outstanding ozone resistance
- Superior UV resistance
- Excellent steam resistance
- Good chemical compatibility
Temperature Range
Approx. -40°C to +150°C
Hardness Range
Typically 60–80 Shore A
Compression Set Resistance
Excellent
Suitable Media
- Water
- Steam
- Mild chemicals
- Air systems
- Cooling water
Unsuitable Media
- Petroleum oils
- Hydrocarbon solvents
NBR Rubber Technical Properties
Material Type
Nitrile Butadiene Rubber
Technical Characteristics
- Excellent oil resistance
- Strong fuel resistance
- Good abrasion resistance
- Strong mechanical properties
Temperature Range
Approx. -20°C to +120°C
Hardness Range
Typically 60–90 Shore A
Suitable Media
- Hydraulic oil
- Diesel
- Petrol
- Lubricants
- Fuel systems
Unsuitable Media
- Strong ozone exposure
- Outdoor UV applications
Neoprene Rubber Technical Properties
Material Type
Chloroprene Rubber
Technical Characteristics
- Balanced oil resistance
- Good weather resistance
- Strong ozone resistance
- Excellent aging stability
Temperature Range
Approx. -30°C to +120°C
Suitable Media
- Water systems
- Refrigerants
- Moderate chemicals
- Outdoor environments
Silicone Rubber Technical Properties
Material Type
Silicone Elastomer
Technical Characteristics
- Excellent thermal stability
- Outstanding flexibility
- Food-grade compatibility
- Excellent aging resistance
Temperature Range
Approx. -60°C to +250°C
Suitable Media
- Food processing systems
- Pharmaceutical applications
- High-temperature systems
- Medical applications
PTFE Technical Properties
Material Type
Polytetrafluoroethylene
Technical Characteristics
- Extremely high chemical resistance
- Non-reactive structure
- Low friction coefficient
- Excellent corrosion resistance
Temperature Range
Approx. -100°C to +260°C
Suitable Media
- Acids
- Alkalis
- Solvents
- Corrosive chemicals
Viton Rubber Technical Properties
Material Type
Fluoroelastomer
Technical Characteristics
- Excellent chemical resistance
- Superior heat resistance
- Outstanding oil compatibility
- High sealing reliability
Temperature Range
Approx. -20°C to +250°C
Suitable Media
- Fuels
- Oils
- Aggressive chemicals
- High-temperature fluids
Industrial Engineering Performance
Compression Strength
RUBBER-KU JIS gaskets are engineered to withstand flange bolt compression without structural failure.
Benefits:
- Stable sealing pressure
- Long-term compression recovery
- Reduced leakage risk
- Better sealing consistency
Tensile Strength
Industrial rubber compounds are selected for high tensile durability.
Technical Advantages:
- Better resistance against tearing
- Improved installation durability
- Longer operational lifespan
- Reduced gasket deformation
Elongation Properties
High elongation capability allows gasket flexibility under flange loading.
Benefits:
- Improved flange surface adaptation
- Better vibration resistance
- Enhanced sealing contact area
Chemical Compatibility Engineering
Material selection is based on compatibility with industrial operating media.
Compatible Media Include:
- Water
- Steam
- Oil
- Fuel
- Hydraulic fluid
- Acids
- Alkalis
- Solvents
- Industrial chemicals
Correct material selection improves:
- Sealing lifespan
- Chemical resistance
- Safety performance
- Operational stability
Thermal Expansion Resistance
RUBBER-KU industrial gaskets maintain sealing performance during thermal expansion and contraction cycles.
Engineering Benefits:
- Stable sealing under temperature fluctuation
- Reduced gasket cracking risk
- Improved operational reliability
Flange Surface Adaptability
The gasket surface conforms effectively to flange irregularities.
Advantages:
- Improved sealing contact
- Better leak prevention
- Reduced surface imperfection issues
Vibration Resistance Engineering
Rubber elastomer structure naturally absorbs mechanical vibration.
Suitable Equipment:
- Pumps
- Compressors
- Rotating machinery
- HVAC systems
- Industrial motors
Benefits:
- Reduced flange loosening
- Improved sealing integrity
- Lower maintenance frequency
Bolt Load Distribution
Full Face gasket design distributes bolt tightening force evenly across flange surfaces.
Engineering Benefits:
- Reduced stress concentration
- Better sealing stability
- Improved flange protection
- Lower deformation risk
Industrial Thickness Options
RUBBER-KU provides multiple gasket thickness configurations depending on industrial application requirements.
Common Thickness Options:
- 1.5mm
- 2mm
- 3mm
- 5mm
- 6mm
- Custom thickness available
Thickness selection depends on:
- Pressure class
- Flange condition
- Media type
- Operating temperature
- Surface irregularities
Industrial Size Availability
Available JIS gasket sizes include:
- DN15
- DN20
- DN25
- DN32
- DN40
- DN50
- DN65
- DN80
- DN100
- DN125
- DN150
- DN200
- DN250
- DN300
- DN400
- DN450
- DN500
- DN600
Custom industrial dimensions are available for OEM and engineering projects.
Precision Manufacturing Technology
RUBBER-KU utilizes advanced industrial fabrication systems including:
- CNC cutting
- Precision die cutting
- Waterjet cutting
- Compression moulding
- Industrial sheet fabrication
- Custom gasket engineering
This ensures:
- Accurate dimensions
- Consistent material quality
- Precise bolt hole alignment
- Superior flange compatibility
Industrial Quality Control
Each gasket undergoes strict technical inspection procedures.
Inspection Includes:
- Dimensional accuracy verification
- Thickness measurement
- Hardness testing
- Surface inspection
- Material consistency analysis
- Bolt hole alignment inspection
- Flange compatibility testing
OEM & Custom Technical Fabrication
RUBBER-KU provides custom gasket engineering solutions including:
- Custom inner diameter
- Custom outer diameter
- Custom bolt hole configuration
- Special hardness formulation
- Non-standard flange dimensions
- Special industrial compounds
- Large diameter gasket fabrication
Technical Advantages of RUBBER-KU JIS Rubber Gasket
High Precision Manufacturing
Excellent flange fitting accuracy.
Superior Sealing Engineering
Reliable leak prevention performance.
Excellent Material Stability
Long operational durability.
Multi-Industry Compatibility
Suitable for various industrial systems.
Wide Material Availability
Customized for specific industrial media.
Excellent Pressure Performance
Stable operation under different pressure classes.
Enhanced Chemical Resistance
Suitable for aggressive industrial environments.
Strong Temperature Capability
Reliable performance under thermal stress.
RUBBER-KU — Industrial Rubber Gasket Engineering Specialist Malaysia
For high precision Rubber Gasket JIS 5K, JIS 10K, and JIS 20K Standard with superior industrial engineering performance, choose RUBBER-KU RUBBER PRODUCTS — Malaysia’s trusted industrial rubber gasket manufacturer and sealing technology specialist.
