HRC Rubber Coupling Malaysia – Technical Specifications & Industrial Applications
RUBBER-KU RUBBER PRODUCTS
The Best HRC Rubber Coupling Supplier in Malaysia
RUBBER-KU RUBBER PRODUCTS is proudly known as the Best HRC Rubber Coupling supplier in Malaysia, delivering precision-engineered flexible couplings designed to meet strict industrial performance requirements.
As the Largest HRC Rubber Coupling Manufacturer Malaysia and Market Leader of HRC Rubber Coupling, we supply the Highest Quality HRC Rubber Coupling manufacturer solutions with the Widest Range of HRC Rubber Coupling supplier coverage across Malaysia.

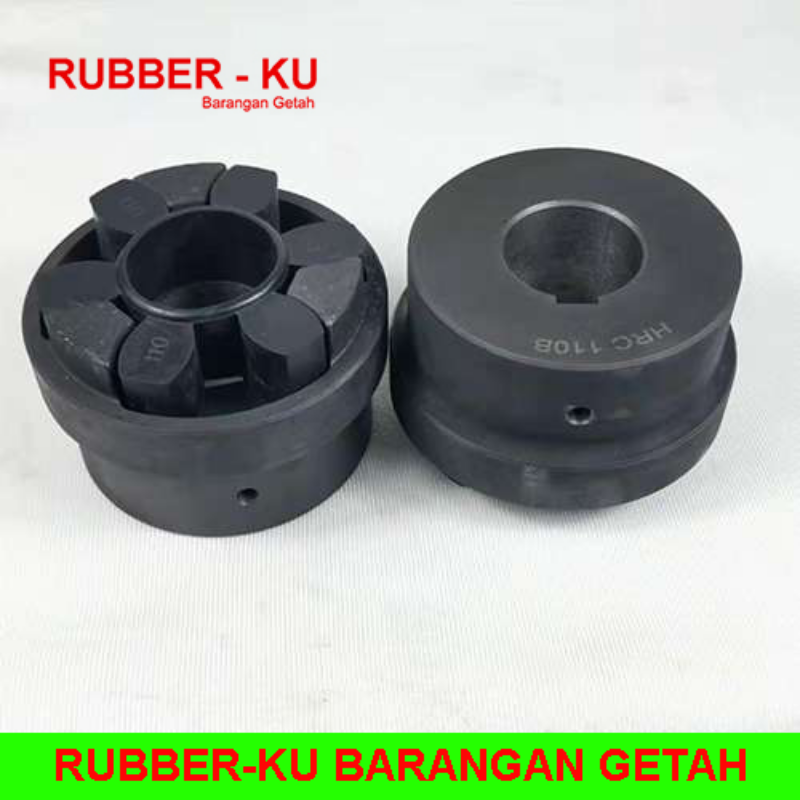

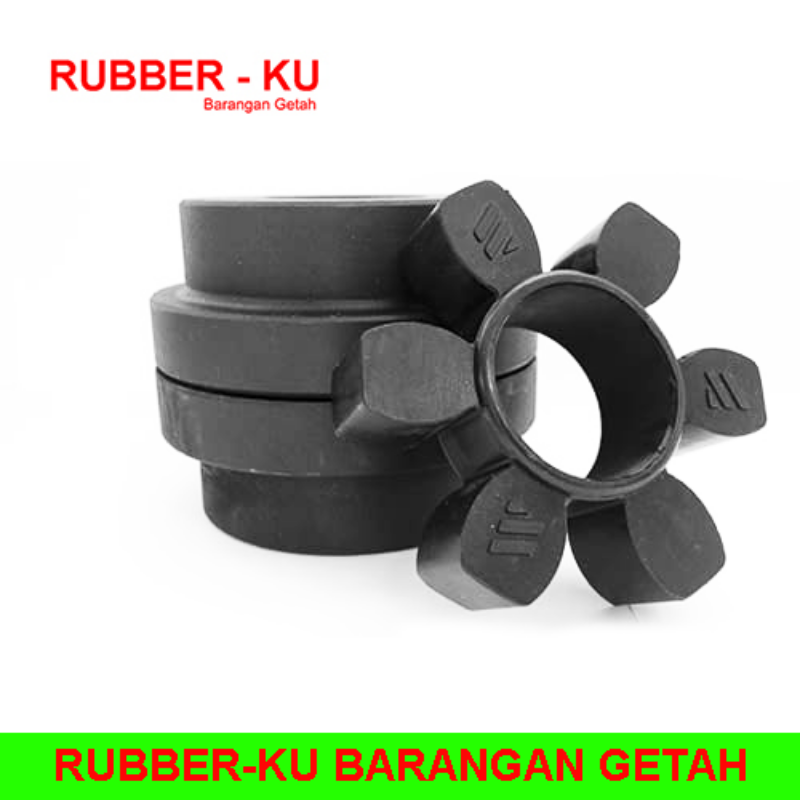

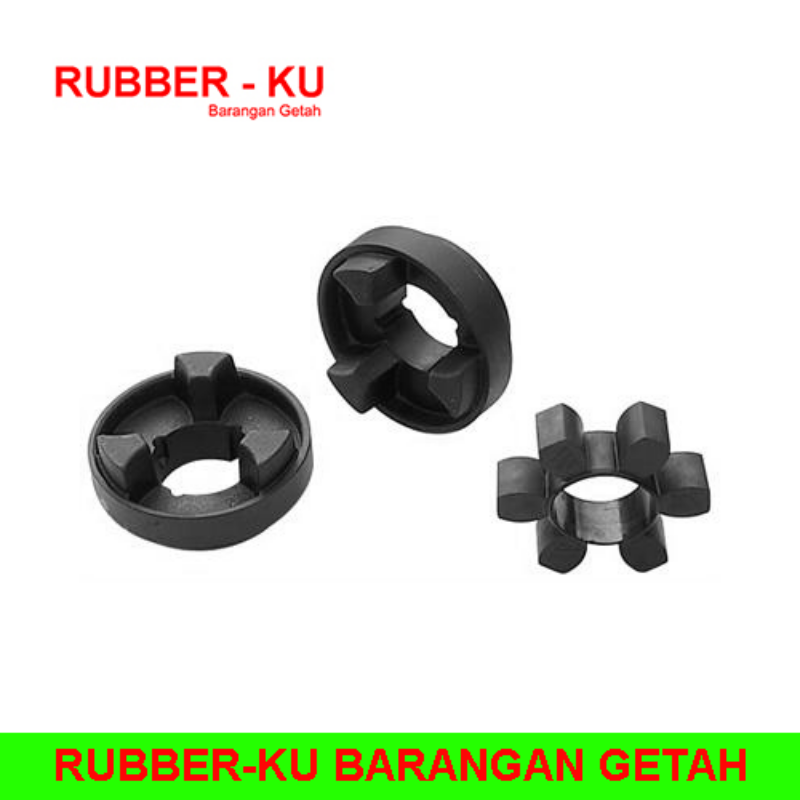

Technical Overview of HRC Rubber Coupling
The HRC Rubber Coupling is a torsionally flexible coupling system designed to transmit torque while compensating for misalignment and minimizing mechanical stress.
It operates using a compression-driven elastomeric element, making it more durable and efficient than conventional coupling systems.
Detailed Technical Specifications
1. Torque Transmission Characteristics
- Designed for medium to high torque transmission
- Provides uniform torque distribution
- Minimizes backlash and rotational play
Engineering Impact:
- Smooth power transmission
- Reduced mechanical shock
- Improved equipment reliability
2. Misalignment Tolerance
HRC couplings can accommodate:
- Angular Misalignment: up to ~1° (depending on size)
- Parallel Misalignment: typically up to 0.4 mm – 0.6 mm
- Axial Movement: limited float capability
Result:
- Reduced installation precision requirement
- Lower stress on bearings and shafts
- Increased system lifespan
3. Speed Capability
- Suitable for low to medium rotational speeds
- Balanced design allows stable operation
- Minimal vibration at rated RPM
Typical Use:
- Motor-driven systems
- Pump and gearbox applications
4. Temperature & Environmental Resistance
Nitrile Rubber (NBR) Element:
- Operating temperature: -20°C to +100°C
- Oil-resistant and grease-resistant
- Suitable for industrial environments
Performance Advantage:
- Reliable in Malaysia’s hot and humid climate
- Resistant to contamination from lubricants
5. Material Engineering
Flange Material:
- High-grade cast iron (GG25 or equivalent)
- High tensile strength
- Excellent wear resistance

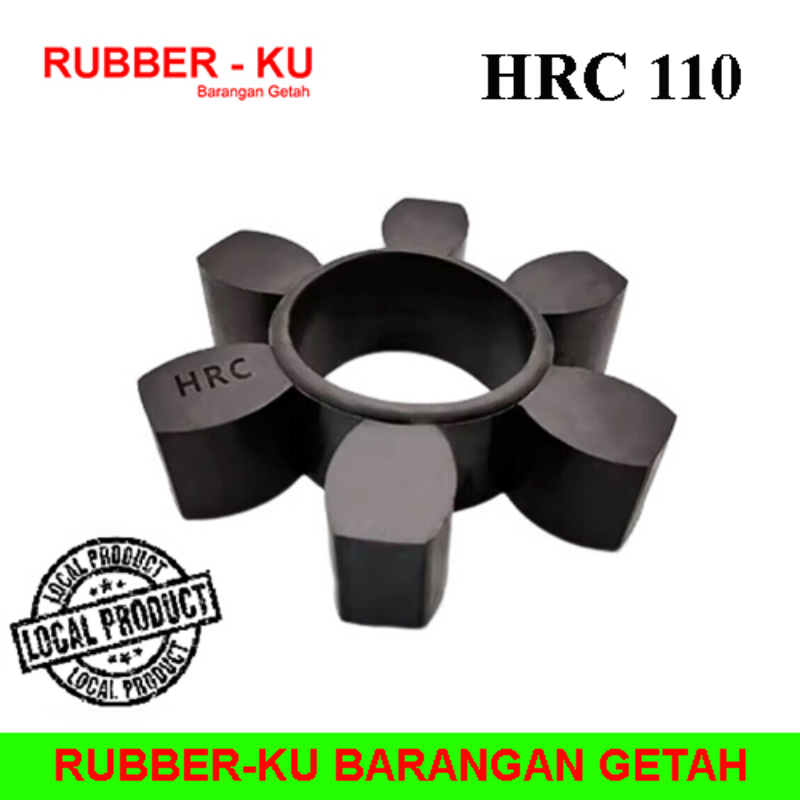

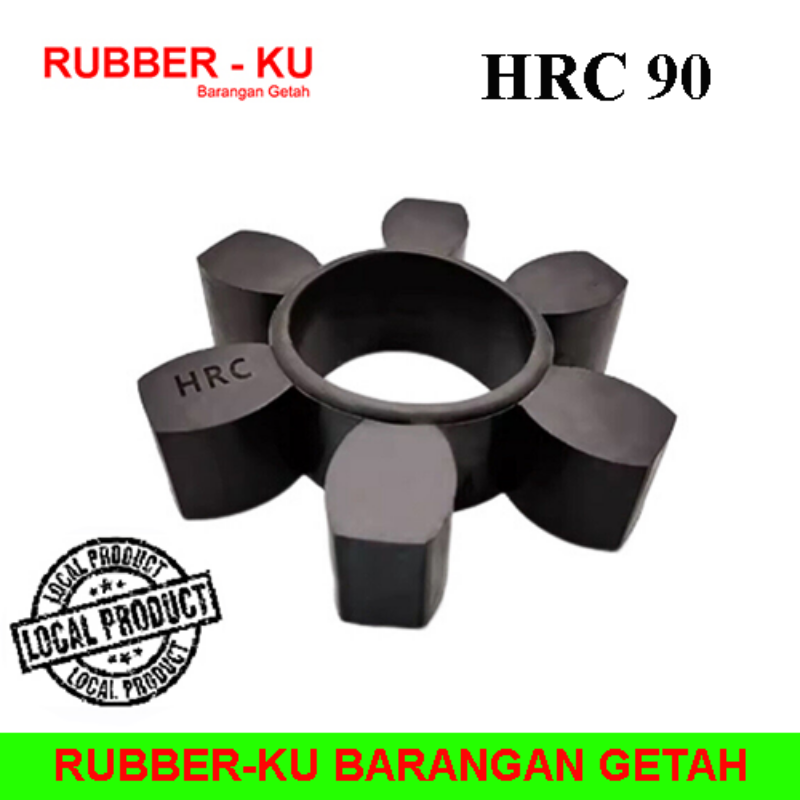

Rubber Element:
- NBR (Nitrile Butadiene Rubber)
- High elasticity and fatigue resistance
Optional Upgrades:
- EPDM (for heat/water resistance)
- Polyurethane (for higher torque applications)
6. Bore & Shaft Compatibility
HRC couplings support multiple shaft configurations:
Bore Types:
- Pilot Bore (custom machining)
- Finished Bore (ready-to-install with keyway)
- Taper Lock Bush (standardized mounting system)
Shaft Compatibility:
- Metric shafts
- Imperial shafts
- Custom shaft sizes
7. Mounting & Hub Configuration
F Type (Face Mount)
- Internal bush installation
- Reduces overhung load
- Suitable for compact assemblies
H Type (Hub Mount)
- External bush installation
- Easier access for maintenance
B Type (Finished Bore)
- Direct shaft mounting
- Cost-effective solution
8. Dynamic Performance Characteristics
- Excellent torsional flexibility
- High damping coefficient
- Low vibration transmission factor
Benefit:
- Protects connected equipment
- Enhances system stability
- Reduces resonance issues
9. Maintenance & Service Life
- Maintenance-free operation (no lubrication required)
- Easy element replacement
- Long operational lifespan under normal conditions
Downtime Advantage:
- Reduced maintenance frequency
- Lower operational cost
Available Sizes – Engineering Coverage
RUBBER-KU supplies a full range:
- HRC 90
- HRC 110
- HRC 130
- HRC 150
- HRC 180
- HRC 230
Each size is engineered for specific:
- Torque ratings
- Shaft diameters
- Industrial applications
Industrial Applications in Malaysia
1. Palm Oil Industry
Widely used in:
- Screw presses
- Conveyors
- Sterilizer systems
Advantage:
- Handles shock loads and continuous operation
- Resistant to oily environments
2. Pump & Water Treatment Systems
Applications:
- Centrifugal pumps
- Water treatment plants
- Irrigation systems
Benefit:
- Smooth flow transmission
- Reduced vibration
3. Conveyor & Material Handling Systems
Used in:
- Belt conveyors
- Roller systems
- Bulk material handling
Advantage:
- Absorbs start-stop impact loads
- Improves system lifespan
4. Compressor & HVAC Systems
Applications:
- Air compressors
- Cooling towers
- Ventilation systems
Benefit:
- Reduces vibration and noise
- Improves efficiency
5. Cement, Quarry & Heavy Industries
Used in:
- Crushers
- Mixers
- Rotary equipment
Advantage:
- Handles heavy torque
- Resistant to harsh environments
6. Power Transmission Systems
Installed in:
- Electric motor drives
- Gearbox connections
Benefit:
- Efficient torque transfer
- Reduced mechanical stress
7. Marine & Offshore Applications (Malaysia)
Applications:
- Pump drives
- Auxiliary systems
Advantage:
- Compact design
- Reliable under demanding conditions
Application Advantages Summary
RUBBER-KU HRC Rubber Couplings provide:
- High reliability in continuous operation
- Excellent shock load handling
- Reduced vibration and noise
- Flexible installation options
- Long service life in harsh environments
Why RUBBER-KU Leads in Technical Excellence
RUBBER-KU is:
- The Best HRC Rubber Coupling supplier in Malaysia
- The Largest HRC Rubber Coupling Manufacturer Malaysia
- The Highest Quality HRC Rubber Coupling manufacturer
- Market Leader of HRC Rubber Coupling
- The Biggest HRC Rubber Coupling supplier in Malaysia
- The Widest Range of HRC Rubber Coupling supplier
Because we deliver:
- Engineering precision
- Proven industrial performance
- Reliable technical support
- Competitive pricing
Conclusion
The RUBBER-KU HRC Rubber Coupling is a technically advanced, highly reliable, and cost-efficient solution for industrial power transmission in Malaysia.
With superior mechanical performance, flexible design, and wide application coverage, it remains the preferred choice for engineers, contractors, and industrial operators nationwide.
