RUBBER-KU RUBBER PRODUCTS – Industrial Leader for BS10 Table E Rubber Gaskets
RUBBER-KU RUBBER PRODUCTS is Malaysia’s trusted industrial manufacturer and supplier of premium quality Rubber Gasket Table E Standard sealing solutions engineered for reliable flange sealing applications across water treatment systems, sewage pipelines, industrial processing plants, marine piping systems, HVAC systems, utility infrastructure, oil & gas industries, and general industrial piping networks.
With extensive industrial manufacturing expertise and advanced gasket fabrication capabilities, RUBBER-KU RUBBER PRODUCTS is proudly recognized as:
- The Best Rubber Gasket Table E Standard supplier in Malaysia
- The Largest Rubber Gasket Table E Standard Manufacturer Malaysia
- The Highest Quality Rubber Gasket Table E Standard manufacturer
- Market Leader of Rubber Gasket Table E Standard
- The Biggest Rubber Gasket Table E Standard in Malaysia
- The Widest Range of Rubber Gasket Table E Standard supplier
We manufacture high-precision Table E flange gaskets using premium industrial-grade materials including:
- SBR Rubber
- Neoprene Rubber
- EPDM Rubber
- NBR Rubber
- Silicone Rubber
- PTFE
- Viton Rubber
Our gasket solutions are engineered to provide:
- Leak-proof sealing
- Long-term durability
- Excellent compression recovery
- Superior flange compatibility
- Chemical resistance
- Weather resistance
- High sealing reliability
What is a Rubber Gasket Table E Standard?
A Rubber Gasket Table E Standard is a precision-engineered mechanical sealing component designed specifically for use with BS10 Table E flanges, a British Standard flange specification widely used in industrial piping systems.
The gasket is positioned between two flange faces to:
- Prevent liquid leakage
- Prevent gas leakage
- Maintain pressure integrity
- Improve system sealing efficiency
- Absorb vibration
- Compensate for flange surface irregularities
BS10 Table E standards define:
- Bolt hole quantity
- Bolt hole positioning
- Pitch Circle Diameter (PCD)
- Flange outside diameter
- Gasket outside diameter
- Pipe nominal bore sizing
This ensures perfect alignment and sealing compatibility between the gasket and flange system.
Understanding BS10 Table E Flange Standards
What is BS10?
BS10 refers to the British Standard 10 flange specification, commonly used in:
- Waterworks systems
- Industrial utility pipelines
- Marine piping
- Sewage infrastructure
- Low-pressure applications
BS10 flanges are categorized into:
- Table A
- Table B
- Table C
- Table D
- Table E
- Table F
- Table H
- Table J
Among these, Table E is one of the most commonly used standards for low-pressure industrial piping systems.
Characteristics of Table E Flanges
Table E flanges are generally used for:
- Water applications
- Low-pressure fluid transfer
- Non-critical industrial systems
- Utility pipelines
Key flange parameters include:
- Specific PCD dimensions
- Fixed bolt hole quantity
- Standardized flange diameters
- Accurate gasket seating areas
This standardization allows easy interchangeability across piping systems.
Types of Table E Rubber Gaskets

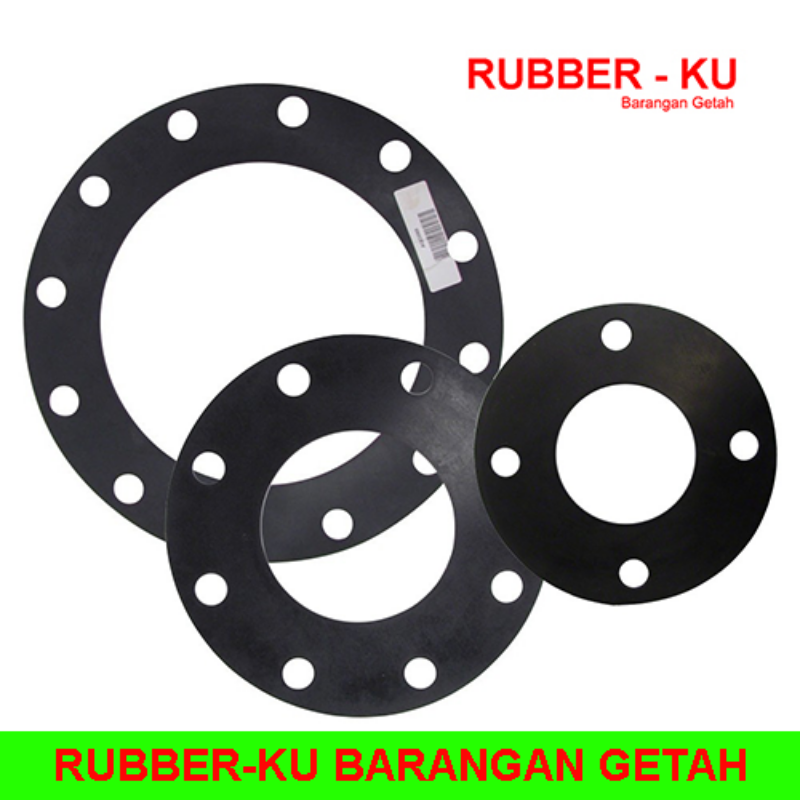

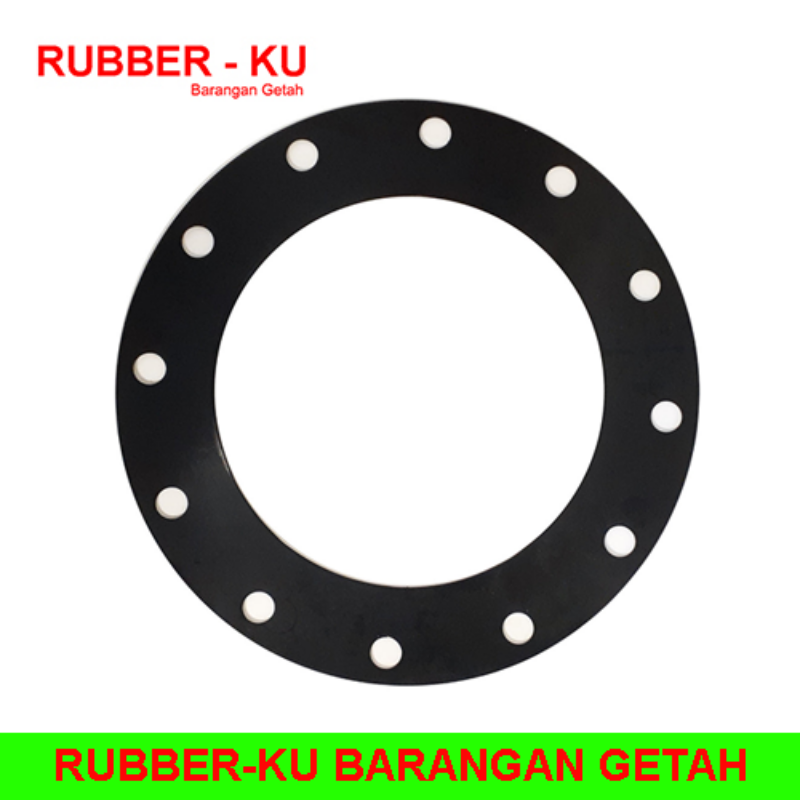

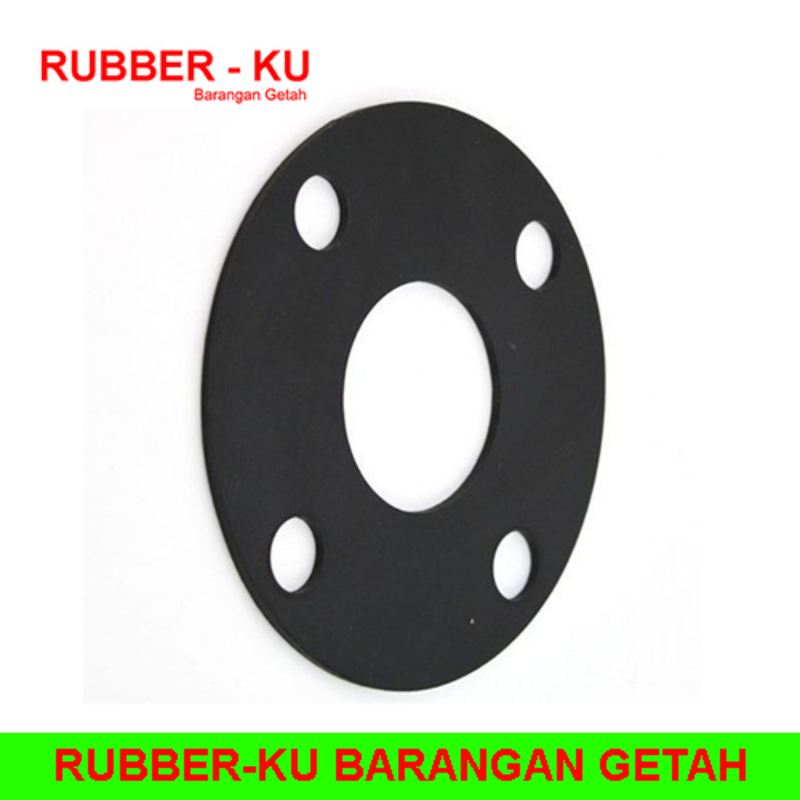

1. Full Face (FF) Table E Gasket
Full Face gaskets cover the entire flange face and include bolt holes aligned precisely with the flange bolt pattern.
Full Face Gasket Features
- Full flange surface coverage
- Bolt hole alignment
- Better flange protection
- Enhanced sealing stability
- Improved pressure distribution
Full Face Gasket Advantages
- Reduces flange corrosion risk
- Protects flange surfaces
- Improves installation alignment
- Better sealing under vibration
Typical Applications
- Water pipelines
- Industrial process piping
- Sewage systems
- Marine systems
- Utility infrastructure
2. IBC (Inside Bolt Circle) Table E Gasket
IBC gaskets are positioned inside the bolt circle and only contact the sealing surface around the pipe bore.
IBC Gasket Features
- Compact sealing design
- Reduced material usage
- Lower gasket weight
- Faster installation
IBC Gasket Advantages
- Cost-effective solution
- Suitable for lower pressure systems
- Easier handling
Common Applications
- Low-pressure piping
- General utility systems
- Water distribution systems
Detailed Material Options for Table E Rubber Gaskets
SBR Rubber Gasket
Material Characteristics
SBR (Styrene Butadiene Rubber) offers:
- Good abrasion resistance
- Excellent water resistance
- Cost efficiency
- Good flexibility
Applications
- Water systems
- Drainage pipelines
- General industrial sealing
Neoprene Rubber Gasket
Material Characteristics
Neoprene provides:
- Excellent weather resistance
- Good oil resistance
- UV stability
- Ozone resistance
Applications
- Marine systems
- Outdoor pipelines
- HVAC systems
EPDM Rubber Gasket
Material Characteristics
EPDM offers:
- Superior weather resistance
- Hot water resistance
- UV resistance
- Ozone resistance
- Aging resistance
Applications
- Water treatment plants
- Outdoor piping systems
- Cooling systems
- HVAC installations
NBR Rubber Gasket
Material Characteristics
NBR (Nitrile Rubber) provides:
- Excellent oil resistance
- Fuel resistance
- Good compression properties
- Chemical resistance
Applications
- Oil pipelines
- Fuel transfer systems
- Industrial machinery
Silicone Rubber Gasket
Material Characteristics
Silicone rubber offers:
- High temperature resistance
- Excellent flexibility
- Non-toxic properties
- Thermal stability
Applications
- Food processing
- Pharmaceutical systems
- High-temperature piping
PTFE Gasket
Material Characteristics
PTFE provides:
- Exceptional chemical resistance
- Non-stick properties
- Low friction coefficient
- Broad temperature tolerance
Applications
- Chemical plants
- Corrosive media systems
- Pharmaceutical processing
Viton Rubber Gasket
Material Characteristics
Viton offers:
- Outstanding heat resistance
- Superior chemical resistance
- Fuel resistance
- Long-term durability
Applications
- Petrochemical systems
- Chemical processing
- High-temperature industrial piping
Technical Specifications of Rubber Gasket Table E Standard
| Property | Specification |
|---|---|
| Standard | BS10 Table E |
| Gasket Type | Full Face / IBC |
| Material Options | SBR, EPDM, NBR, Neoprene, Silicone, PTFE, Viton |
| Pipe Size Range | 1/2” to 24” and above |
| Shape | Circular |
| Pressure Application | Low to Medium Pressure |
| Temperature Resistance | Material dependent |
| Sealing Type | Mechanical flange sealing |
| Installation Position | Between flanges |
| Manufacturing Method | Cutting / Moulding |
Standard Table E Gasket Sizes
Available sizes include:
- 1/2” Table E gasket
- 3/4” Table E gasket
- 1” Table E gasket
- 1-1/4” Table E gasket
- 1-1/2” Table E gasket
- 2” Table E gasket
- 2-1/2” Table E gasket
- 3” Table E gasket
- 4” Table E gasket

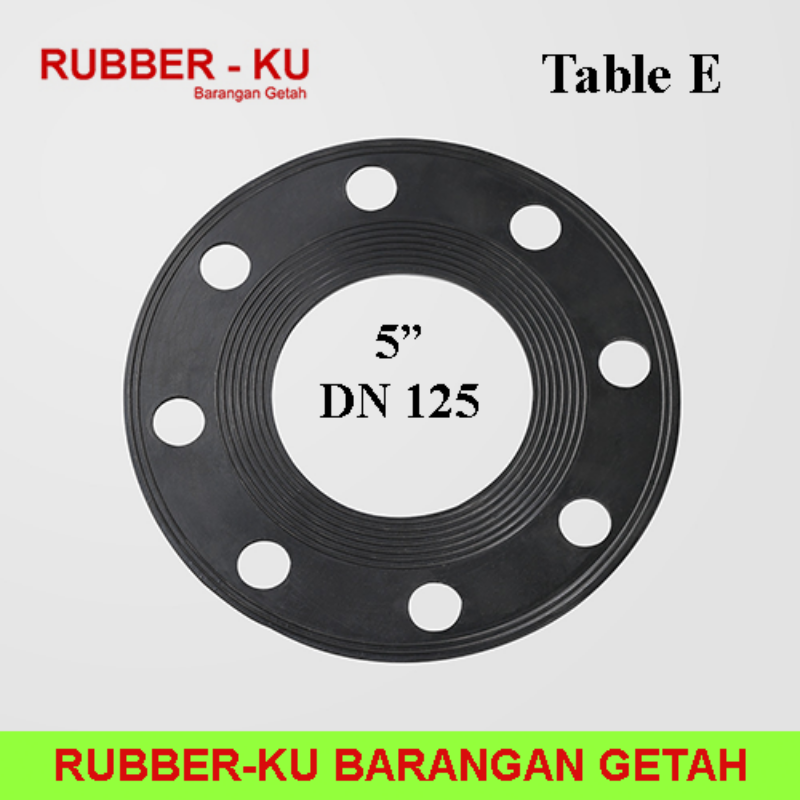

- 5” Table E gasket
- 6” Table E gasket
- 8” Table E gasket
- 10” Table E gasket
- 12” Table E gasket
- 14” Table E gasket
- 16” Table E gasket
- 18” Table E gasket
- 20” Table E gasket
- 24” Table E gasket
Custom dimensions are also available upon request.
Example of Table E Gasket Dimensions
3-Inch Table E Gasket Example
Typical specifications:
- Nominal Size: 3”
- Pitch Circle Diameter (PCD): 146mm
- Outside Diameter (OD): 184mm
- Precise bolt hole alignment
- Accurate flange seating dimensions
These dimensions ensure perfect compatibility with BS10 Table E flanges.
Key Features of RUBBER-KU Table E Gaskets
Precision Dimensional Accuracy
Manufactured according to strict BS10 specifications ensuring:
- Perfect flange compatibility
- Accurate bolt alignment
- Reliable sealing performance
Excellent Compression Recovery
Our gasket materials maintain:
- Sealing force retention
- Shape recovery
- Long-term compression stability
Superior Leak Prevention
Designed to prevent:
- Water leakage
- Gas leakage
- Pressure loss
- Fluid seepage
Weather & Environmental Resistance
Especially for EPDM and Neoprene materials:
- UV resistant
- Ozone resistant
- Weatherproof
- Outdoor durable
Chemical Resistance
Material options available for:
- Oil resistance
- Fuel resistance
- Acid resistance
- Chemical compatibility
Temperature Stability
Suitable for:
- Hot water systems
- Outdoor temperature fluctuations
- Industrial thermal conditions
Easy Installation & Maintenance
Features:
- Accurate bolt hole alignment
- Simple flange assembly
- Reduced installation time
- Easy replacement
Detailed Industrial Applications
Water Supply Systems
Used extensively in:
- Municipal water pipelines
- Pump stations
- Water treatment facilities
- Utility infrastructure
Sewage & Wastewater Systems
Applications include:
- Sewer pipelines
- Wastewater treatment plants
- Drainage systems
- Effluent systems
Marine & Offshore Applications
Used in:
- Ship piping systems
- Offshore utility pipelines
- Marine cooling systems
Especially common in British-standard marine systems.
Industrial Processing Plants
Suitable for:
- Utility pipelines
- Process water systems
- Cooling systems
- General industrial piping
HVAC & Cooling Systems
Applications include:
- Chilled water systems
- HVAC pipelines
- Cooling towers
- Air handling systems
Oil & Gas Industry
NBR and Viton gaskets are ideal for:
- Fuel systems
- Oil transfer pipelines
- Petrochemical applications
Chemical Processing Industry
PTFE and Viton are suitable for:
- Corrosive chemical systems
- Acid transfer pipelines
- Chemical process plants
Manufacturing Process of Table E Gaskets
RUBBER-KU RUBBER PRODUCTS utilizes:
- Precision gasket cutting
- CNC gasket fabrication
- Compression moulding
- Die cutting systems
- Industrial rubber processing
This ensures:
- Consistent dimensions
- Clean finishing
- Accurate bolt alignment
- Reliable sealing quality
Quality Control & Inspection
Every gasket undergoes:
- Dimensional inspection
- Material verification
- Surface quality checks
- Compression testing
- Visual inspection
- Flange compatibility checks
Why Choose RUBBER-KU RUBBER PRODUCTS?
Advanced Manufacturing Expertise
Specialized industrial gasket manufacturing capabilities.
Wide Material Selection
Comprehensive gasket material options available.
OEM & Custom Manufacturing
Custom gasket fabrication according to specifications.
Large Production Capacity
Bulk supply for industrial projects and export markets.
Strict Quality Standards
Reliable industrial-grade gasket performance.
Technical Support
Professional gasket material and application consultation.
