Flat Ring Gasket | Raised Face Gasket Technical Specifications & Engineering Performance

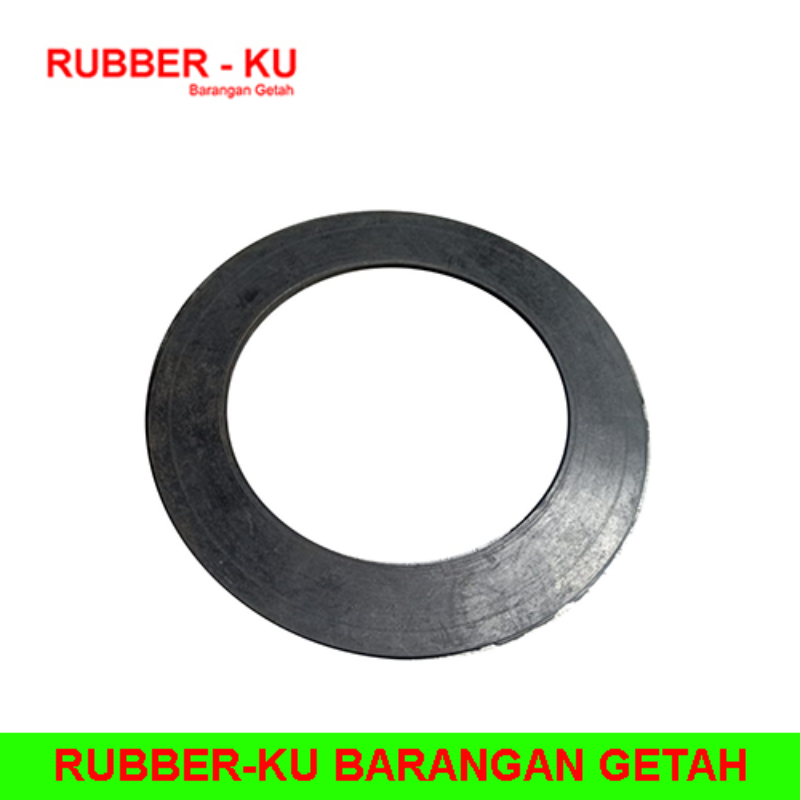

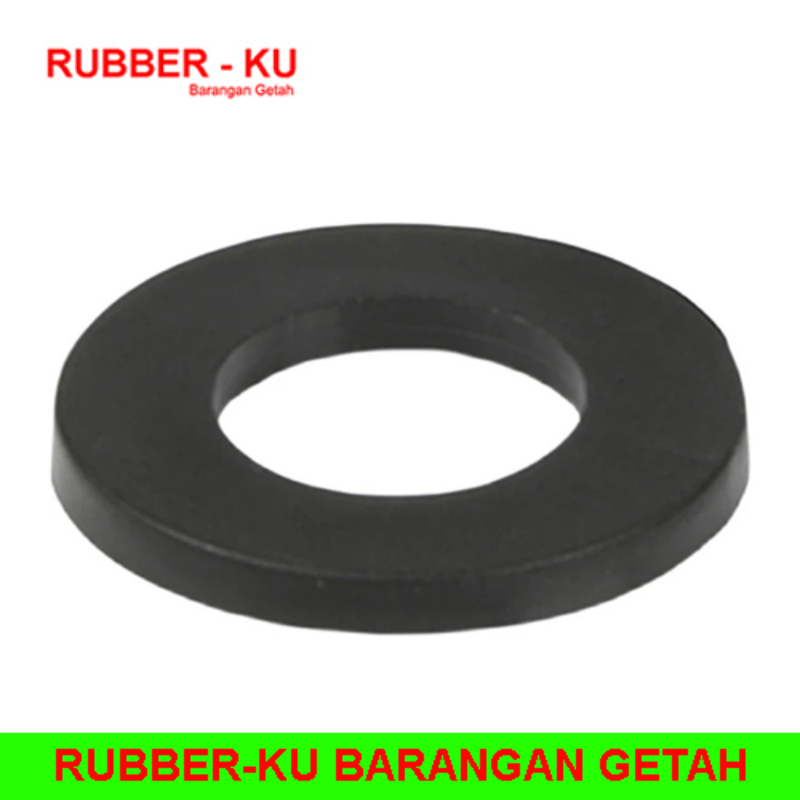

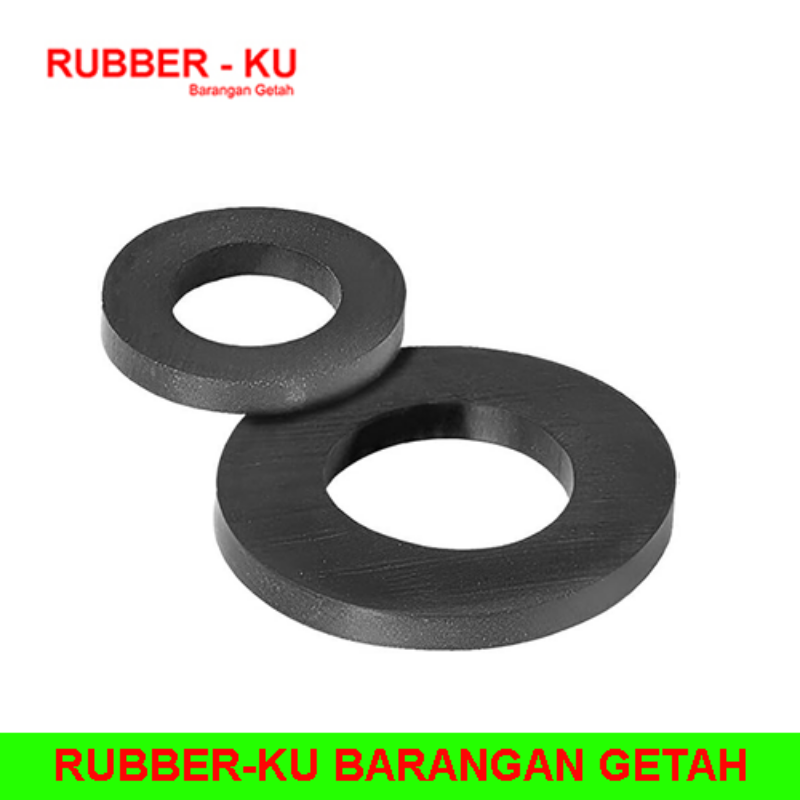

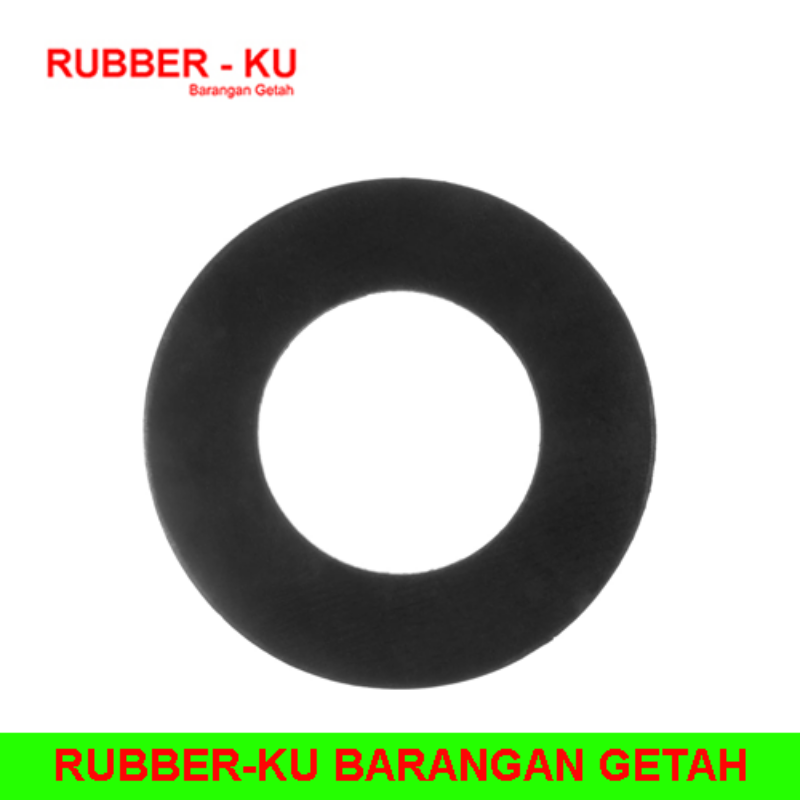

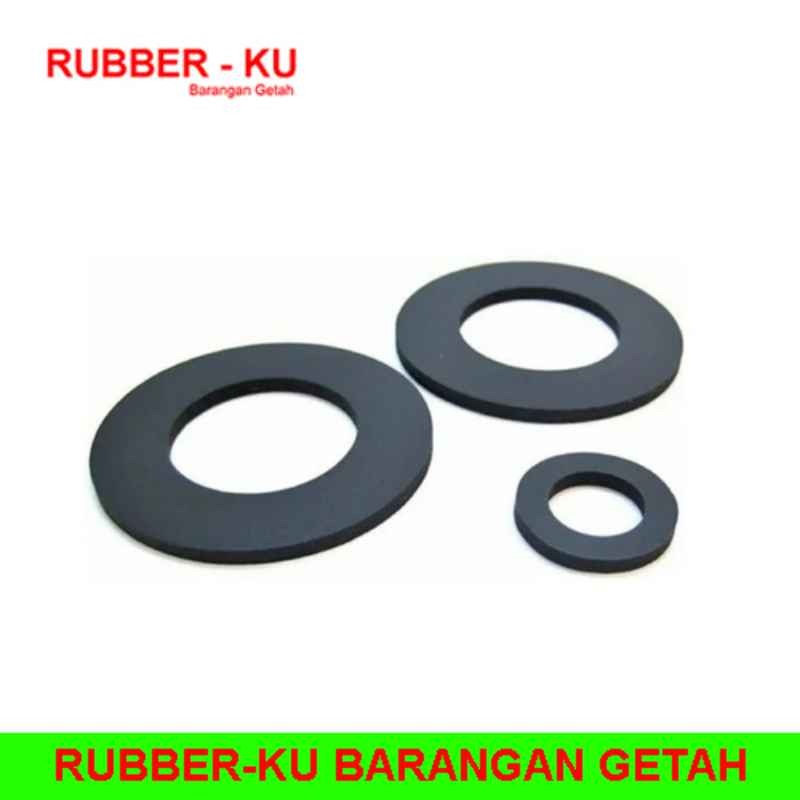

Advanced Technical Design of Flat Ring Gasket / Raised Face Gasket
RUBBER-KU Flat Ring Gaskets and Raised Face Gaskets are engineered to provide reliable sealing performance under a wide range of pressure, temperature, vacuum, vibration, and chemical exposure conditions. Manufactured from premium industrial-grade elastomers and PTFE materials, these gaskets are designed to meet the stringent requirements of industrial piping systems, process equipment, pumps, valves, pressure vessels, heat exchangers, storage tanks, and flange assemblies.
Our gasket designs are based on proven sealing engineering principles that maximize gasket stress, improve sealing efficiency, and reduce the risk of leakage in critical applications.
Technical Function of a Raised Face Gasket
A Raised Face Gasket is specifically designed to fit within the raised sealing area of a Raised Face (RF) flange.
When flange bolts are tightened:
- Bolt load is transferred directly to the gasket.
- The gasket compresses uniformly.
- The material flows into flange surface irregularities.
- Leakage paths are sealed.
- Internal pressure is contained.
Unlike Full Face Gaskets, Raised Face Gaskets concentrate the available bolt load onto a smaller sealing area, producing higher gasket seating stress and improved sealing performance.
Engineering Advantages
✔ Higher gasket compression force
✔ Increased sealing stress
✔ Better flange load efficiency
✔ Improved blowout resistance
✔ Enhanced pressure retention
✔ Reduced leakage risk
✔ Superior long-term sealing stability
Available Material Specifications
Natural Rubber (NR)
Technical Properties
- Polymer Type: Natural Rubber
- Hardness Range: 40°–80° Shore A
- Density: 0.92–1.10 g/cm³
- Tensile Strength: Up to 25 MPa
- Elongation at Break: Up to 700%
- Compression Set: Good
- Abrasion Resistance: Excellent
Temperature Range
-20°C to +70°C
Suitable Media
- Water
- Air
- Mild chemicals
- Non-aggressive fluids
Neoprene (CR)
Technical Properties
- Polymer Type: Chloroprene Rubber
- Hardness Range: 40°–90° Shore A
- Density: 1.20–1.50 g/cm³
- Tensile Strength: 8–20 MPa
- Elongation at Break: 200–600%
- Ozone Resistance: Excellent
- Weather Resistance: Excellent
Temperature Range
-30°C to +100°C
Suitable Media
- Water
- Refrigerants
- Mild oils
- Outdoor environments
NBR (Nitrile Rubber)
Technical Properties
- Polymer Type: Acrylonitrile Butadiene Rubber
- Hardness Range: 40°–90° Shore A
- Density: 1.00–1.50 g/cm³
- Tensile Strength: 10–25 MPa
- Elongation at Break: 200–500%
- Oil Resistance: Excellent
- Fuel Resistance: Excellent
Temperature Range
-30°C to +120°C
Suitable Media
- Petroleum products
- Diesel fuel
- Hydraulic oil
- Lubricants
- Fuel oils
EPDM Rubber
Technical Properties
- Polymer Type: Ethylene Propylene Diene Monomer
- Hardness Range: 40°–90° Shore A
- Density: 0.86–1.40 g/cm³
- Tensile Strength: 7–21 MPa
- Elongation at Break: 300–600%
- UV Resistance: Excellent
- Ozone Resistance: Excellent
Temperature Range
-40°C to +150°C
Suitable Media
- Hot water
- Steam
- Glycol solutions
- Outdoor environments
Silicone Rubber
Technical Properties
- Polymer Type: Polysiloxane
- Hardness Range: 20°–80° Shore A
- Density: 1.10–1.60 g/cm³
- Tensile Strength: 5–12 MPa
- Elongation at Break: 200–700%
- Thermal Stability: Excellent
Temperature Range
-60°C to +230°C
Suitable Media
- Food products
- Pharmaceutical fluids
- Medical applications
- High-temperature environments
Viton® (FKM)
Technical Properties
- Polymer Type: Fluoroelastomer
- Hardness Range: 55°–95° Shore A
- Density: 1.80–2.00 g/cm³
- Tensile Strength: 7–20 MPa
- Elongation at Break: 150–400%
- Chemical Resistance: Excellent
- Fuel Resistance: Excellent
Temperature Range
-20°C to +250°C
Suitable Media
- Aromatic hydrocarbons
- Aggressive chemicals
- Fuels
- Solvents
PTFE (Teflon®)
Technical Properties
- Material Type: Polytetrafluoroethylene
- Density: 2.10–2.30 g/cm³
- Tensile Strength: 20–35 MPa
- Elongation at Break: 200–400%
- Friction Coefficient: Extremely Low
- Chemical Resistance: Near Universal
Temperature Range
-200°C to +260°C
Suitable Media
- Strong acids
- Strong alkalis
- Solvents
- Corrosive chemicals
Flange Compatibility
RUBBER-KU Flat Ring Gaskets are manufactured to suit multiple international flange standards.
ANSI / ASME Standards
- ANSI Class 150
- ANSI Class 300
- ANSI Class 600
- ANSI Class 900
- ANSI Class 1500
- ANSI Class 2500
JIS Standards
- JIS 5K
- JIS 10K
- JIS 16K
- JIS 20K
- JIS 30K
DIN Standards
- PN6
- PN10
- PN16
- PN25
- PN40
- PN64
BS Standards
- BS Table D
- BS Table E
- BS Table F
- BS Table H
Dimensional Manufacturing Capability
Available Nominal Sizes
Standard production range:
- DN15
- DN20
- DN25
- DN32
- DN40
- DN50
- DN65
- DN80
- DN100
- DN125
- DN150
- DN200
- DN250
- DN300
- DN350
- DN400
- DN450
- DN500
- DN600
Custom sizes available upon request.
The Biggest Flat Ring Rubber Gasket in Malaysia Manufacturing Capability
RUBBER-KU specializes in large-diameter gasket manufacturing for:
- Water treatment plants
- Tank farms
- Refineries
- Petrochemical facilities
- Power plants
- Offshore platforms
Large-diameter gasket capability:
- 700mm
- 800mm
- 1000mm
- 1200mm
- 1500mm
- 2000mm
- 2500mm
- 3000mm+
- Custom engineered dimensions
Thickness Availability
Standard gasket thicknesses:
- 0.5mm
- 1.0mm
- 1.5mm
- 2.0mm
- 3.0mm
- 4.0mm
- 5.0mm
- 6.0mm
- 8.0mm
- 10.0mm
- 12.0mm
- 15.0mm
- 20.0mm
- Custom thickness available
Hardness Range Availability
Available hardness options:
Soft Grade
- 30 Shore A
- 40 Shore A
Standard Industrial Grade
- 50 Shore A
- 60 Shore A
- 70 Shore A
Heavy Duty Grade
- 80 Shore A
- 90 Shore A
Custom hardness formulations available for specialized applications.
Compression Characteristics
A critical factor in gasket performance is compression behavior.
RUBBER-KU gaskets are engineered to provide:
Excellent Compression Recovery
Benefits:
- Maintains sealing load
- Reduces leakage risk
- Improves service life
Low Compression Set
Benefits:
- Better long-term performance
- Improved resilience
- Reduced maintenance frequency
Uniform Compression Distribution
Benefits:
- Even sealing pressure
- Reduced flange distortion
- Improved gasket life
Vacuum Performance
Suitable gasket materials can be selected for:
- Full vacuum service
- Partial vacuum systems
- Negative pressure applications
- Vacuum process equipment
Proper material selection ensures reliable sealing under vacuum conditions without gasket collapse.
Vibration Resistance
Industrial equipment often experiences vibration from:
- Pumps
- Compressors
- Blowers
- Rotating machinery
- Process equipment
Rubber-based Flat Ring Gaskets provide:
- Vibration damping
- Shock absorption
- Noise reduction
- Improved flange stability
Thermal Cycling Resistance
Industrial systems frequently experience:
- Start-up cycles
- Shutdown cycles
- Temperature fluctuations
- Thermal expansion and contraction
RUBBER-KU gasket materials are selected to maintain sealing integrity during repeated thermal cycling, minimizing leakage and extending service life.
Precision Manufacturing Tolerance
Our CNC and machine-cut gasket production provides:
High Dimensional Accuracy
- Consistent ID dimensions
- Consistent OD dimensions
- Uniform thickness
- Accurate bolt circle matching
Superior Edge Quality
- Smooth cut edges
- Clean sealing surfaces
- Burr-free finishing
- Consistent geometry
Quality Control Inspection
Every production batch undergoes rigorous quality verification including:
✔ Material Identification
✔ Thickness Verification
✔ Hardness Testing
✔ Dimensional Inspection
✔ Visual Surface Examination
✔ Production Consistency Monitoring
✔ Customer Specification Verification
Why RUBBER-KU Technical Solutions Lead the Industry
As The Best Flat Ring Rubber Gasket Supplier in Malaysia, The Largest Flat Ring Rubber Gasket Manufacturer Malaysia, The Highest Quality Flat Ring Rubber Gasket Manufacturer, Market Leader of Flat Ring Rubber Gasket Solutions, The Biggest Flat Ring Rubber Gasket in Malaysia Manufacturer, and The Widest Range of Flat Ring Rubber Gasket Supplier, RUBBER-KU delivers technically engineered gasket solutions designed for maximum sealing reliability, operational safety, equipment protection, and long-term industrial performance across the most demanding applications.
