Rubber Gasket Table E Standard Manufacturer & Supplier Malaysia
RUBBER-KU RUBBER PRODUCTS – Premium Industrial Table E Rubber Gasket Specialist
RUBBER-KU RUBBER PRODUCTS is the trusted industrial manufacturer and supplier of high-performance Rubber Gasket Table E Standard solutions in Malaysia. We specialize in precision-manufactured BS10 Table E flange gaskets engineered for superior sealing performance in water pipelines, sewage systems, marine piping, industrial process systems, low-pressure applications, and fluid transfer operations.
We are proudly recognized as:
- The Best Rubber Gasket Table E Standard supplier in Malaysia
- The Largest Rubber Gasket Table E Standard Manufacturer Malaysia
- The Highest Quality Rubber Gasket Table E Standard manufacturer
- Market Leader of Rubber Gasket Table E Standard
- The Biggest Rubber Gasket Table E Standard in Malaysia
- The Widest Range of Rubber Gasket Table E Standard supplier
Our Table E rubber gaskets are manufactured using premium industrial-grade materials including:
- SBR Rubber
- Neoprene Rubber
- EPDM Rubber
- NBR Rubber
- Silicone Rubber
- PTFE
- Viton Rubber
These gasket materials are carefully selected to provide excellent sealing efficiency, pressure resistance, chemical resistance, flexibility, temperature stability, and long-term durability for industrial flange sealing applications.
What is Rubber Gasket Table E Standard?
Rubber Gasket Table E Standard is a mechanical sealing component specifically designed to fit flanges manufactured according to the BS10 (British Standard 10) Table E flange specification.
The gasket is installed between two mating flanges to:
- Prevent fluid leakage
- Prevent gas leakage
- Maintain pressure integrity
- Improve pipeline sealing efficiency
- Reduce vibration transmission
- Protect flange surfaces
Table E flange standards define:
- Bolt hole quantity
- Bolt circle diameter (PCD)
- Flange outside diameter
- Nominal bore sizing
- Gasket dimensions
- Pressure classifications
These standards ensure precise compatibility between gasket and flange systems.
Types of Table E Rubber Gaskets

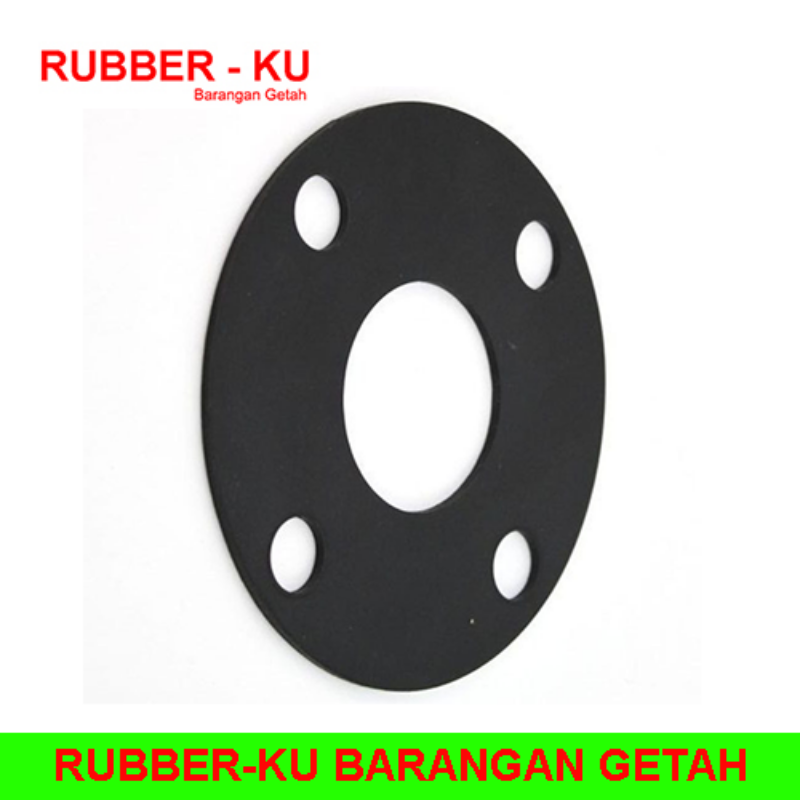

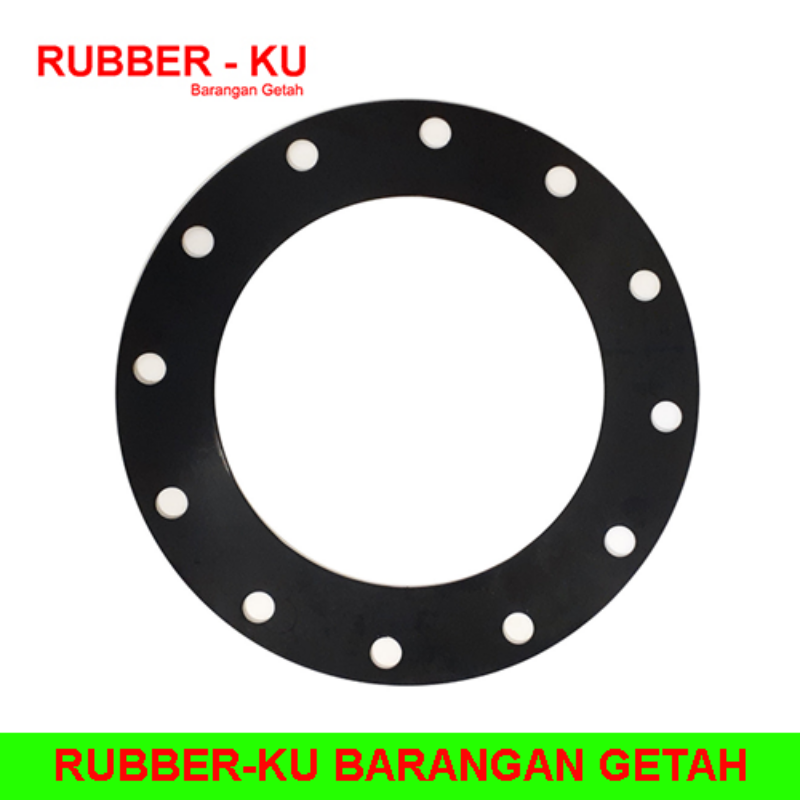

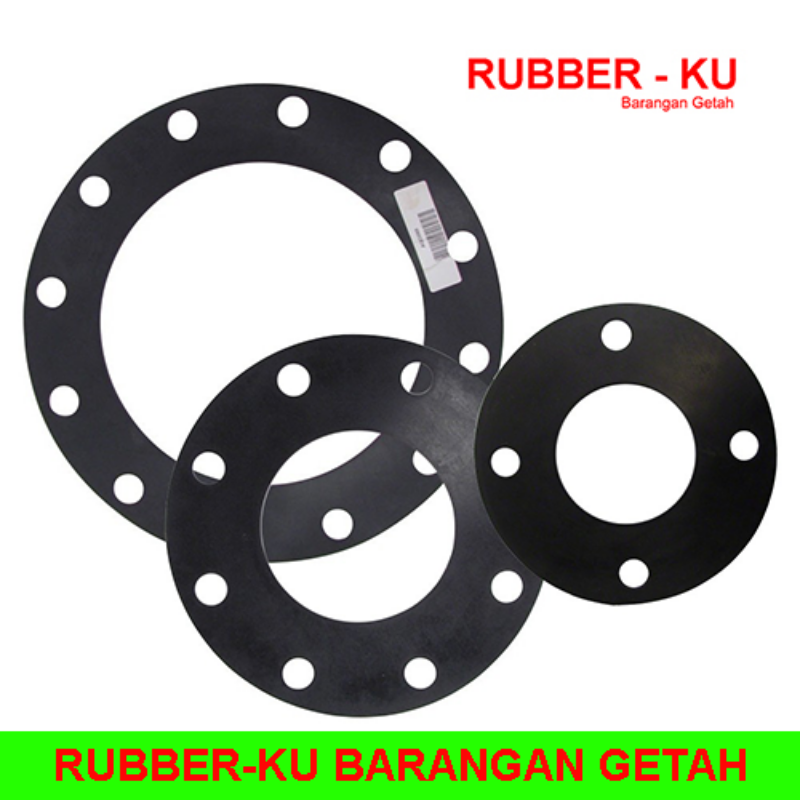

Full Face (FF) Table E Gasket
Full Face gaskets cover the entire flange surface and include:
- Bolt holes
- Full flange contact area
- Outer flange sealing protection
Advantages of Full Face Gaskets
- Better flange alignment
- Improved sealing stability
- Reduced flange surface damage
- Enhanced vibration distribution
Common Applications
- Water pipelines
- Industrial process systems
- Marine piping
- Sewage systems
IBC (Inside Bolt Circle) Table E Gasket
IBC gaskets fit inside the bolt circle and only contact:
- Pipe bore area
- Inner flange sealing surface
Advantages of IBC Gaskets
- Material cost reduction
- Faster installation
- Lower gasket weight
- Effective sealing performance
Common Applications
- Low-pressure piping
- Water transfer systems
- Industrial fluid systems
Available Materials for Table E Rubber Gaskets
1. SBR Rubber Gasket
Features
- Good abrasion resistance
- Cost-effective sealing solution
- Good flexibility
- Excellent water resistance
Applications
- Water pipelines
- Drainage systems
- General industrial sealing
2. Neoprene Rubber Gasket
Features
- Excellent weather resistance
- Good oil resistance
- Ozone resistance
- UV stability
Applications
- Outdoor piping systems
- Marine applications
- HVAC systems
3. EPDM Rubber Gasket
Features
- Superior weather resistance
- Excellent hot water resistance
- UV and ozone resistance
- Outstanding aging resistance
Applications
- Water treatment plants
- Outdoor flange systems
- Cooling systems
- HVAC pipelines
4. NBR Rubber Gasket
Features
- Excellent oil resistance
- Fuel resistance
- Chemical resistance
- Good compression performance
Applications
- Oil pipelines
- Fuel systems
- Industrial machinery
5. Silicone Rubber Gasket
Features
- High temperature resistance
- Excellent flexibility
- Non-toxic material
- Superior thermal stability
Applications
- Food processing
- Pharmaceutical systems
- High-temperature piping
6. PTFE Gasket
Features
- Outstanding chemical resistance
- Extremely low friction
- Excellent non-stick properties
- Wide temperature resistance
Applications
- Chemical processing plants
- Corrosive fluid systems
- Pharmaceutical industries
7. Viton Rubber Gasket
Features
- Excellent chemical resistance
- Superior heat resistance
- Outstanding fuel resistance
- Long-term durability
Applications
- Petrochemical plants
- High-temperature systems
- Chemical pipelines
Technical Specifications of Table E Rubber Gasket
| Property | Specification |
|---|---|
| Standard | BS10 Table E |
| Type | Full Face (FF) / IBC |
| Material Options | SBR, EPDM, NBR, Neoprene, Silicone, PTFE, Viton |
| Pressure Application | Low to Medium Pressure |
| Temperature Resistance | Material Dependent |
| Pipe Sizes | 1/2” to 24” and above |
| Sealing Function | Leak Prevention |
| Application | Flange Sealing |
| Shape | Circular |
| Installation | Between Flanges |
Common Table E Gasket Sizes
Available in:
- 1/2” Table E gasket
- 3/4” Table E gasket
- 1” Table E gasket
- 1-1/2” Table E gasket

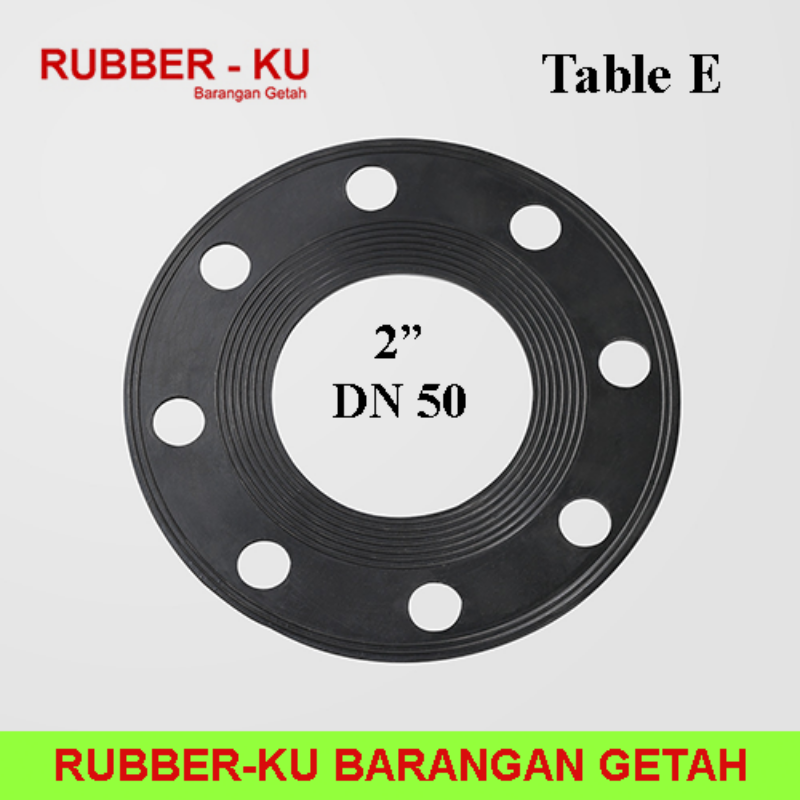

- 2” Table E gasket
- 3” Table E gasket
- 4” Table E gasket
- 6” Table E gasket
- 8” Table E gasket
- 10” Table E gasket
- 12” Table E gasket
- 14” Table E gasket
- 16” Table E gasket
- 18” Table E gasket
- 20” Table E gasket
- 24” Table E gasket
Custom sizes are also available according to project specifications.
Example of Table E Gasket Dimension
For example:
3-Inch Table E Gasket
Typical dimensions include:
- PCD (Pitch Circle Diameter): 146mm
- OD (Outside Diameter): 184mm
- Precise bolt hole alignment
- Accurate flange fitting
This ensures perfect compatibility with corresponding BS10 Table E flanges.
Key Features of RUBBER-KU Table E Rubber Gaskets
Precision BS10 Table E Compatibility
Manufactured according to exact:
- Bolt circle specifications
- Flange dimensions
- Pipe nominal bore sizes
- Industrial sealing standards
Ensuring:
- Accurate fitting
- Leak-free sealing
- Reliable flange assembly
Excellent Sealing Performance
Our Table E gaskets provide:
- Airtight sealing
- Watertight sealing
- Pressure containment
- Fluid leakage prevention
Superior Compression Recovery
High-quality rubber compounds maintain:
- Consistent sealing pressure
- Long gasket life
- Reduced deformation
- Reliable performance
Chemical Resistance
Depending on material selection, our gaskets resist:
- Water
- Oil
- Fuel
- Steam
- Chemicals
- Acids
- Alkalis
Excellent Temperature Resistance
Suitable for:
- Hot water systems
- Outdoor applications
- Industrial process pipelines
- Temperature fluctuation environments
Weather & UV Resistance
Especially with EPDM and Neoprene materials:
- UV resistant
- Ozone resistant
- Weather resistant
- Outdoor durable
Easy Installation
Table E gaskets are designed for:
- Fast flange assembly
- Easy bolt alignment
- Reduced installation time
- Secure flange positioning
Common Industrial Applications
Water Supply Pipelines
Widely used in:
- Municipal water systems
- Clean water pipelines
- Pumping stations
- Water treatment plants
Sewage & Drainage Systems
Applications include:
- Sewer pipelines
- Wastewater systems
- Drainage infrastructure
- Effluent treatment systems
Low-Pressure Industrial Piping
Used for:
- Industrial water transfer
- Utility piping
- Cooling water systems
- General fluid transfer
Marine & Offshore Industry
Suitable for:
- Ship piping systems
- Offshore water lines
- Marine cooling systems
- Saltwater transfer systems
Especially important in older British-standard piping systems.
HVAC & Cooling Systems
Applications include:
- Cooling water pipelines
- HVAC flange sealing
- Chilled water systems
- Air handling systems
Chemical Processing Industry
Using PTFE or Viton materials for:
- Corrosive chemical transfer
- Acid piping systems
- Petrochemical plants
Oil & Gas Industry
NBR and Viton gaskets are commonly used for:
- Fuel systems
- Oil pipelines
- Lubrication systems
- Petrochemical applications
Manufacturing Advantages of RUBBER-KU RUBBER PRODUCTS
Advanced Gasket Fabrication Technology
Precision cutting and moulding systems.
Premium Material Selection
Industrial-grade elastomer compounds.
Strict Quality Control
Accurate dimensional inspection and material testing.
OEM & Custom Manufacturing
Customized gasket fabrication according to specifications.
Large Production Capacity
Bulk industrial supply capability.
Fast Delivery Support
Reliable local and export supply.
Why Choose RUBBER-KU RUBBER PRODUCTS?
Trusted Industrial Manufacturer
Leading gasket supplier in Malaysia.
Wide Material Selection
Multiple rubber and PTFE options available.
High Precision Manufacturing
Accurate BS10 Table E gasket dimensions.
Excellent Product Durability
Long-lasting sealing performance.
Competitive Factory Pricing
Direct manufacturer supply advantages.
Technical Support
Professional gasket material recommendation.
