Product Description

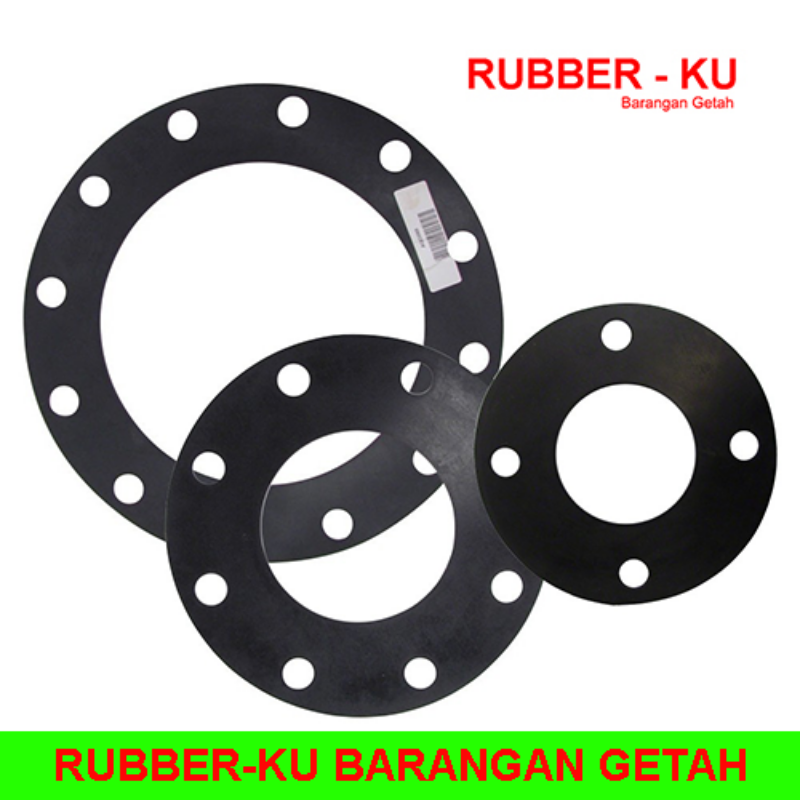

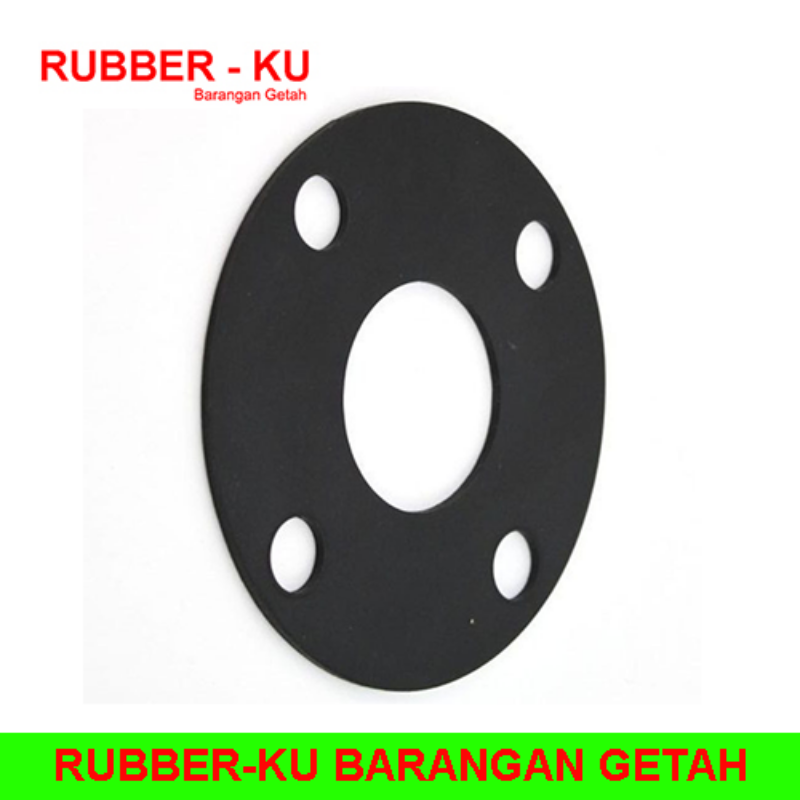

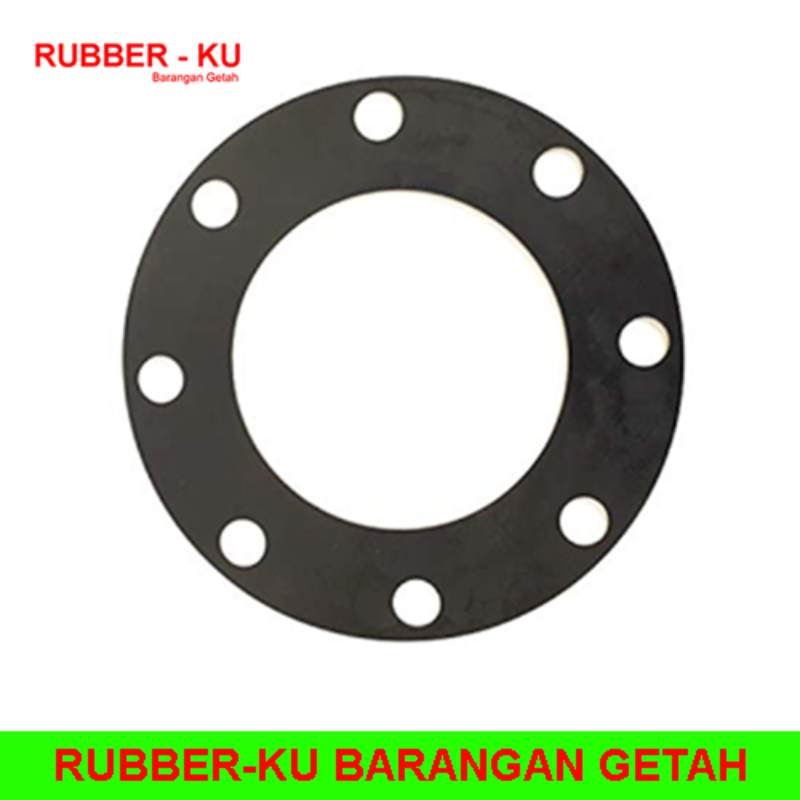

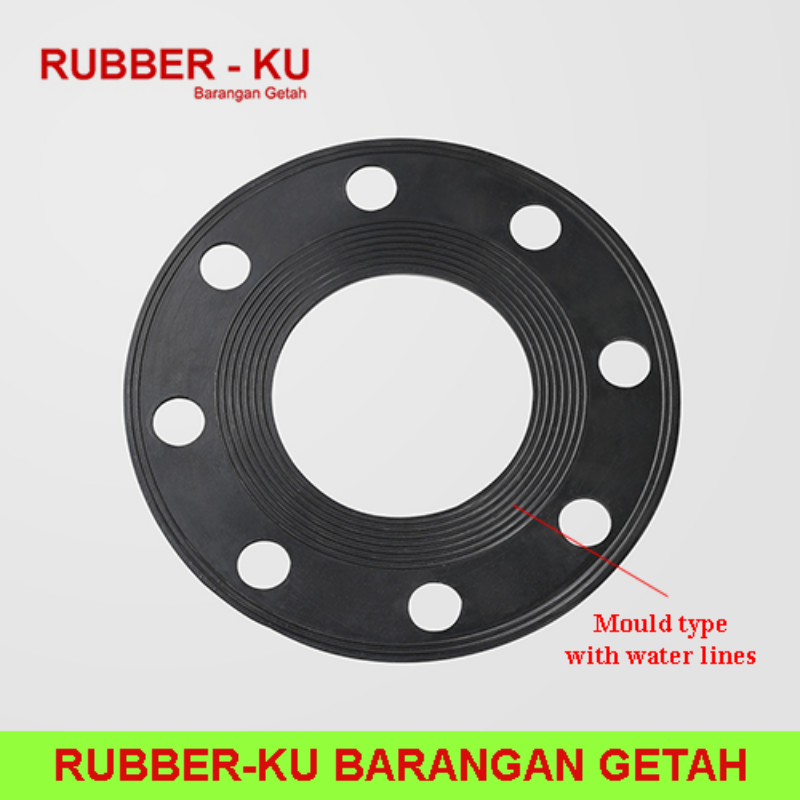

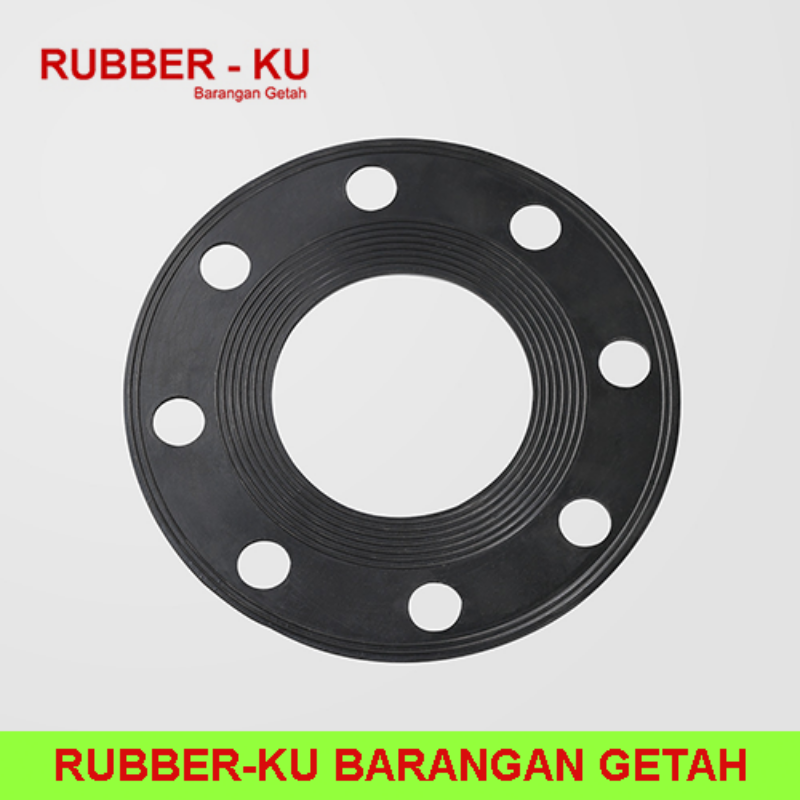

EPDM Full Face Gasket | EPDM Flat Gasket | EPDM Rubber Flange Gasket | EPDM Sheet Gasket | EPDM Cut Gasket
EPDM Rubber Gasket Supplier Malaysia | Industrial EPDM Flange Gasket Manufacturer | Premium Water, Steam & Weather Resistant Sealing Solutions
RUBBER-KU RUBBER PRODUCTS – High Performance EPDM Rubber Gaskets for Industrial, Commercial and Infrastructure Applications
RUBBER-KU RUBBER PRODUCTS is a leading supplier and manufacturer of premium-quality EPDM Rubber Gaskets engineered for superior sealing performance in water, steam, HVAC, construction, municipal, chemical processing, and industrial piping systems. Manufactured from high-grade Ethylene Propylene Diene Monomer (EPDM) elastomer, our gaskets provide exceptional resistance to weathering, ultraviolet radiation, ozone exposure, hot water, steam, aging, oxidation, and a broad range of industrial chemicals.
Designed for long-term reliability, RUBBER-KU EPDM Rubber Gaskets create a highly effective leak-proof seal between mating flange surfaces, helping prevent fluid loss, pressure drops, equipment damage, environmental contamination, and costly operational downtime.
Available in sizes ranging from DN15 to DN600, our EPDM flange gaskets are suitable for a wide variety of flange standards, industrial piping systems, mechanical equipment, pumps, valves, tanks, heat exchangers, water treatment facilities, and infrastructure projects.
What is an EPDM Rubber Gasket?
An EPDM Rubber Gasket is a precision-engineered sealing component manufactured from Ethylene Propylene Diene Monomer, a synthetic rubber renowned worldwide for its outstanding environmental resistance and long service life.
The primary function of an EPDM gasket is to create a compression seal between two surfaces, preventing the escape of liquids, gases, steam, or process media under varying operating pressures and temperatures.
Unlike ordinary rubber materials that can crack, harden, shrink, or deteriorate when exposed to sunlight, ozone, moisture, and temperature fluctuations, EPDM remains flexible and resilient for many years, making it one of the most trusted gasket materials in industrial sealing applications.
EPDM is widely regarded as the preferred gasket material for water-based systems due to its exceptional resistance to hot water, steam, weather, and atmospheric aging.
Available Sizes
RUBBER-KU EPDM Rubber Gaskets are available in:
DN15 • DN20 • DN25 • DN32 • DN40 • DN50 • DN65 • DN80 • DN100 • DN125 • DN150 • DN200 • DN250 • DN300 • DN400 • DN450 • DN500 • DN600
Custom sizes, special dimensions, non-standard flange patterns, and bespoke sealing solutions are available upon request.
EPDM Material Technology
Ethylene Propylene Diene Monomer Structure
EPDM is produced through the polymerization of:
- Ethylene
- Propylene
- Diene Monomer
This unique molecular structure creates a highly saturated polymer backbone that provides extraordinary resistance against environmental degradation.
The result is a sealing material capable of maintaining its physical properties even after prolonged exposure to harsh industrial and outdoor conditions.
Why Engineers Choose EPDM Rubber Gaskets
Industrial engineers, plant managers, maintenance teams, mechanical contractors, and infrastructure consultants choose EPDM because of its unique combination of performance characteristics:
Exceptional Weather Resistance
Outstanding UV Resistance
Excellent Ozone Resistance
Superior Water Resistance
Hot Water Compatibility
Steam Resistance
Excellent Chemical Resistance
Long Service Life
High Elasticity
Low Compression Set
Thermal Stability
Cost Efficiency
Low Maintenance Requirements
These properties make EPDM one of the most versatile and cost-effective gasket materials available in today's industrial marketplace.
Outstanding Environmental Resistance
Superior Weather Resistance
Weather exposure is one of the most common causes of gasket deterioration.
Many conventional rubber materials gradually fail when subjected to:
- Rain
- Sunlight
- Humidity
- Atmospheric pollution
- Temperature cycling
EPDM was specifically developed to withstand these environmental challenges.
Even after years of outdoor exposure, EPDM maintains:
- Flexibility
- Tensile strength
- Elasticity
- Sealing effectiveness
- Surface integrity
This makes EPDM particularly suitable for outdoor installations and exposed piping systems.
Industry-Leading UV Resistance
Ultraviolet radiation causes many elastomers to:
- Crack
- Harden
- Fade
- Lose elasticity
- Become brittle
EPDM demonstrates exceptional resistance to ultraviolet degradation.
Applications benefiting from this property include:
- Rooftop HVAC systems
- Outdoor pipelines
- Solar energy installations
- Water treatment facilities
- Construction structures
- Utility infrastructure
The material remains stable even under continuous exposure to direct sunlight.
Exceptional Ozone Resistance
Ozone is highly destructive to many rubber compounds.
Ozone attack can cause:
- Surface cracking
- Loss of elasticity
- Seal failure
- Premature aging
EPDM possesses one of the highest ozone resistance ratings among industrial elastomers.
This characteristic dramatically extends gasket service life in outdoor and industrial environments.
Thermal Performance
Wide Operating Temperature Range
RUBBER-KU EPDM Rubber Gaskets perform effectively within temperatures ranging from:
-45°C to +150°C
This wide operating range allows EPDM to function reliably in:
- Cold climates
- Chilled water systems
- Refrigeration equipment
- Hot water systems
- Steam lines
- Industrial processing facilities
Low Temperature Flexibility
At sub-zero temperatures, many rubber materials become rigid and brittle.
EPDM remains flexible and resilient even under freezing conditions.
Benefits include:
- Reduced cracking risk
- Reliable sealing
- Improved safety
- Longer service life
High Temperature Stability
At elevated temperatures, EPDM maintains:
- Elastic recovery
- Compression resistance
- Mechanical strength
- Sealing performance
This makes it highly suitable for:
- Hot water distribution systems
- Steam service
- Heat exchangers
- HVAC equipment
- Industrial utility systems
Exceptional Water Resistance
One of EPDM's greatest strengths is its outstanding compatibility with water-based environments.
Suitable for:
Potable Water
Industrial Water
Process Water
Wastewater
Cooling Water
Demineralized Water
Rainwater Systems
Utility Water Networks
Unlike some elastomers that swell or deteriorate, EPDM maintains dimensional stability and sealing reliability.
Superior Steam Resistance
EPDM exhibits excellent resistance to steam exposure.
Applications include:
- Steam distribution systems
- Sterilization equipment
- Hot condensate systems
- Utility pipelines
- Process equipment
Its ability to withstand steam environments contributes significantly to extended gasket lifespan.
Chemical Resistance Properties
EPDM provides excellent resistance against numerous industrial chemicals.
Compatible with:
Diluted Acids
- Sulfuric Acid
- Hydrochloric Acid
- Nitric Acid
Alkalis
- Sodium Hydroxide
- Potassium Hydroxide
Water Treatment Chemicals
Detergents
Cleaning Solutions
Glycols
Alcohols
Polar Solvents
This versatility allows EPDM gaskets to be used across numerous industrial sectors.
Mechanical Performance Characteristics
Excellent Compression Set Resistance
Compression set refers to a gasket's ability to recover after prolonged compression.
RUBBER-KU EPDM Gaskets provide:
- Low permanent deformation
- Excellent recovery
- Long-term sealing force
- Reduced maintenance requirements
High Elasticity
EPDM exhibits exceptional elasticity.
This enables the gasket to:
- Conform to flange imperfections
- Compensate for vibration
- Absorb movement
- Accommodate thermal expansion
The result is a more reliable and durable seal.
Excellent Tensile Strength
High tensile strength helps the gasket resist:
- Tearing
- Splitting
- Mechanical stress
- Installation damage
This improves both handling safety and operational durability.
Vibration Absorption
Industrial equipment often generates vibration.
EPDM helps absorb:
- Mechanical vibration
- Shock loading
- Thermal movement
This reduces stress on flange connections and improves sealing stability.
Flange Sealing Applications
EPDM Rubber Gaskets are extensively used in:
Pipe Flanges
Pump Connections
Valve Assemblies
Heat Exchangers
Water Treatment Equipment
Storage Tanks
Cooling Towers
Process Pipelines
Utility Systems
Mechanical Equipment
By preventing leaks and maintaining pressure integrity, EPDM gaskets help improve operational efficiency and reduce maintenance costs.
Industries Served
Water Treatment Industry
Used in:
- Municipal treatment plants
- Filtration systems
- Reverse osmosis facilities
- Pumping stations
- Distribution networks
HVAC Industry
Installed in:
- Cooling towers
- Chillers
- Heat exchangers
- Air handling units
- Building services systems
Construction Industry
Used for:
- Curtain wall systems
- Architectural glazing
- Waterproofing systems
- Roofing systems
- Expansion joints
Municipal Infrastructure
Suitable for:
- Public water systems
- Sewer systems
- Utility networks
- Government infrastructure projects
Manufacturing Industry
Widely used in:
- Processing plants
- Utility pipelines
- Production facilities
- Industrial equipment
Automotive Industry
Found in:
- Cooling systems
- Radiator assemblies
- Door seals
- Window seals
- Weather stripping
Important Limitation of EPDM Rubber
Although EPDM excels in water, steam, weather, and chemical applications, it is NOT recommended for:
- Petroleum oils
- Lubricating oils
- Diesel fuel
- Gasoline
- Hydrocarbon solvents
- Mineral oils
Exposure to these substances can result in:
- Swelling
- Softening
- Material degradation
- Premature failure
For oil-resistant applications, NBR (Nitrile) or Viton® gaskets are generally preferred.
Why Choose RUBBER-KU RUBBER PRODUCTS?
RUBBER-KU RUBBER PRODUCTS supplies premium industrial-grade EPDM Rubber Gaskets manufactured for maximum reliability, durability, and sealing efficiency. Our products are trusted by engineers, contractors, maintenance professionals, water treatment operators, HVAC specialists, manufacturers, and infrastructure developers throughout Malaysia and Southeast Asia.
With superior material quality, precision manufacturing, extensive size availability from DN15 to DN600, and custom fabrication capabilities, RUBBER-KU delivers sealing solutions designed to perform in the most demanding industrial environments.
For dependable water sealing, steam sealing, HVAC sealing, infrastructure sealing, and industrial flange sealing applications, choose RUBBER-KU EPDM Rubber Gaskets — the professional choice for long-lasting leak prevention and operational reliability.
