Product Description
ANSI PTFE Gasket | JIS PTFE Gasket | DIN PTFE Gasket | PN16 PTFE Gasket | ASME PTFE Gasket
Full Face PTFE Gasket – Ultimate Industrial Sealing Solution by RUBBER-KU RUBBER PRODUCTS
Premium Quality PTFE / Teflon Full Face Flange Gasket Supplier in Malaysia
RUBBER-KU RUBBER PRODUCTS is a leading manufacturer and supplier of premium quality Full Face PTFE Gaskets designed for industrial piping systems that require exceptional chemical resistance, high temperature stability, superior corrosion protection, and long-term sealing reliability.
Manufactured using high-grade PTFE (Polytetrafluoroethylene), commonly known as Teflon™, our full-face PTFE flange gaskets are engineered to provide superior sealing performance in the most demanding industrial environments including chemical processing plants, oil & gas facilities, pharmaceutical factories, food processing industries, water treatment plants, semiconductor manufacturing, marine engineering, and heavy industrial operations.
The full-face gasket design completely covers the flange surface including bolt holes, ensuring uniform compression distribution, improved sealing efficiency, flange protection, and maximum leak prevention.
RUBBER-KU PTFE Full Face Gaskets are trusted by industrial engineers, maintenance contractors, piping specialists, OEM manufacturers, and industrial plant operators throughout Malaysia and Southeast Asia.

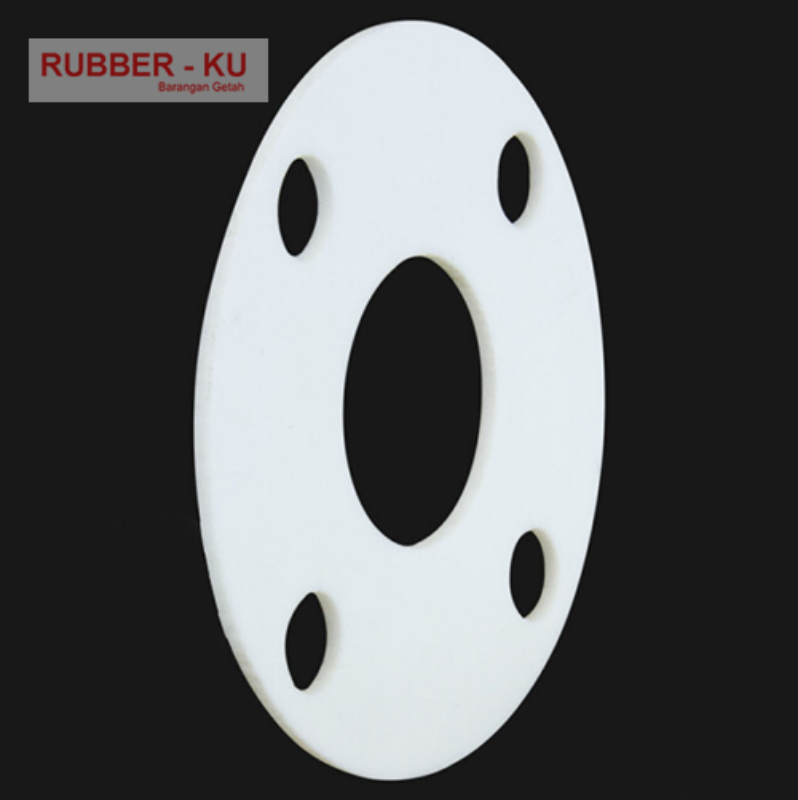

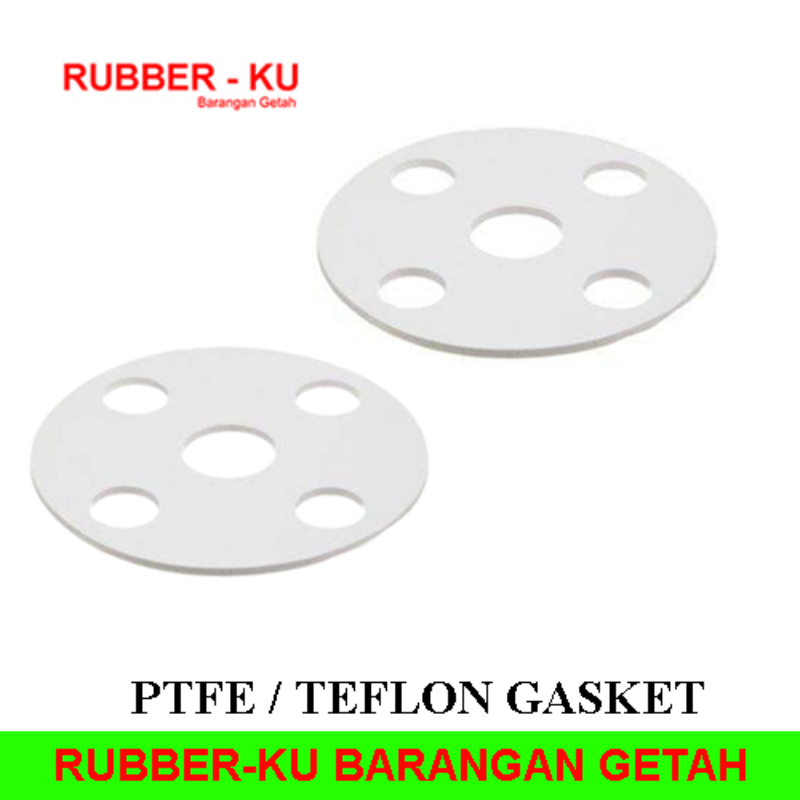

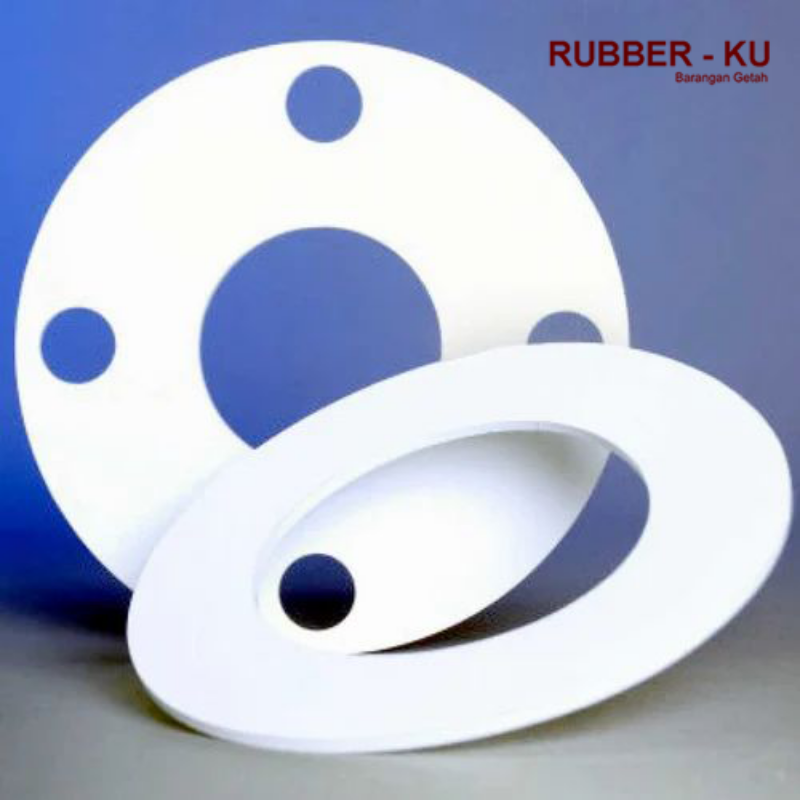

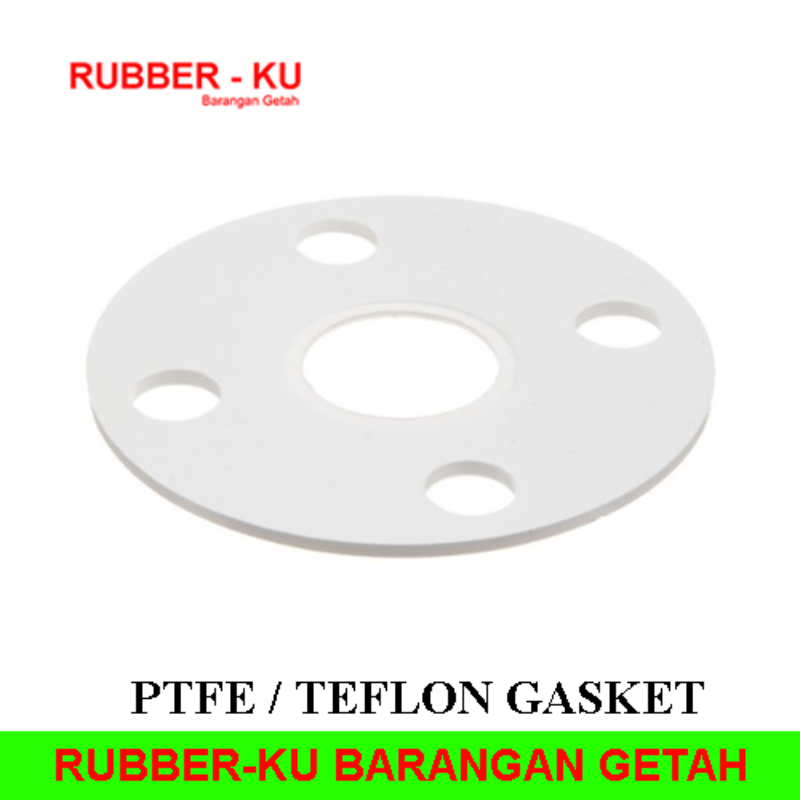

What is a Full Face PTFE Gasket?
A Full Face PTFE Gasket is a precision-engineered industrial flange gasket manufactured from PTFE material and designed to cover the entire face of a flange including all bolt holes.
Unlike conventional ring gaskets that seal only around the pipe bore area, full-face gaskets provide:
- Complete flange surface coverage
- Better compression load distribution
- Improved sealing efficiency
- Enhanced gasket alignment
- Reduced flange stress concentration
- Superior leak prevention
These gaskets are primarily used with flat-face flanges where even sealing pressure across the flange surface is critical.
The bolt holes help hold the gasket securely in position during installation, preventing movement, displacement, and gasket intrusion into the pipe flow path.
Why PTFE (Teflon™) is the Preferred Industrial Gasket Material
PTFE is one of the most advanced fluoropolymer sealing materials available in industrial engineering applications.
Its unique fluorocarbon molecular structure provides:
- Exceptional chemical resistance
- Outstanding temperature stability
- Ultra-low friction
- Excellent non-stick properties
- Superior weather resistance
- Long-term dimensional stability
These properties make PTFE an ideal sealing material for highly corrosive, chemically aggressive, and high-temperature industrial environments.
Advanced Product Features
1. Full Face Flange Coverage Technology
RUBBER-KU Full Face PTFE Gaskets are designed to cover the complete flange surface including bolt holes.
Benefits include:
- Uniform flange compression
- Better sealing performance
- Reduced leakage risk
- Enhanced flange protection
- Improved gasket stability
- Easier installation alignment
- Reduced flange cracking risk
This design is especially effective for flat-face flanges where even bolt load distribution is essential.
2. Outstanding Chemical Resistance
PTFE is virtually chemically inert and resistant to most industrial chemicals.
RUBBER-KU PTFE gaskets provide excellent resistance against:
- Sulfuric acid
- Hydrochloric acid
- Nitric acid
- Caustic soda
- Chlorine
- Solvents
- Industrial chemicals
- Hydrocarbons
- Corrosive fluids
- Oxidizing agents
- Aggressive alkalis
This helps:
- Prevent gasket degradation
- Extend service lifespan
- Reduce maintenance downtime
- Improve plant safety
3. Extreme Temperature Stability
RUBBER-KU PTFE Gaskets maintain reliable sealing performance under extremely wide temperature conditions.
Typical operating range:
−200∘C≤T≤260∘C-200^{\circ}C \leq T \leq 260^{\circ}C−200∘C≤T≤260∘C
This allows PTFE gaskets to operate effectively in:
- Cryogenic systems
- Steam pipelines
- Hot chemical transfer systems
- Thermal processing plants
- High-temperature reactors
4. Superior Corrosion Protection
PTFE provides exceptional resistance against:
- Corrosion
- Oxidation
- Moisture
- Saltwater
- Environmental degradation
- Chemical attack
Suitable for:
- Offshore platforms
- Marine environments
- Outdoor installations
- Chemical processing facilities
5. Ultra-Low Friction Surface
PTFE possesses one of the lowest friction coefficients among industrial materials.
Advantages:
- Easier installation
- Easier gasket removal
- Reduced sticking
- Lower maintenance effort
- Cleaner operation
This non-stick characteristic is critical in:
- Food industries
- Pharmaceutical systems
- Chemical processing equipment
6. Hygienic & Food Grade Properties
Virgin PTFE material is:
- Non-toxic
- Non-contaminating
- Odorless
- Hydrophobic
- Food-grade compatible
Suitable for:
- Food processing plants
- Beverage manufacturing
- Pharmaceutical systems
- Purified water systems
7. Excellent UV & Weather Resistance
PTFE withstands:
- UV exposure
- Ozone attack
- Weather aging
- Outdoor environmental conditions
Ensuring:
- Longer service life
- Reduced material deterioration
- Better outdoor performance
8. Precision CNC Manufacturing
RUBBER-KU PTFE Gaskets are precision fabricated for:
- Accurate flange fitment
- Consistent dimensions
- Precise bolt hole alignment
- Improved sealing contact
This minimizes:
- Installation errors
- Leakage risks
- Uneven compression
Available Sizes
RUBBER-KU Full Face PTFE Gaskets are available in:
- DN15
- DN20
- DN25
- DN32
- DN40
- DN50
- DN65
- DN80
- DN100
- DN125
- DN150
- DN200
- DN250
- DN300
- DN400
- DN450
- DN500
- DN600
Custom sizes and OEM fabrication available upon request.
Flange Standards Supported
Our PTFE gaskets are compatible with multiple international flange standards.

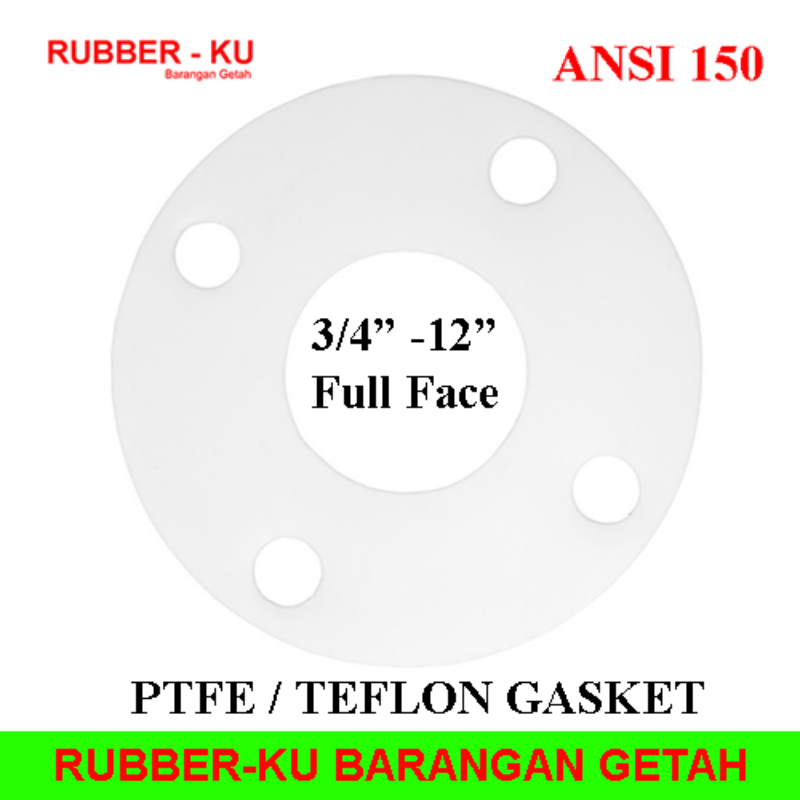

ANSI / ASME Standards
- ANSI 150
- ANSI 300
- ANSI 600
JIS Standards
- JIS 5K
- JIS 10K
- JIS 16K
- JIS 20K
DIN Standards
- PN6
- PN10
- PN16
- PN25
- PN40
British Standards
- Table D
- Table E
- Table F
Technical Specifications
| Property | Specification |
|---|---|
| Material | PTFE / Teflon |
| Product Type | Full Face Flange Gasket |
| Temperature Range | -200°C to +260°C |
| Color | White |
| Chemical Resistance | Excellent |
| UV Resistance | Excellent |
| Water Resistance | Excellent |
| Surface Friction | Very Low |
| Food Grade Compatibility | Yes |
| Electrical Insulation | Excellent |
| Weather Resistance | Excellent |
| Density | Approx. 2.1 – 2.3 g/cm³ |
| Tensile Strength | Approx. 20 – 35 MPa |
| Hardness | Approx. 50 – 65 Shore D |
PTFE Material Types
Virgin PTFE Gasket
Manufactured from pure PTFE resin.
Advantages:
- Highest purity
- Excellent chemical resistance
- Food-grade suitability
- Pharmaceutical compatibility
Applications:
- Pharmaceutical plants
- Food processing
- Semiconductor industries
Expanded PTFE (ePTFE) Gasket
Expanded PTFE offers:
- Better compressibility
- Improved flexibility
- Superior micro-sealing performance
Ideal for:
- Uneven flange surfaces
- Fragile flanges
- Low bolt load systems
Filled PTFE Gasket
Filled PTFE includes reinforcement materials such as:
- Glass fiber
- Carbon
- Graphite
- Bronze
Benefits:
- Improved mechanical strength
- Reduced cold flow
- Better wear resistance
- Higher pressure capability
Understanding PTFE Cold Flow & Creep
PTFE naturally experiences “cold flow” or creep under continuous pressure.
This means the gasket may slowly deform over time when exposed to:
- High pressure
- Elevated temperature
- Continuous bolt load
RUBBER-KU offers solutions including:
- Filled PTFE materials
- Expanded PTFE options
- Proper installation guidance
- Controlled compression recommendations
Industrial Applications
Chemical Processing Industry
Used for:
- Acid pipelines
- Solvent systems
- Chemical reactors
- Corrosive fluid handling
Oil & Gas Industry
Applications include:
- Petrochemical pipelines
- Offshore platforms
- Refinery systems
- Hydrocarbon transfer
Water Treatment Plants
Suitable for:
- Chlorination systems
- Chemical dosing pipelines
- Reverse osmosis systems
- Wastewater treatment
Pharmaceutical Industry
Used in:
- Sterile fluid systems
- Clean room piping
- Purified water systems
- High-purity chemical transfer
Food & Beverage Industry
Applications:
- Dairy processing
- Beverage transfer
- Food-grade fluid handling
- Purified water systems
Semiconductor Industry
Excellent for:
- Ultra-pure chemical systems
- High-purity water transfer
- Clean processing environments
Marine & Offshore Industry
Suitable for:
- Saltwater systems
- Offshore chemical pipelines
- Marine processing systems
Palm Oil Industry
Used in:
- Steam systems
- Chemical dosing lines
- Refinery process systems
Installation Guidelines
Step 1 – Clean Flange Surfaces
Ensure surfaces are:
- Clean
- Smooth
- Rust-free
- Oil-free
Step 2 – Position Gasket Properly
Align:
- Bolt holes
- Pipe bore
- Flange surfaces
Step 3 – Tighten Bolts Gradually
Use cross-pattern tightening for:
- Even compression
- Better sealing performance
- Reduced gasket stress
Step 4 – Avoid Over Compression
Excessive bolt torque may cause:
- PTFE deformation
- Gasket creep
- Reduced seal life
Common Causes of Gasket Failure
Incorrect Material Selection
May cause:
- Chemical attack
- Swelling
- Leakage
Uneven Bolt Tightening
Can result in:
- Compression imbalance
- Seal failure
- Leakage paths
Damaged Flange Surface
May create:
- Poor sealing contact
- Leakage risk
Advantages of RUBBER-KU Full Face PTFE Gaskets
- Exceptional chemical resistance
- High-temperature capability
- Excellent corrosion resistance
- Long service lifespan
- Superior sealing efficiency
- Food-grade compatibility
- Excellent dimensional stability
- Reliable industrial performance
- Precision manufacturing quality
- International flange compatibility
Why Choose RUBBER-KU RUBBER PRODUCTS?
Premium PTFE Materials
High-quality industrial-grade PTFE for reliable sealing performance.
Precision Manufacturing
Accurate dimensions and flange compatibility.
Wide Industrial Experience
Supplying gasket solutions across multiple industries.
Custom Fabrication Support
OEM manufacturing and custom gasket design available.
Fast Delivery & Competitive Pricing
Reliable industrial supply support throughout Malaysia.
Industries That Use RUBBER-KU PTFE Gaskets
- Chemical factories
- Oil refineries
- Petrochemical plants
- Pharmaceutical factories
- Food processing plants
- Water treatment facilities
- Semiconductor industries
- Marine engineering companies
- Industrial piping contractors
- Mechanical engineering firms
- Power generation plants
- Palm oil refineries
